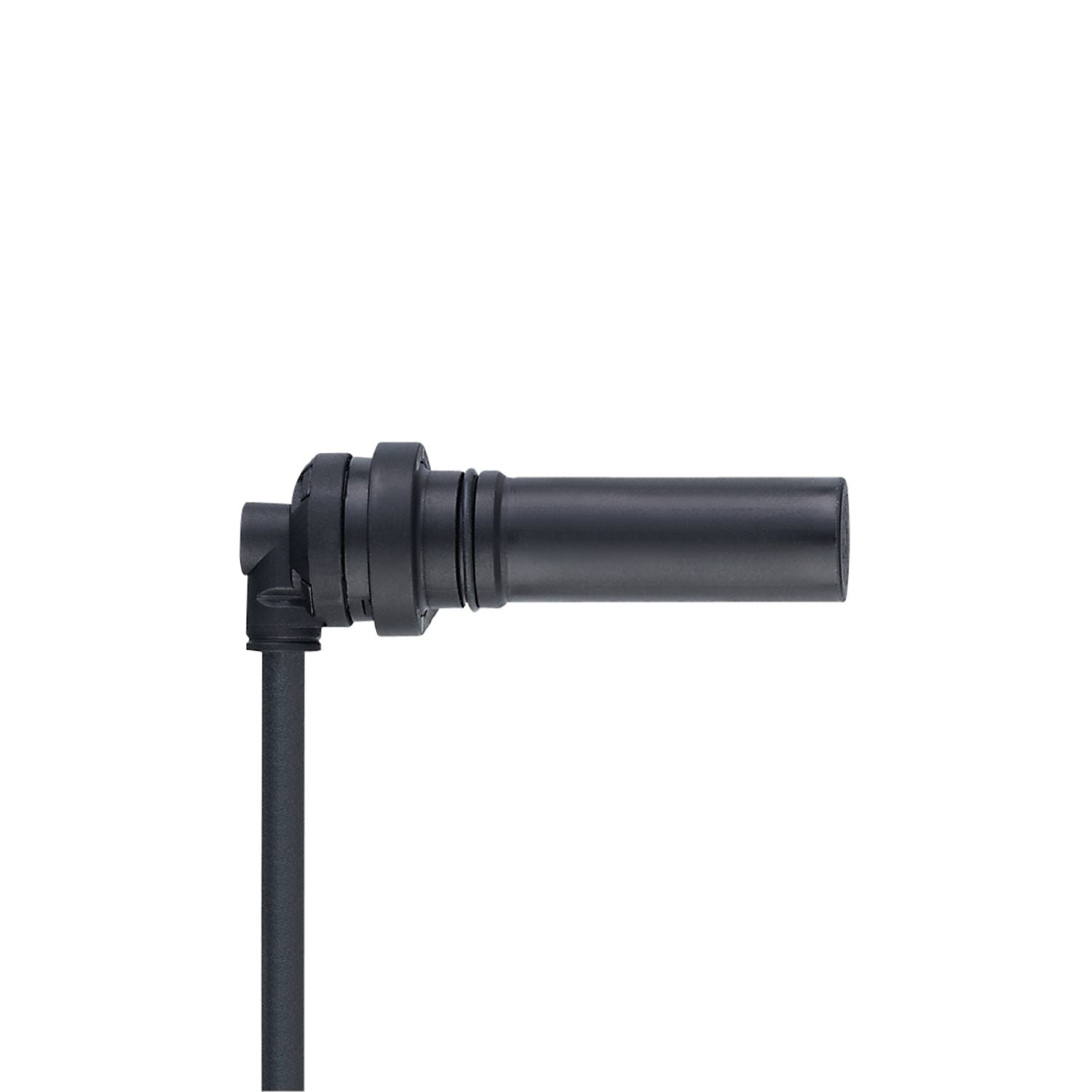

IFM MX5051 - Speed sensor MXD41,7-BPKG/H/ZH

Non-contact detection of metal toothed wheels.
For very high switching frequencies up to 15,000 Hz.
Precise detection of the toothed wheel.
Wide operating temperature range.
Quick installation with flange adapters

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1.7;(Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Dimensions [mm]	Ø 15 / L = 64.5

Operating principle	Hall sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 40
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	50
Short-time current rating of switching output [mA]	50
Switching frequency DC [Hz]	1...15000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	1.7;(Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Real sensing range Sr [mm]	1.7 ± 10 %
Operating distance [mm]	1.38

Operating conditions

Ambient temperature [°C]	-32...85
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V/m EN 61000-4-8 30 A/m EN 55011 0 class B
Shock resistance	DIN EN 60068-2-27 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -10 °C; TB = 70°C; t1 = 60 min; t2 = < 10 s; 20 cycles
Salt spray test	EN 60068-2-52 Kb severity level 5 (4 test cycles)
MTTF [years]	3718

Weight [g]	86.5
Dimensions [mm]	Ø 15 / L = 64.5
Materials	brass; PA; O-ring: FKM
Tightening torque [Nm]	7
Toothed wheel module [mm]	1.25
Installation length [mm]	45

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR

Diagrams and graphs

switching signals	phase shift 90° +/- 20° pulse/pause ratio 50 % +/- 10 % Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.
