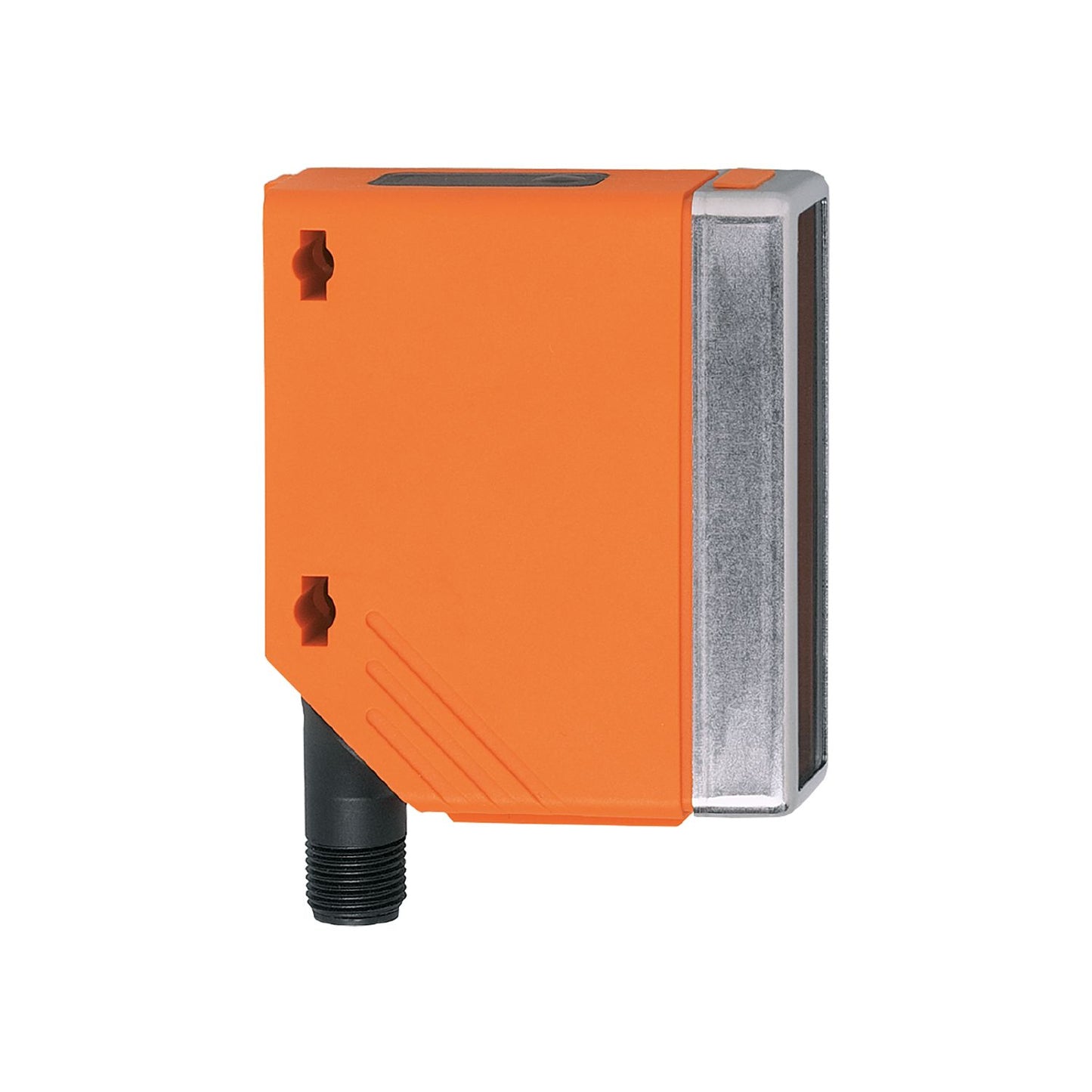

Very long range. Precise background suppression. Intuitive setting of the sensitivity via potentiometer. Robust housing for use in harsh industrial environments. Excellent price/performance ratio
Type of light
red light
Housing
rectangular
Special feature
Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...36 DC;("supply class 2" to cULus)
Current consumption [mA]
25
Protection class
II
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
624
Outputs
Electrical design
PNP
Output function
light-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [mm]
100...2000;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]
100...2000
Range on grey object (18 % remission) [mm]
100...1100
Range on black object (6 % remission) [mm]
100...700
Range adjustable
yes
Max. light spot diameter [mm]
100
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
326
Weight [g]
121.5
Housing
rectangular
Dimensions [mm]
74.4 x 27 x 63.8
Materials
housing: PA; bezel: stainless steel; operator interface: TPE / PC
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
Operating elements
potentiometer
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
