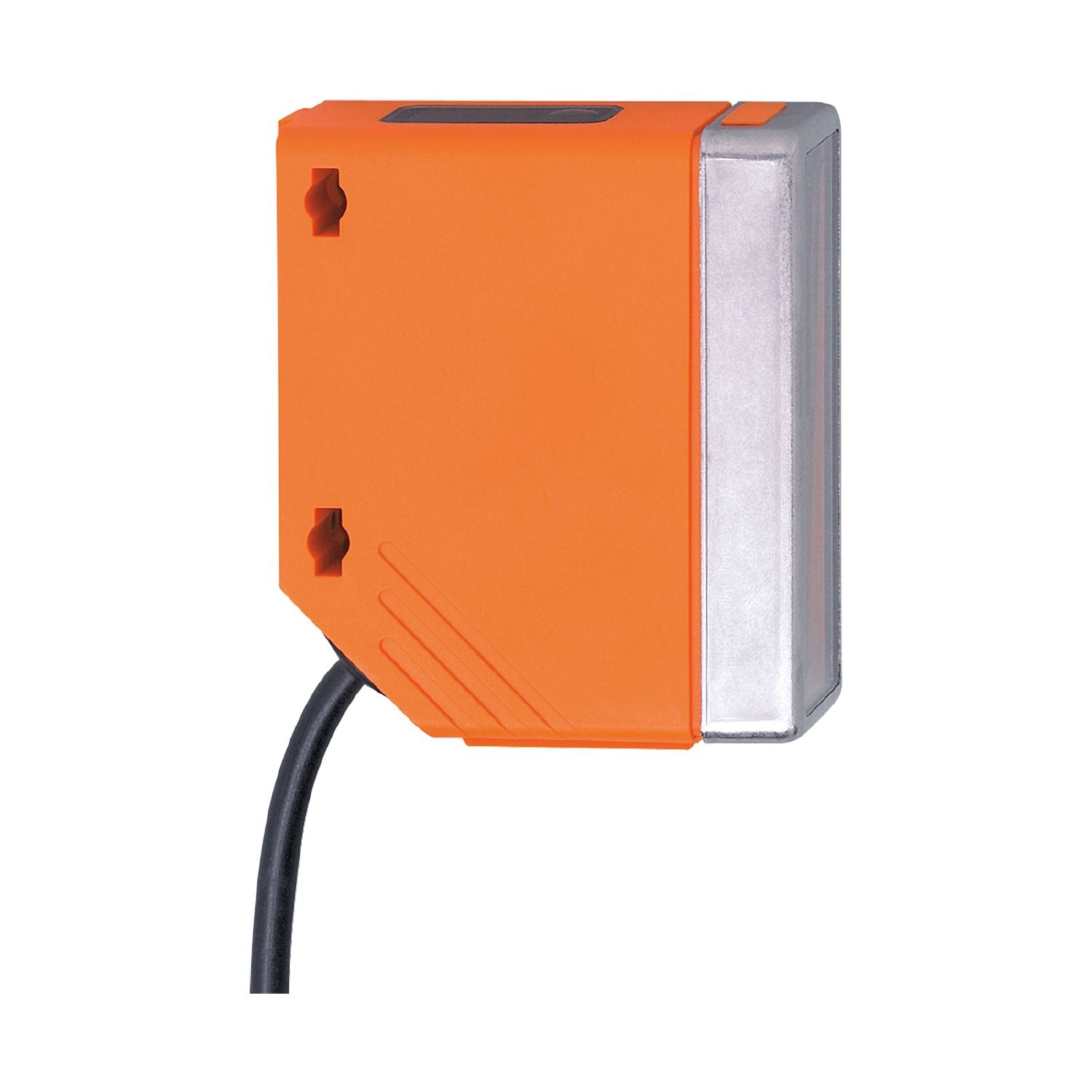

IFM O4S501 - Through-beam sensor transmitter O4S-OOKG/2M

Very long range.
Robust housing for use in harsh industrial environments.
Clearly visible indication of the readiness for operation.
Excellent price/performance ratio.
With connection cable

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	20
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Overload protection	yes

Detection zone

Transmitter / receiver	transmitter
Range [m]	0...80
Range adjustable	no
Max. light spot diameter [mm]	2400
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	616

Weight [g]	205
Housing	rectangular
Dimensions [mm]	74.4 x 27 x 63.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPE
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²

Diagrams and graphs

excess gain graph	x: Abstand [mm] y: Funktionsreservefaktor
