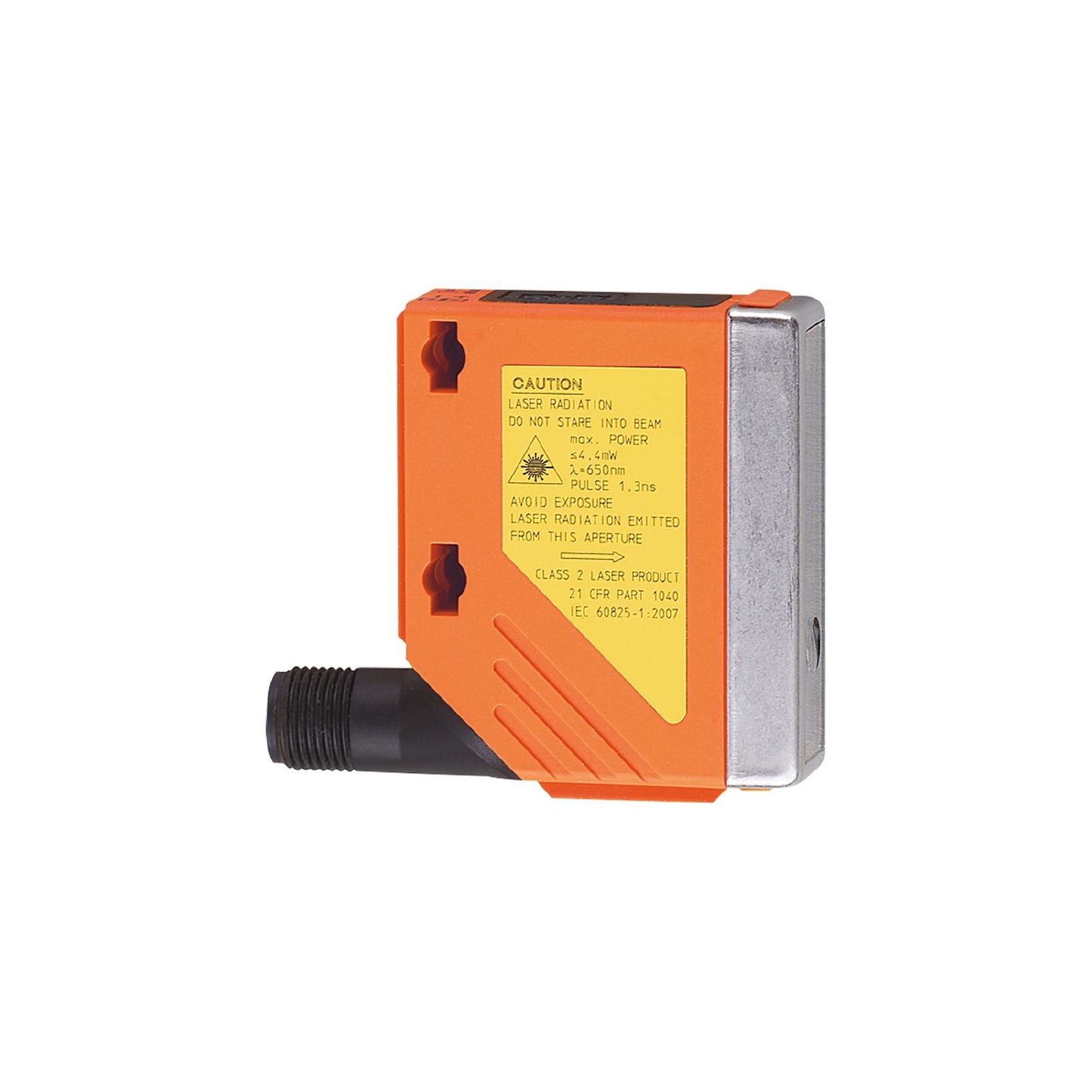

IFM O5D100 - Photoelectric distance sensor O5DLCPKG/US

Very long range due to time-of-flight measurement.
Reliable background suppression and colour-independent detection.
With display and pushbuttons for precise switch point setting.
Oblique angle to the object possible.
Reliable detection of glossy surfaces

Type of light	red light
Laser protection class	2
Housing	rectangular

Special feature	Background suppression

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	75;(24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650
Typ. lifetime [h]	50000

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(complementary)
Max. current load per output [mA]	100
Switching frequency DC [Hz]	11
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Max. light spot diameter [mm]	5
Light spot dimensions refer to	2 m
Detection range hysteresis [%]	< 2.5
Note on monitoring range hysteresis	black 6% remission
Background suppression available	yes
Background suppression [m]	< 20

Measuring/setting range

Measuring range [m]	0.03...2
Sampling rate [Hz]	33

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode	yes
Process data analogue	1
Process data binary	1
Min. process cycle time [ms]	6.6
Supported DeviceIDs	Type of operation DeviceID default 372

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	at ta < -10 °C warm-up is necessary, laser is off
Protection	IP 65; IP 67
Max. immunity to extraneous light [klx]	10;(on the object)

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	2
Notes on laser protection	Caution: laser light Power: <= 4,0 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	151

Weight [g]	61.6
Housing	rectangular
Dimensions [mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU; lens: PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status LED, yellow switching output PIN 4 operation LED, green display alphanumeric display, 3-digit
Display unit	cm

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

hysteresis graph	x: distance [mm] y: Hysteresis [mm] 1 = background black 6% remission 2 = background white 90% remission
