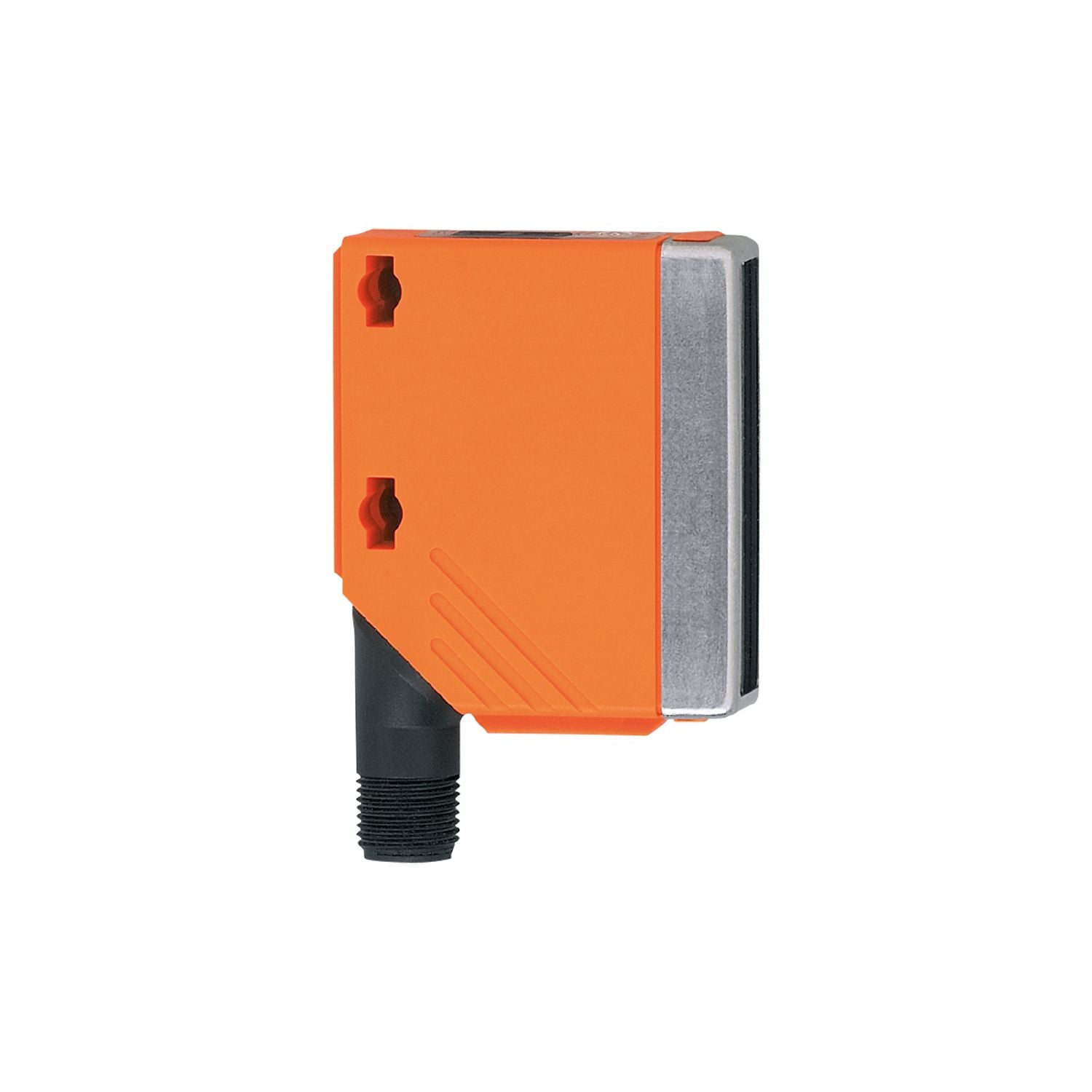

IFM O5G500 - Retro-reflective sensor for the detection of transparent objects O5PGFAKG/US100

Reliable detection of glass, film, PET bottles and transparent packaging.
Automatic switch point adjustment in case of soiling.
High switching frequency for fast processes.
Simple alignment due to visible red light.
Extensive range of fixing components

Type of light	red light
Housing	rectangular

Special feature	polarisation filter; Function check output
Function principle	Retro-reflective sensor

Operating voltage [V]	10...36 DC;("supply class 2" to cULus)
Current consumption [mA]	< 50
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP/NPN;(automatic load detection PNP/NPN)
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Function check output	yes
Max. voltage drop of function check output [V]	2.5
Max. current load for function check output [mA]	50
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range referred to prismatic reflector [m]	0...3;(Prismatic reflector 100 x 100 mm E20454)
Range adjustable	yes
Max. light spot diameter [mm]	80
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	405

Weight [g]	73
Housing	rectangular
Dimensions [mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow function 1 x LED, red
Teach function	yes
Electronic lock	yes

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
