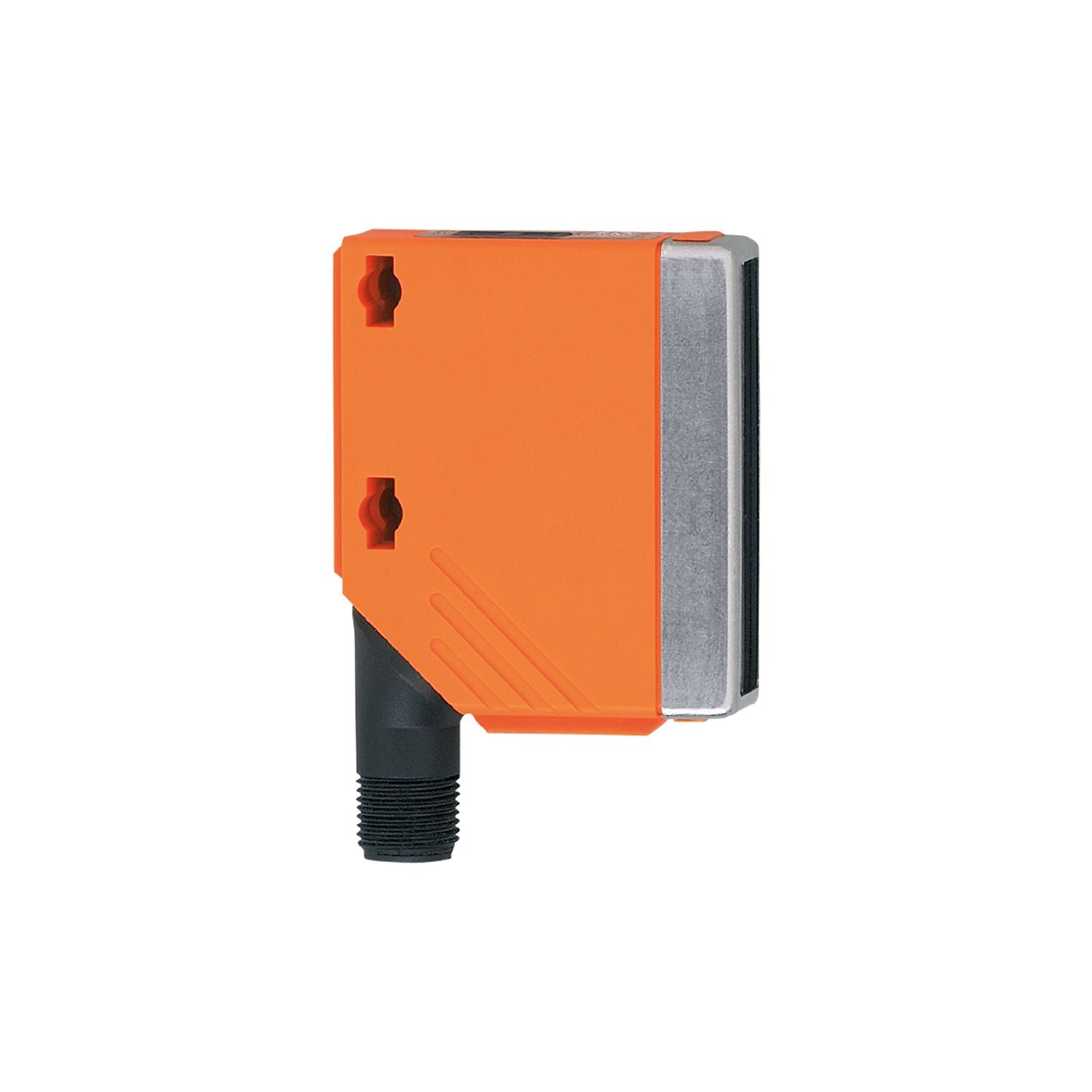

IFM O5H505 - Diffuse reflection sensor with background suppression O5H-CPKG/US100

Very long range.
Precise background suppression.
Sensitivity adjustable via teach buttons.
Robust housing for use in harsh industrial environments.
With green LED (readiness for operation)

Type of light	red light
Housing	rectangular

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...36 DC;("supply class 2" to cULus)
Current consumption [mA]	25
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(complementary)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	50...1800;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]	50...1800
Range on grey object (18 % remission) [mm]	50...900
Range on black object (6 % remission) [mm]	50...600
Range adjustable	yes
Max. light spot diameter [mm]	50
Light spot dimensions refer to	Range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	58.1
Housing	rectangular
Dimensions [mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 LED, yellow Operating voltage 1 LED, green
Teach function	yes
Electronic lock	yes

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

accuracy graph	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , background white (90 % remission) 2 = object grey (18 % remission) ,background white (90 % remission) 3 = object white (90 % remission) ,background white (90 % remission)
