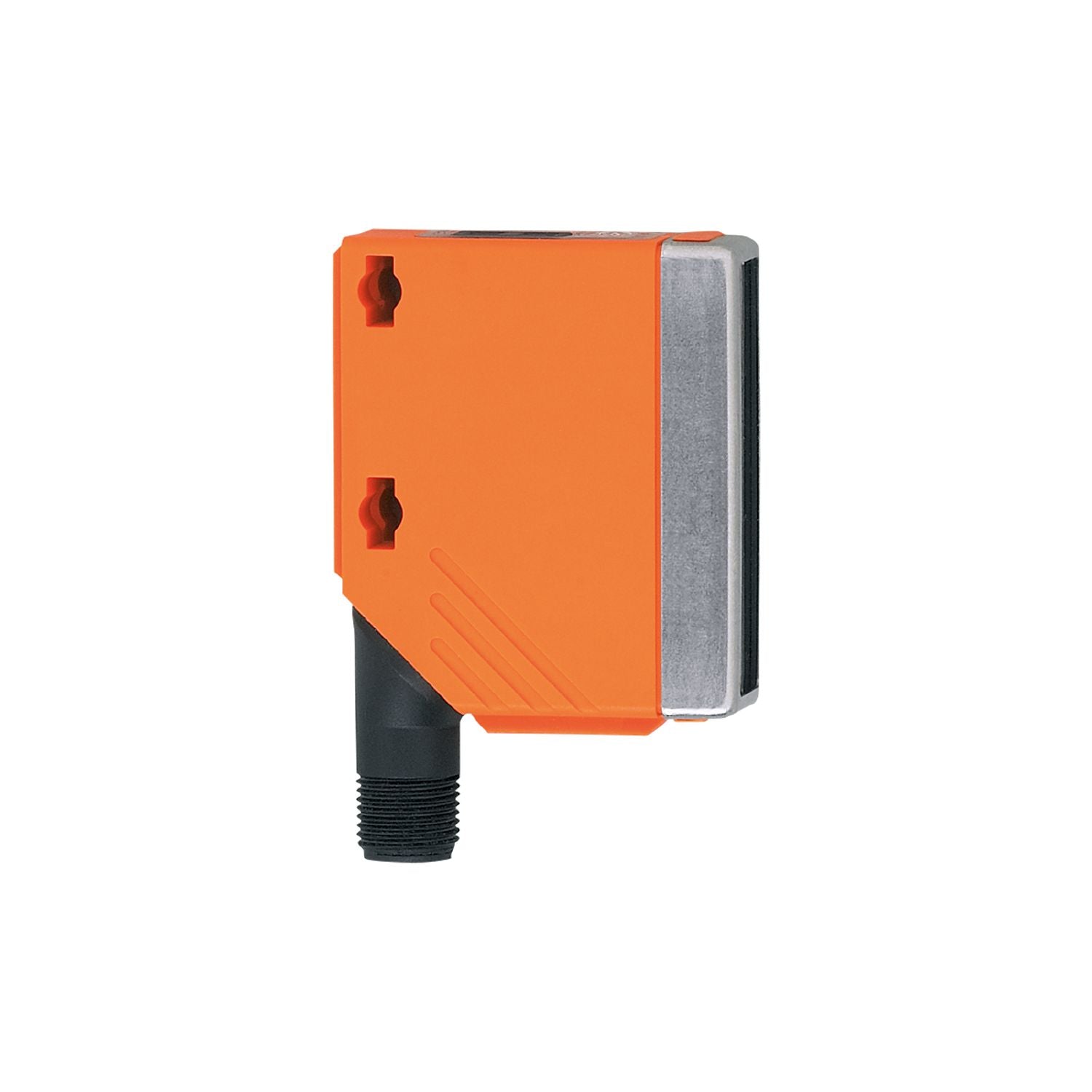

IFM O5S700 - Through-beam laser sensor transmitter O5SLOOKG/US100

Very long range.
Simple alignment due to visible laser light spot.
Extensive range of fixing components.
Robust housing for use in harsh industrial environments.
With connector that can be rotated by 270°

Type of light	red light
Laser protection class	1
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	13
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	655

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 60
Range adjustable	no
Max. light spot diameter [mm]	150
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	1038

Weight [g]	67
Housing	rectangular
Dimensions [mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5S700-01 — 13.04.2023 —
