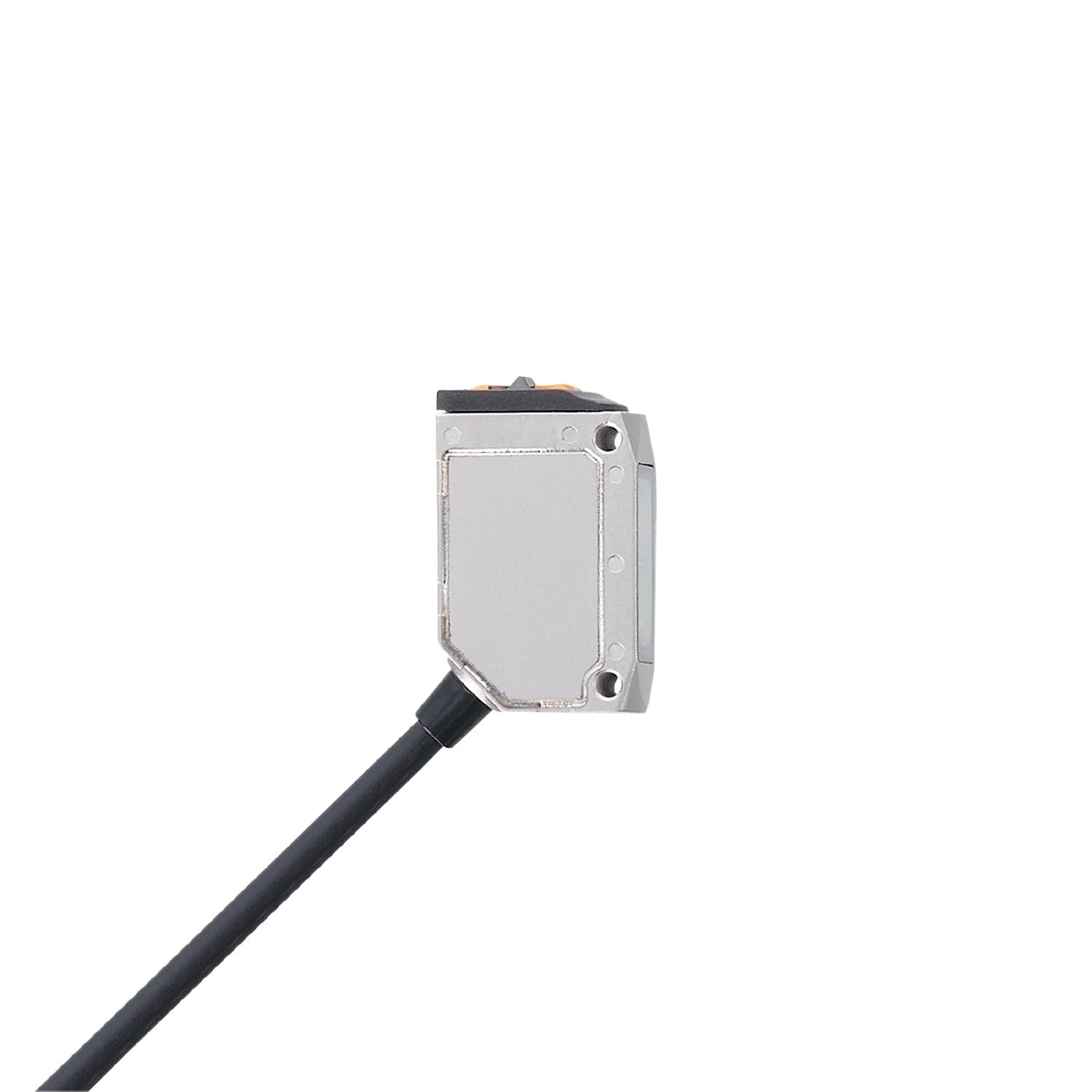

IFM O6E403 - Through-beam sensor receiver O6E-FNKG/5M

Robust stainless steel housing for use in metalworking and in the automotive industry.
Resistant to oils and coolants.
High protection rating for the requirements of harsh industrial environments.
Very long range independent of the object colour.
Intuitive setting of sensitivity and output function

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor
Application	suited for use in the machine tool industry

Operating voltage [V]	10...30 DC
Current consumption [mA]	7;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	NPN
Output function	light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Transmitter / receiver	receiver
Range [m]	< 10
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67; IP 68

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	954
UL approval	UL Approval no. E018

Weight [g]	132.8
Housing	rectangular
Dimensions [mm]	34.8 x 13 x 21
Materials	housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: FKM
Lens material	PMMA
Lens alignment	side lens
Tightening torque [Nm]	1;(screws)

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m, PUR; 3 x 0.25 mm²

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor
