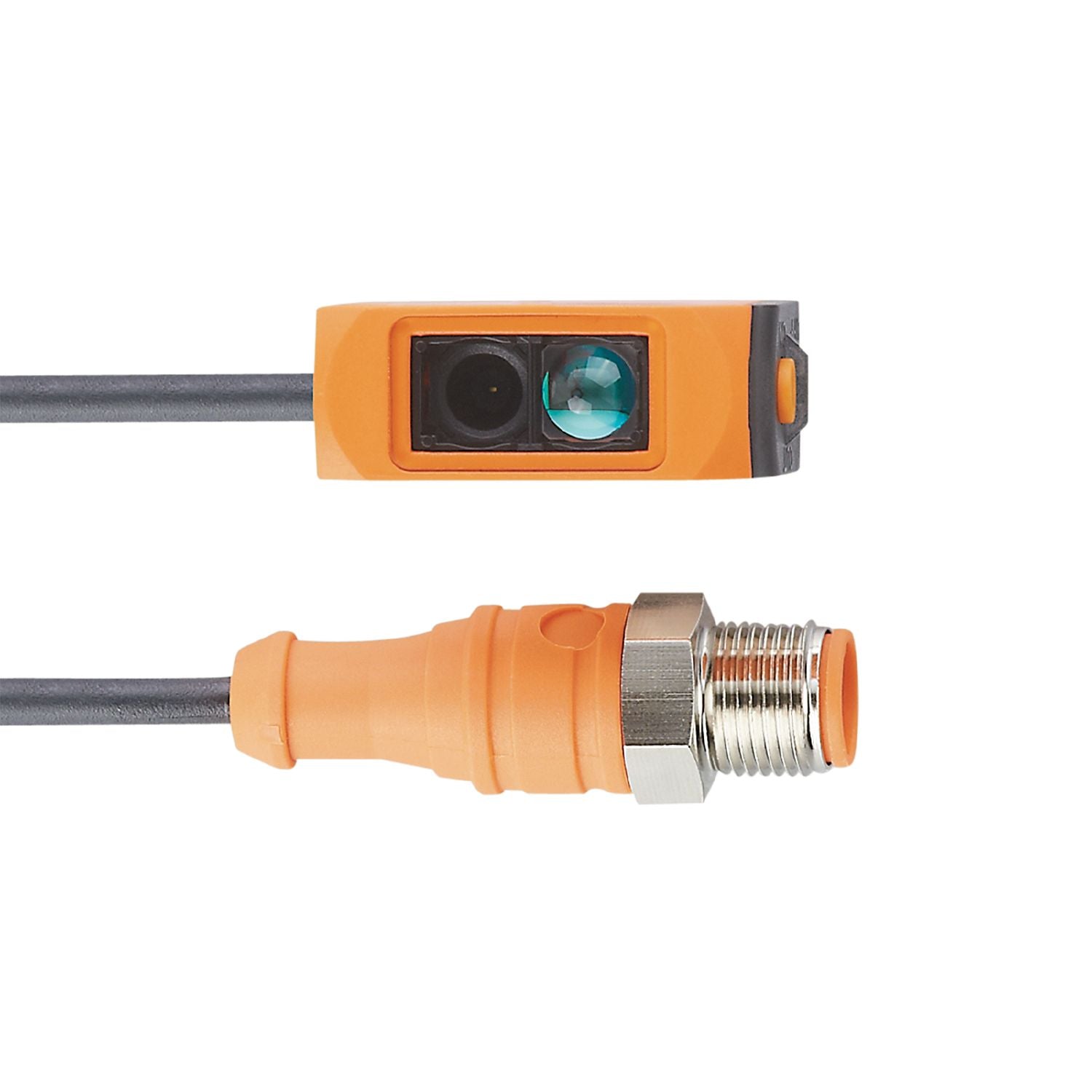

IFM O6E701 - Through-beam sensor receiver O6ELFPKG/0,30m/US

Particularly compact housing for use where space is restricted.
Very long range independent of the object colour.
Intuitive setting of the sensitivity via potentiometer.
User-friendly selection of light-on or dark-on via rotary switch.
Excellent price/performance ratio

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	13;(24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Type of short-circuit protection	pulsed

Detection zone

Transmitter / receiver	receiver
Range [m]	15
Diameter of the smallest detectable object [mm]	7;(15 m)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	2.5
IO-Link process data (cyclical)	function bit length process value 8 device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 524

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1168

Weight [g]	33.3
Housing	rectangular
Dimensions [mm]	35.4 x 13 x 21
Materials	housing: ABS; PPSU; Sealing: EPDM
Lens material	PMMA
Lens alignment	side lens
Tightening torque [Nm]	0.5;(screws)

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm²
Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	x: Abstand [mm] y: Funktionsreservefaktor
