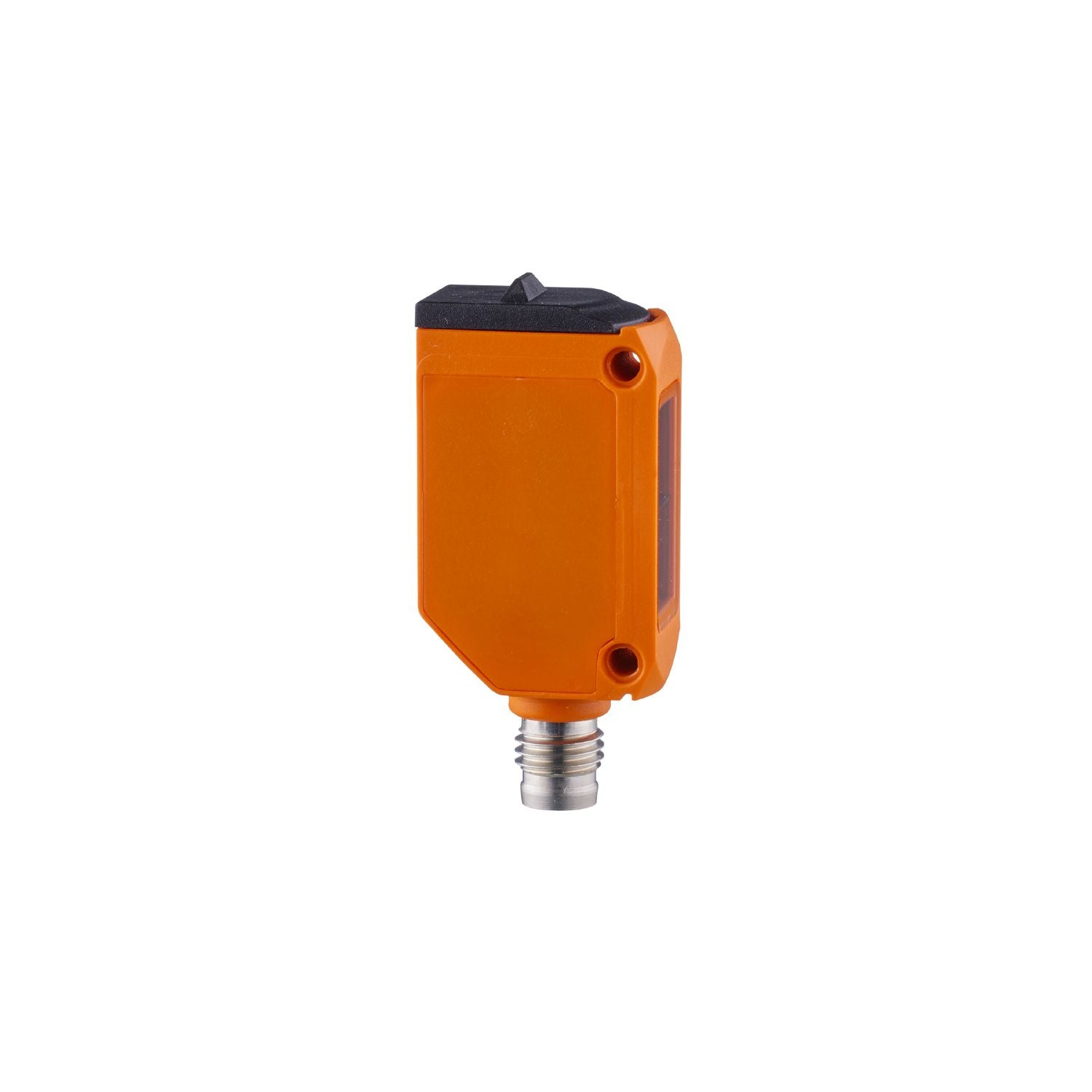

IFM O6H211 - Diffuse reflection sensor with background suppression O6H-HPKG/AS/4P

Particularly compact housing for use where space is restricted.
Ready for operation immediately thanks to fixed setting.
For applications in robotics, assembly and handling technology.
Particularly interference-immune background suppression even with strongly reflecting backgrounds.
Excellent price/performance ratio

Type of light	red light
Housing	rectangular

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	22;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	< 100;(white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]	< 100
Range on grey object (18 % remission) [mm]	4...100
Range on black object (6 % remission) [mm]	8...100
Max. light spot diameter [mm]	6
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1113
UL approval	UL Approval no. E001

Weight [g]	13
Housing	rectangular
Dimensions [mm]	46 x 13 x 21
Materials	housing: ABS; PPSU
Lens material	PMMA
Lens alignment	side lens
Sealing material	EPDM
Tightening torque [Nm]	0.5

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A; Locking: brass, coated; Sealing: EPDM
