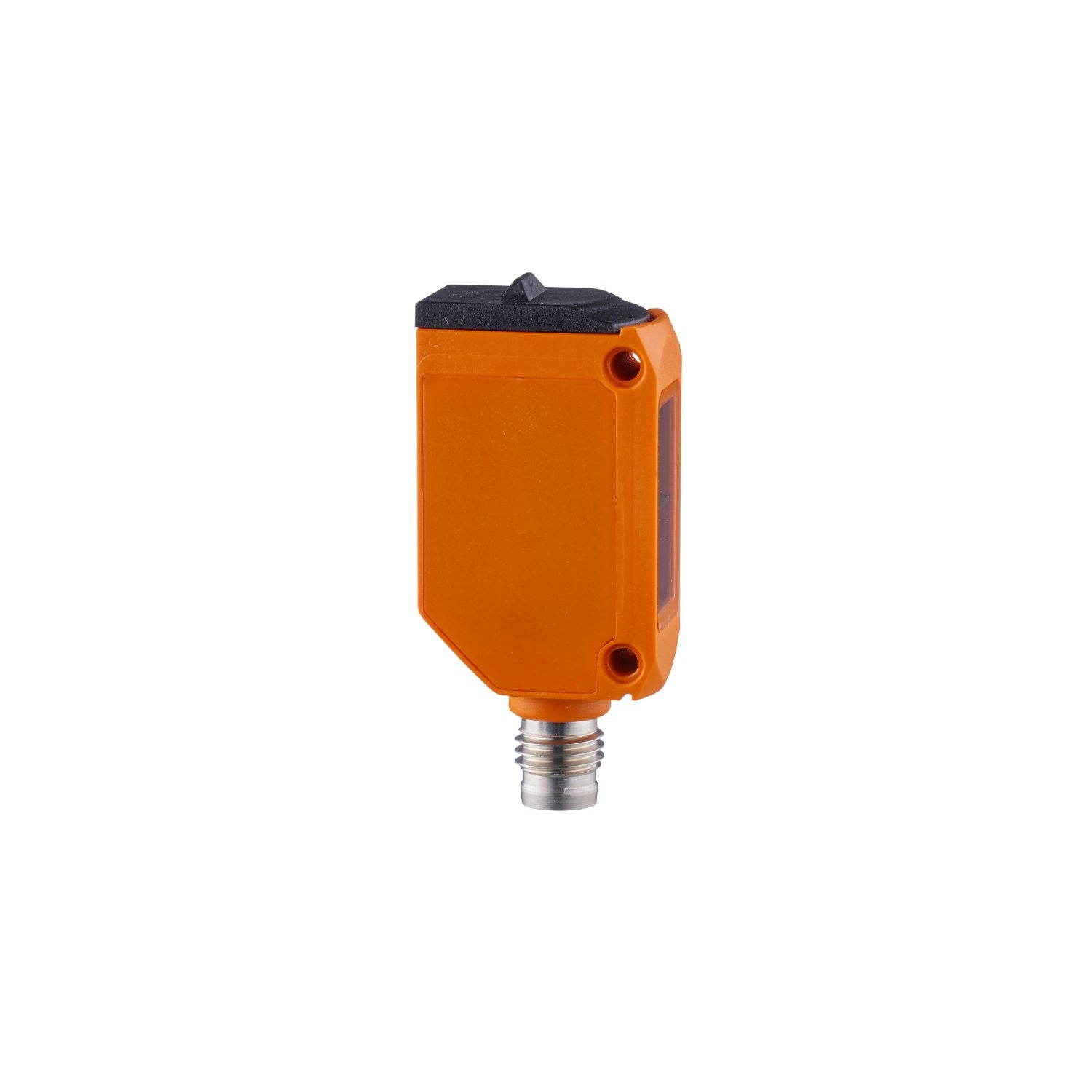

Particularly compact housing for use where space is restricted. Ready for operation immediately thanks to fixed setting. For applications in robotics, assembly and handling technology. Particularly interference-immune background suppression even with strongly reflecting backgrounds. Excellent price/performance ratio
Type of light
red light
Housing
rectangular
Special feature
Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
22;((24 V))
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
633
Outputs
Electrical design
NPN
Output function
light-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Detection zone
Range [mm]
< 200;(white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]
< 200
Range on grey object (18 % remission) [mm]
4...200
Range on black object (6 % remission) [mm]
8...200
Max. light spot diameter [mm]
8
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
1113
UL approval
UL Approval no.
E001
Weight [g]
14.4
Housing
rectangular
Dimensions [mm]
46 x 13 x 21
Materials
housing: ABS; PPSU
Lens material
PMMA
Lens alignment
side lens
Tightening torque [Nm]
0.5
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A; Locking: brass, coated
Diagrams and graphs
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O6H214-00 — 13.04.2023 —
