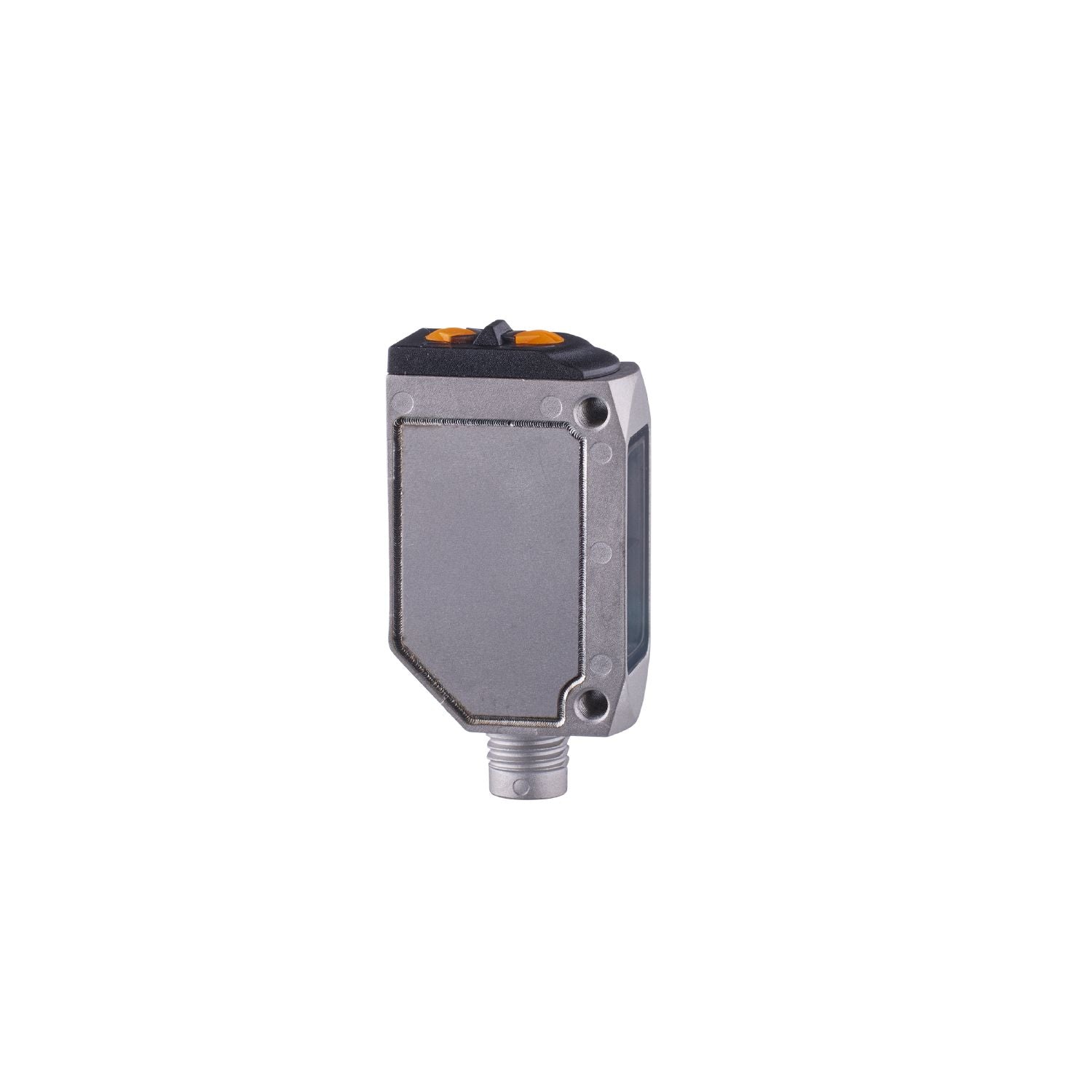

IFM O6H309 - Diffuse reflection sensor with background suppression O6H-FPKG/AS/4P

Robust stainless steel housing for use in the food and beverage industry.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High protection rating for the requirements of harsh industrial environments.
Particularly interference-immune background suppression even with strongly reflecting backgrounds.
Intuitive setting of range and output function

Type of light	red light
Housing	rectangular

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	22;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	2...200;(white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]	2...200
Range on grey object (18 % remission) [mm]	4...200
Range on black object (6 % remission) [mm]	8...200
Range adjustable	yes
Max. light spot diameter [mm]	8
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Binary Data Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	2.5
IO-Link process data (cyclical)	function bit length process value 8 binary switching information 1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 424

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	534
UL approval	UL Approval no. E010

Weight [g]	34.4
Housing	rectangular
Dimensions [mm]	41.3 x 13 x 21
Materials	housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM
Lens material	PMMA
Lens alignment	side lens
Tightening torque [Nm]	1;(screws)

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

accuracy graph	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , background white (90 % remission) 2 = object grey (18 % remission) ,background white (90 % remission) 3 = object white (90 % remission) ,background white (90 % remission)
