Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Detection zone
Range [mm]
1...100;(white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]
1...100
Range on grey object (18 % remission) [mm]
8...100
Range on black object (6 % remission) [mm]
12...100
Range adjustable
yes
Max. light spot diameter [mm]
2
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; Process Data Variable
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
10
IO-Link process data (cyclical)
function
bit length
process value
32
device status
4
binary switching information
1
IO-Link functions (acyclical)
application specific tag; operating hours counter; switch-on cycle counter
Supported DeviceIDs
Type of operation
DeviceID
default
526
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
513
Weight [g]
19.1

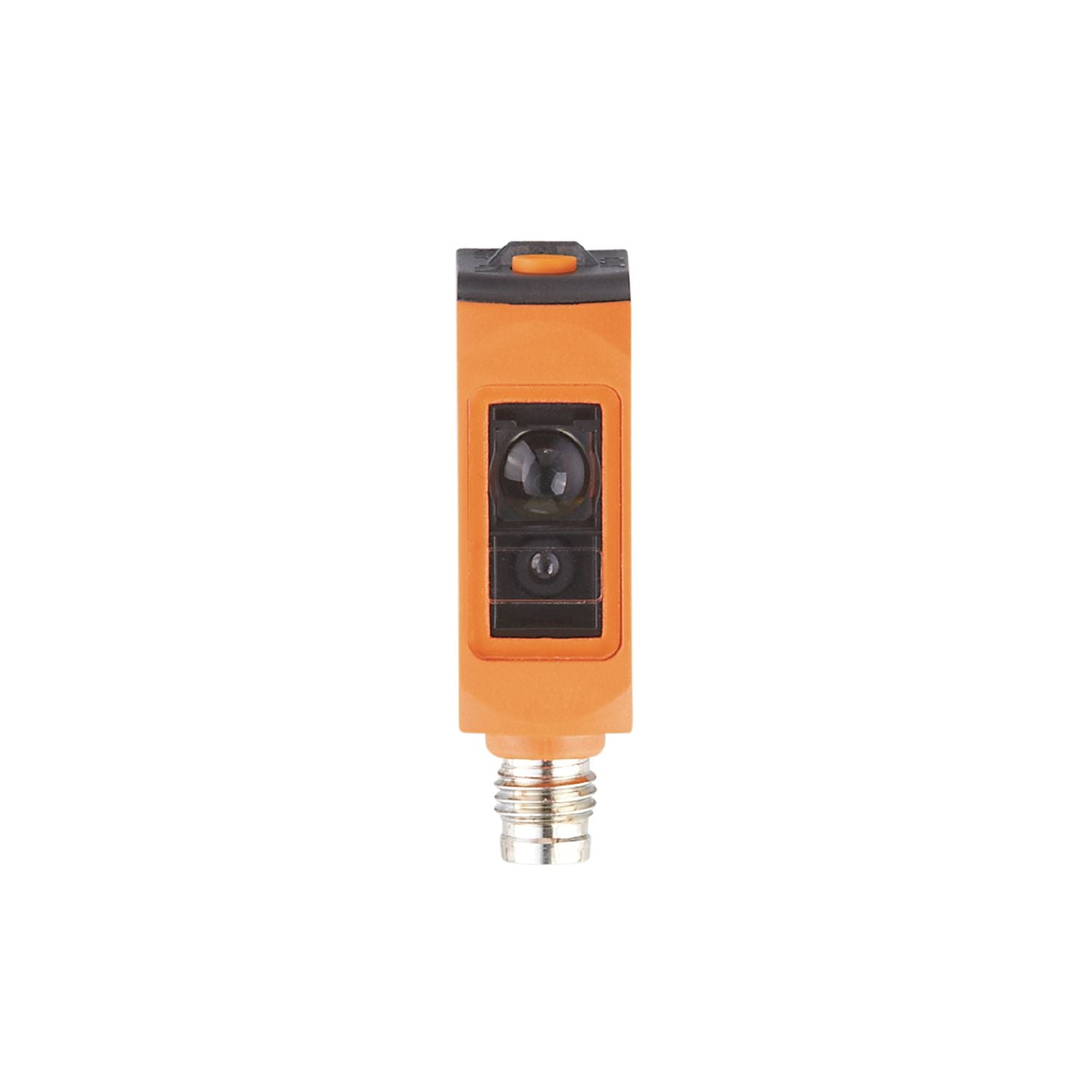

Housing
rectangular
Dimensions [mm]
46 x 13 x 21
Materials
housing: ABS; PPSU; Sealing: EPDM
Lens material
PMMA
Lens alignment
side lens
Tightening torque [Nm]
0.5;(screws)
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
Other data
Repeatability: 6 σ
repeatability of the measured values
Abstand
white (90 % remission)
black (6 %...90 % remission)
20 mm
0.1 mm
0.5 mm
50 mm
0.2 mm
1.0 mm
100 mm
0.5 mm
2.0 mm
accuracy
Abstand
white (90 % remission)
black (6 %...90 % remission)
20 mm
± 0.6 mm
± 0.9 mm
50 mm
± 1.5 mm
± 2.0 mm
100 mm
± 3.0 mm
± 4.0 mm
The values apply at
Extraneous light on the object
< 10 klx
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
10
IO-Link - measuring mode
