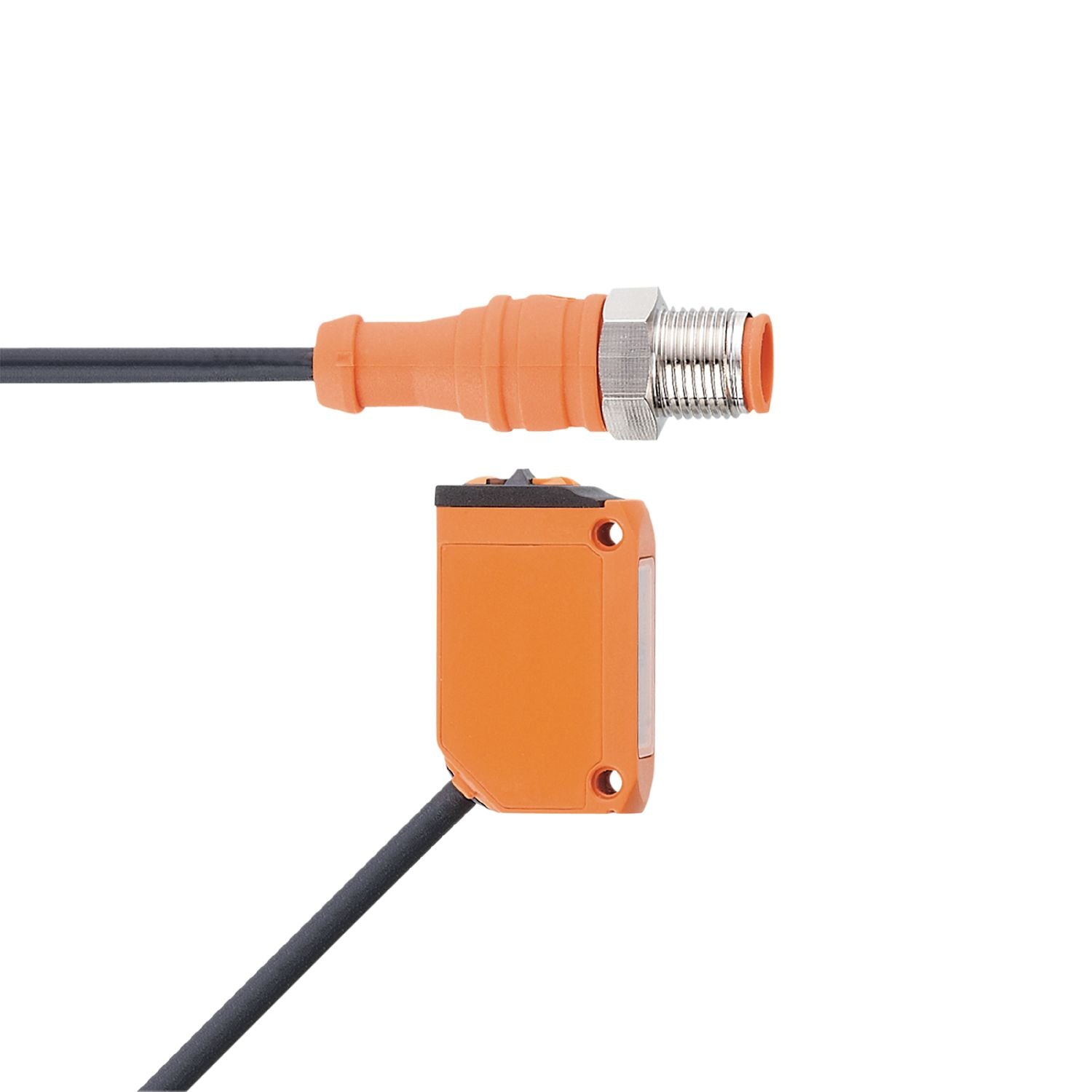

IFM O6P201 - Retro-reflective sensor O6P-FPKG/0,30m/US

Particularly compact housing for use where space is restricted.
Very long range independent of the object colour.
Intuitive setting of the sensitivity via potentiometer.
User-friendly selection of light-on or dark-on via rotary switch.
Excellent price/performance ratio

Type of light	red light
Housing	rectangular

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	12;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range referred to prismatic reflector [m]	0.05...5;(Prismatic reflector Ø 80 E20005)
Range adjustable	yes
Max. light spot diameter [mm]	150
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Max. relative air humidity [%]	50;(70° C)
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	895
UL approval	UL Approval no. E012

Weight [g]	33.2
Housing	rectangular
Dimensions [mm]	35.4 x 13 x 21
Materials	housing: ABS; PPSU; Sealing: EPDM
Lens material	PMMA
Lens alignment	side lens
Tightening torque [Nm]	0.5

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR; 3 x 0.25 mm²
Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor
