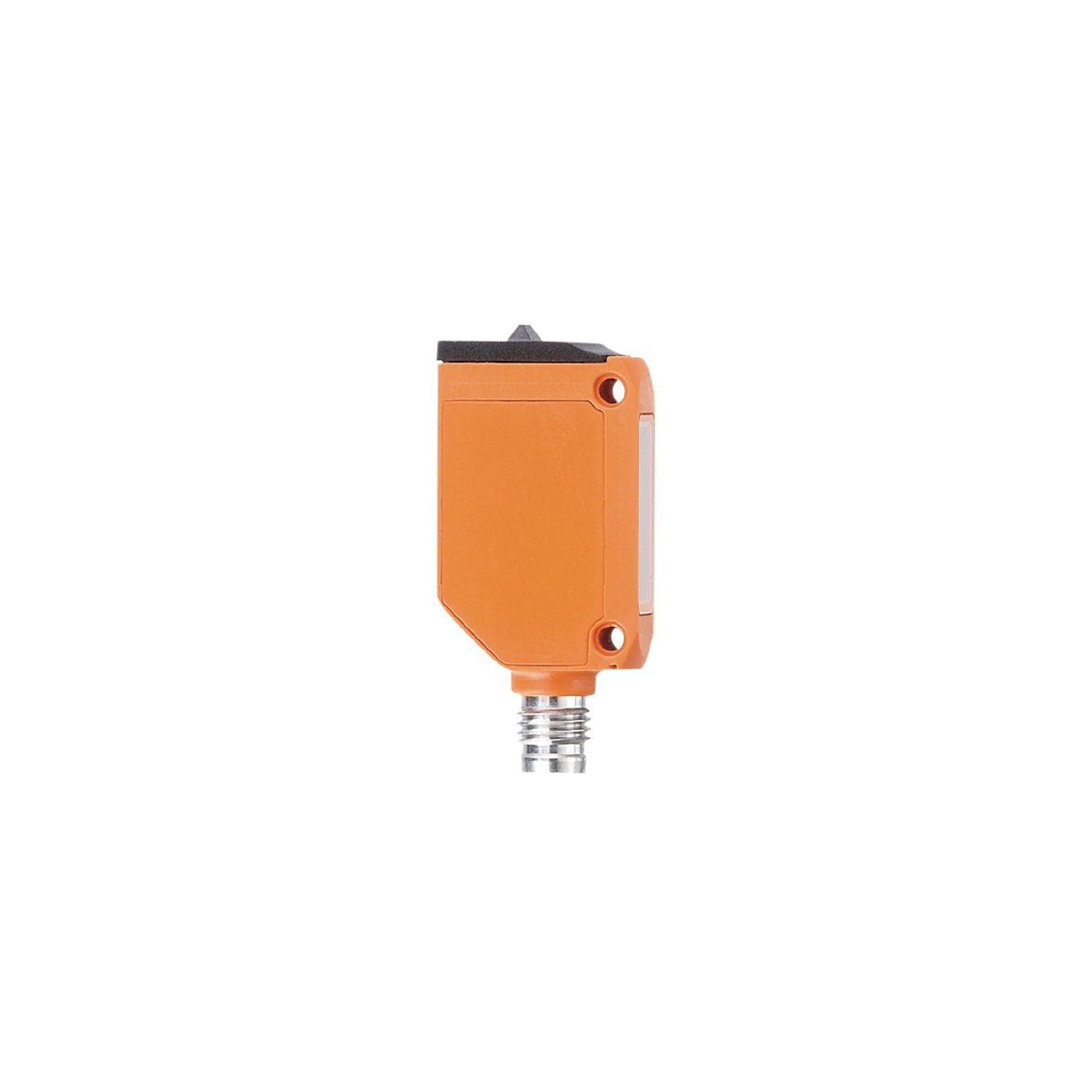

IFM O6S215 - Through-beam sensor transmitter O6SIOOKG/AS/4P

Particularly compact housing for use where space is restricted.
Very long range independent of the object colour.
Excellent price/performance ratio.
Clearly visible LED for indicating the readiness for operation

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	11;((24 V))
Protection class	III
Type of light	infrared light
Wave length [nm]	850

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 15
Max. light spot diameter [mm]	460
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	2920
UL approval	UL Approval no. E002

Weight [g]	17.7
Housing	rectangular
Dimensions [mm]	35.4 x 13 x 21
Materials	housing: ABS; PPSU
Lens material	PMMA
Lens alignment	side lens
Sealing material	EPDM
Tightening torque [Nm]	0.5

Displays / operating elements

Display	operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A; Locking: metal, coated; Sealing: EPDM

Diagrams and graphs

excess gain graph
