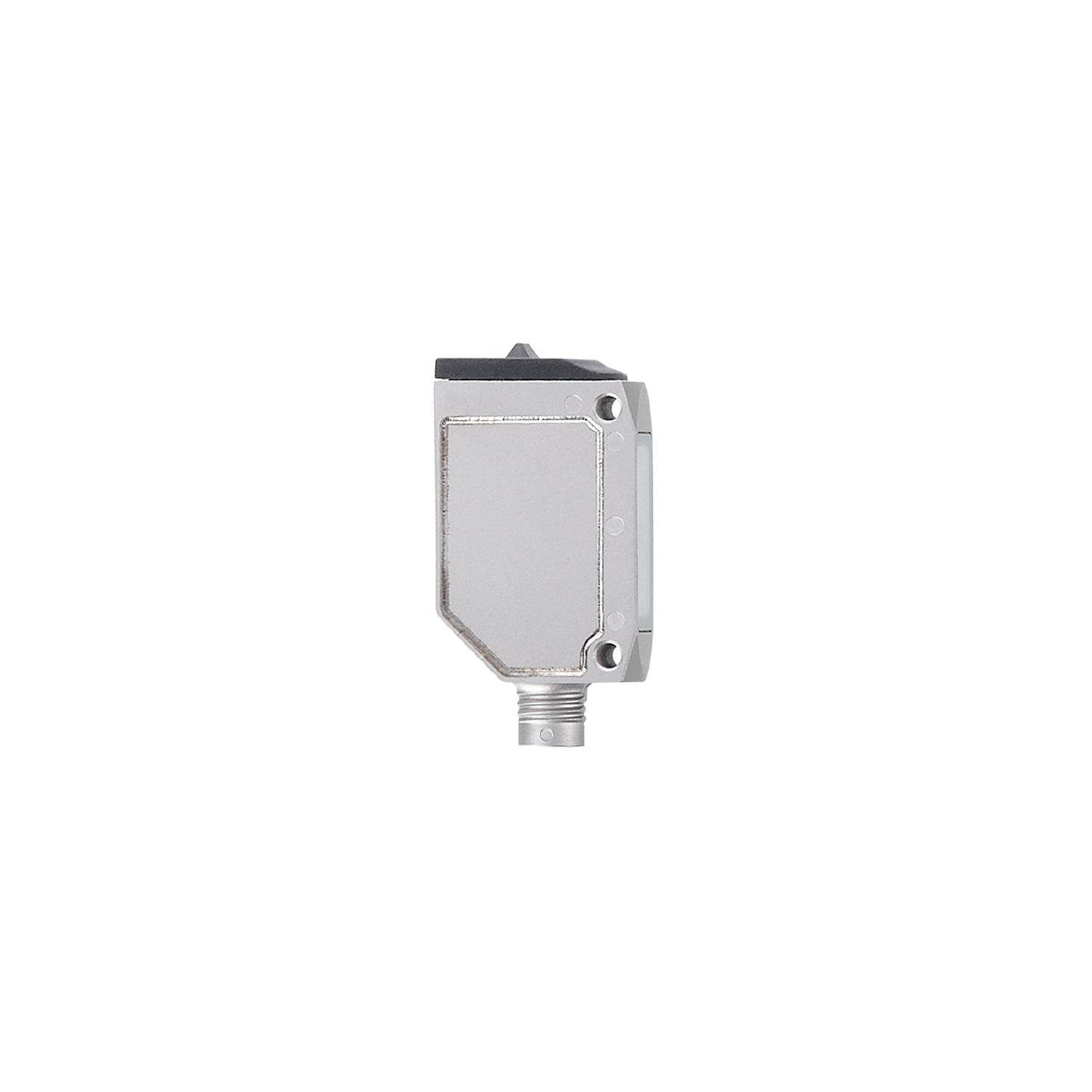

IFM O6S302 - Through-beam sensor transmitter O6S-OOKG/AS/3P

Robust stainless steel housing for use in the food and beverage industry.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High protection rating for the requirements of harsh industrial environments.
Very long range independent of the object colour

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	11;((24 V))
Protection class	III
Type of light	red light
Wave length [nm]	633

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 10
Max. light spot diameter [mm]	300
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	2600
UL approval	UL Approval no. E002

Weight [g]	33.7
Housing	rectangular
Dimensions [mm]	34.8 x 13 x 21
Materials	housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM
Lens material	PMMA
Lens alignment	side lens
Tightening torque [Nm]	1;(screws)

Displays / operating elements

Display	operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor
