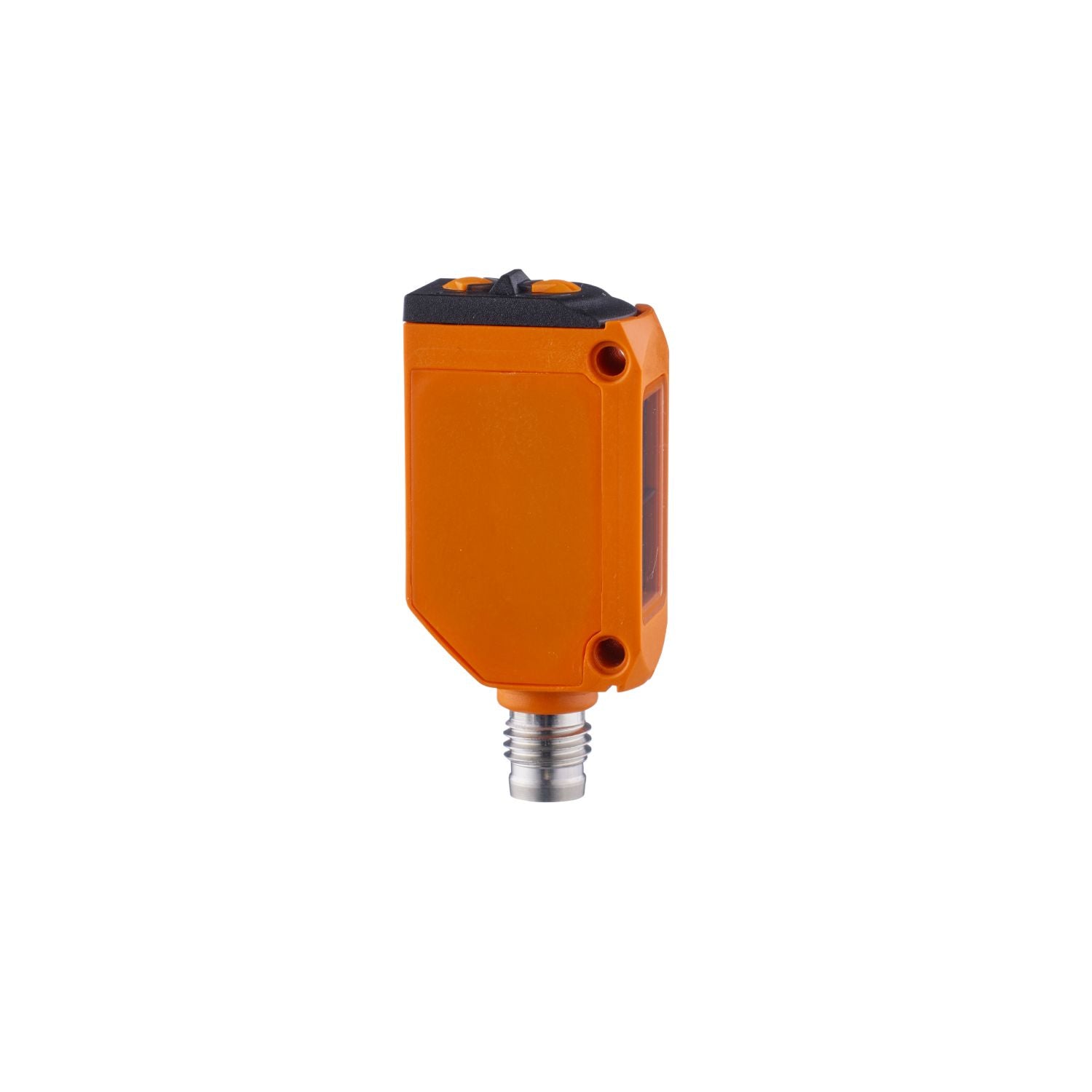

IFM O6T206 - Diffuse reflection sensor O6T-FNKG/AS/3P

Particularly compact housing for use where space is restricted.
Intuitive setting of the range via potentiometer.
User-friendly selection of light-on or dark-on via rotary switch.
Excellent price/performance ratio

Type of light	red light
Housing	rectangular

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	16;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	NPN
Output function	light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	5...500;(white paper 200 x 200 mm 90% remission)
Setting range [mm]	100...500
Range adjustable	yes
Max. light spot diameter [mm]	15
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	897
UL approval	UL Approval no. E001

Weight [g]	18.1
Housing	rectangular
Dimensions [mm]	46 x 13 x 21
Materials	housing: ABS; PPSU
Lens material	PMMA
Lens alignment	side lens
Sealing material	EPDM
Tightening torque [Nm]	0.5

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A; Locking: brass, coated; Sealing: EPDM

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O6T206-01 — 07.08.2023 —
