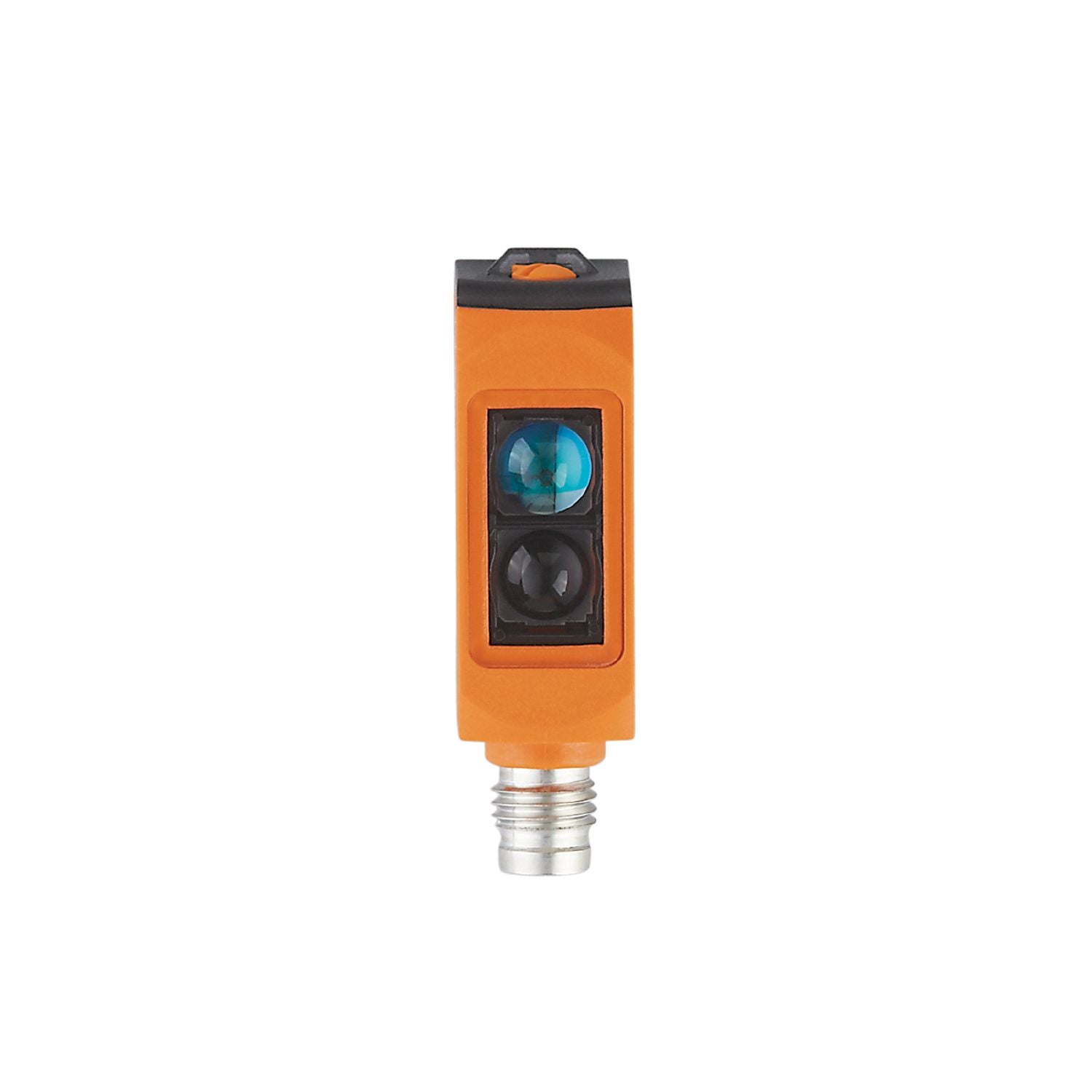

IFM O6T210 - Diffuse reflection sensor O6T-CPKG/AS/4P

Particularly compact housing for use where space is restricted.
Intuitive setting of the range via potentiometer.
Complementary output function NO/NC

Type of light	red light
Housing	rectangular

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	16;((24 V))
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	0.5
Minimum load current [mA]	10
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	5...500;(white paper 200 x 200 mm 90% remission)
Setting range [mm]	5...500
Range adjustable	yes
Max. light spot diameter [mm]	15
Light spot dimensions refer to	at maximum range

Response times

Response time [s]	< 300

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1172
UL approval	UL Approval no. E009

Weight [g]	15.8
Housing	rectangular
Dimensions [mm]	46 x 13 x 21
Materials	housing: ABS; PPSU
Lens material	PMMA
Lens alignment	side lens
Sealing material	EPDM
Tightening torque [Nm]	0.5;(screws)

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A; Locking: metal, coated; Sealing: EPDM

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor
