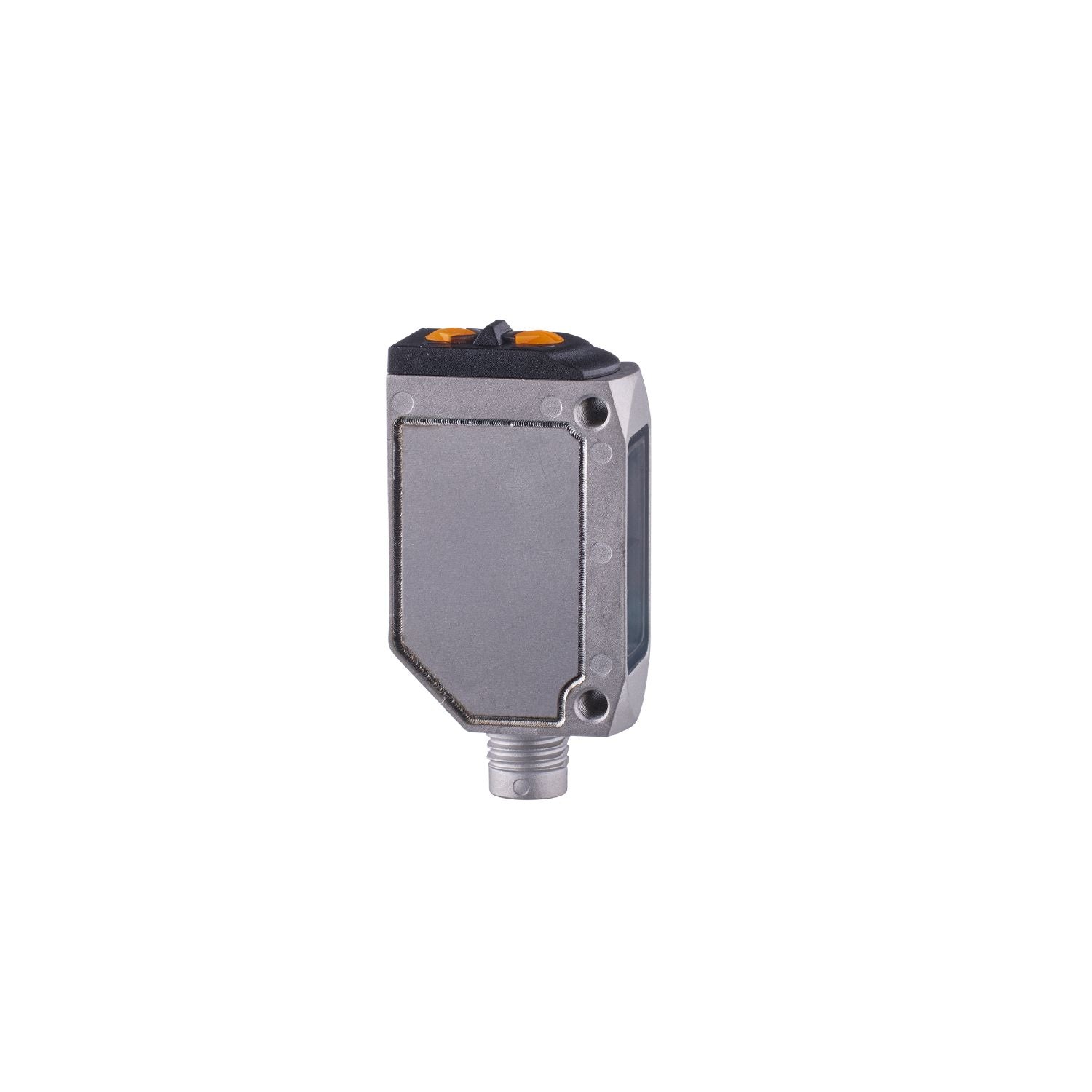

Robust stainless steel housing for use in the food and beverage industry. Resistant to high-pressure cleaning with aggressive cleaning agents. High protection rating for the requirements of harsh industrial environments. Intuitive setting of range and output function
Type of light
red light
Housing
rectangular
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
16;((24 V))
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
633
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Detection zone
Range [mm]
5...500;(white paper 200 x 200 mm 90% remission)
Setting range [mm]
100...500
Range adjustable
yes
Max. light spot diameter [mm]
15
Light spot dimensions refer to
at maximum range
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification; Binary Data Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
2.5
IO-Link process data (cyclical)
function
bit length
process value
8
binary switching information
1
IO-Link functions (acyclical)
application specific tag; operating hours counter; switching cycles counter
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
x:
distance [mm]
y:
excess gain factor
