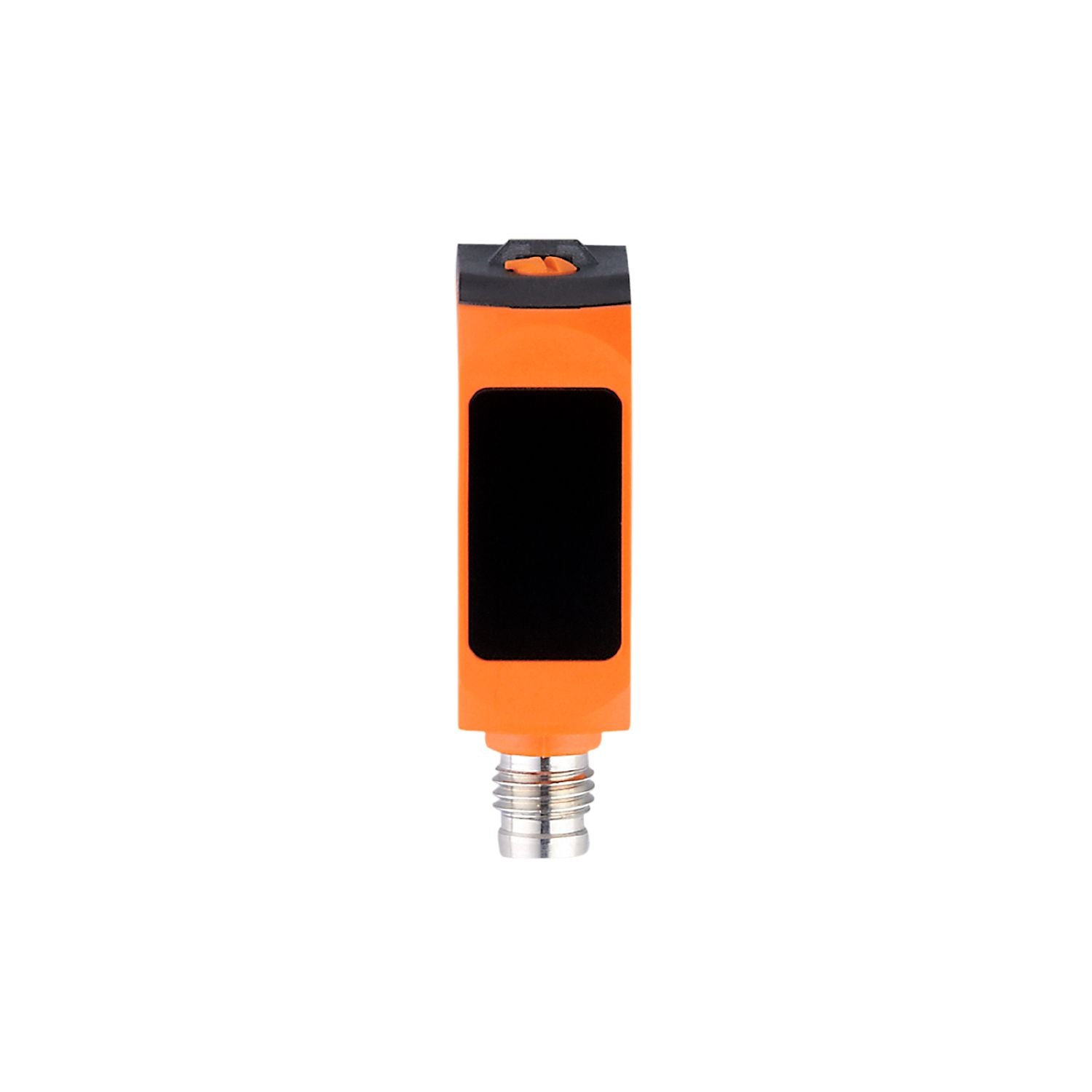

Particularly compact housing for use where space is restricted. Intuitive setting of the sensitivity via potentiometer. Particularly interference-immune background suppression even with strongly reflecting backgrounds. Excellent price/performance ratio
Type of light
infrared light
Housing
rectangular
Special feature
Background suppression
Application [m]
0.025...2
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 30
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
300
Type of light
infrared light
Wave length [nm]
940
Outputs
Electrical design
PNP
Output function
light-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Detection zone
Range [mm]
25...400
Range adjustable
yes
Max. light spot diameter [mm]
200
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Background suppression [m]
2
Measuring/setting range
Sampling rate [Hz]
10
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification; Switching Signal Channel; Process Data Variable; Device Diagnosis; Tech Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
10
Supported DeviceIDs
Type of operation
DeviceID
default
1159
Operating conditions
Ambient temperature [°C]
-25...55
Storage temperature [°C]
-40...85
Protection
IP 65; IP 67
Max. immunity to extraneous light [klx]
8
Tests / approvals
EMC
EN 60947-5-2
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
682
UL approval
Ta
-25...55 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
File number UL
E174191
Weight [g]
18
Housing
rectangular
Dimensions [mm]
46 x 13 x 21
Materials
housing: ABS; PPSU; Sealing: EPDM
Lens material
PMMA
Tightening torque [Nm]
0.5
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Operating elements
potentiometer
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
1
< 8 kLux
2
< 3 kLux
3
< 1 kLux
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
