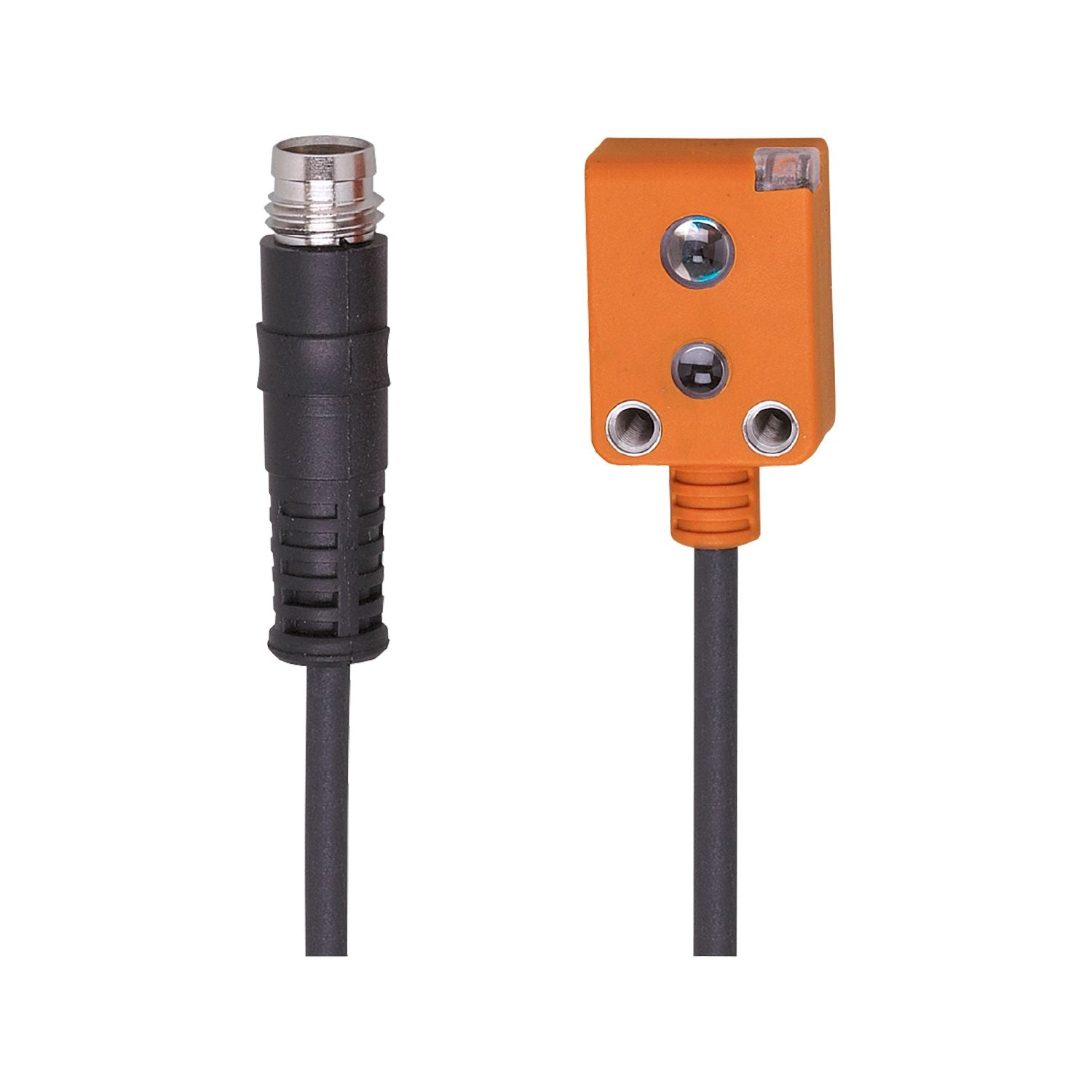

IFM O7H203 - Diffuse reflection sensor with background suppression O7H-DPKG/0,20M/AS

Particularly small housing for use where space is restricted.
For the reliable position detection in feeding and handling technology.
Small light spot and narrow light cone for detecting of small objects.
Precise background suppression.
Simple alignment due to visible red light

Type of light	red light
Housing	rectangular

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC;("supply class 2" according to UL)
Current consumption [mA]	20;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	750
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	5...50;(white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]	5...50
Range on grey object (18 % remission) [mm]	6...48
Range on black object (6 % remission) [mm]	7...46
Range adjustable	no
Max. light spot diameter [mm]	2.5
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1610

Weight [g]	14.4
Housing	rectangular
Dimensions [mm]	20.3 x 15 x 9
Materials	PA
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.2 m, PUR; 3 x 0.14 mm²
Connection	Connector: 1 x M8; coding: A; Locking: snap-fit
