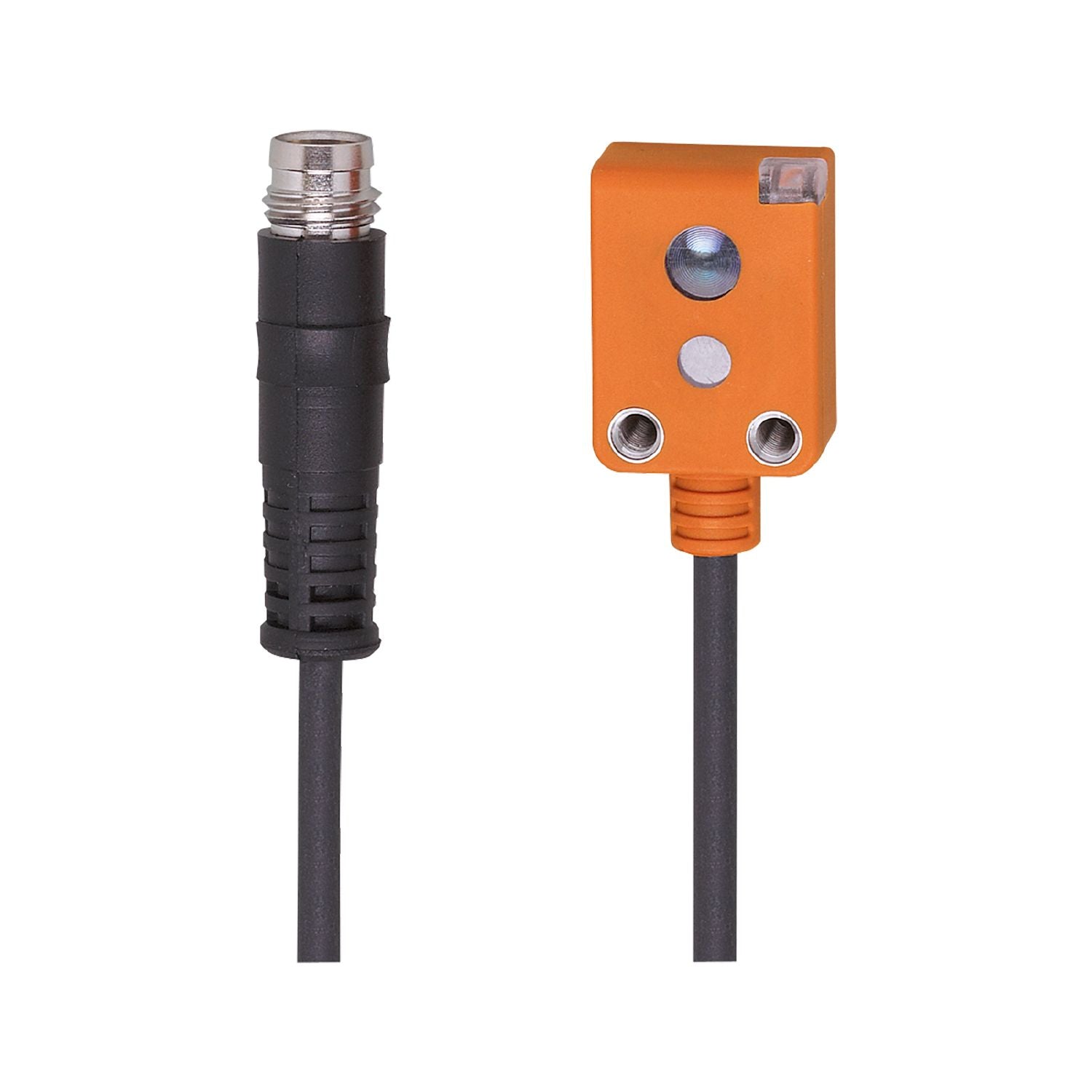

IFM O7P202 - Retro-reflective sensor O7P-DNKG/0,20M/AS

Particularly small housing for use where space is restricted.
For the reliable position detection in feeding and handling technology.
Small light spot and narrow light cone for detecting of small objects.
Ready for operation immediately thanks to fixed setting.
Simple alignment due to visible red light

Type of light	red light
Housing	rectangular

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	20;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	NPN
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range referred to prismatic reflector [m]	0.03...1;(Prismatic reflector Ø 80 E20005; Prismatic reflector 50 x 50 mm E21299)
Range adjustable	no
Max. light spot diameter [mm]	55
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	969

Weight [g]	14.4
Housing	rectangular
Dimensions [mm]	20.3 x 15 x 9
Materials	PA
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow

Remarks	operating voltage "supply class 2" according to UL
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.2 m, PUR; 3 x 0.14 mm²
Connection	Connector: 1 x M8; coding: A; Locking: snap-fit

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O7P202-00 — 13.04.2023 —
