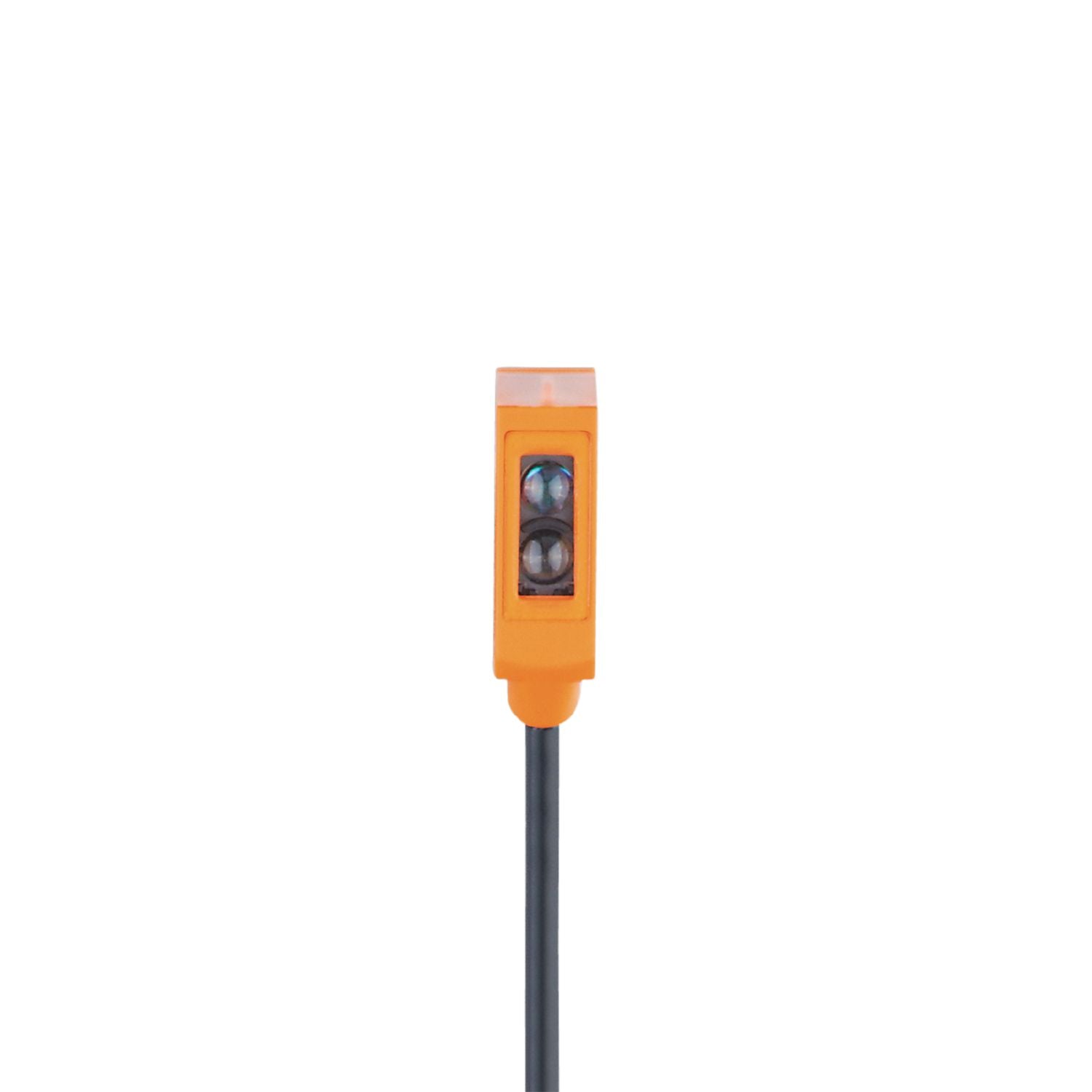

Compact light spot for precise detection even at longer distances. Extremely reliable background suppression. Installation within seconds, space-saving design
Type of light
red light
Housing
rectangular
Special feature
Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
20;((24 V))
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
633
Outputs
Electrical design
NPN
Output function
light-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Detection zone
Range [mm]
3...15;(white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]
3...15
Range on grey object (18 % remission) [mm]
5...15
Range on black object (6 % remission) [mm]
5...15
Range adjustable
no
Max. light spot diameter [mm]
4
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
757
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL Approval no.
E014
File number UL
E174191
Weight [g]
38
Housing
rectangular
Dimensions [mm]
28.1 x 8.1 x 14.4
Materials
housing: ABS; stainless steel (1.4404 / 316L)
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PVC; 3 x 0.08 mm²
Diagrams and graphs
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
