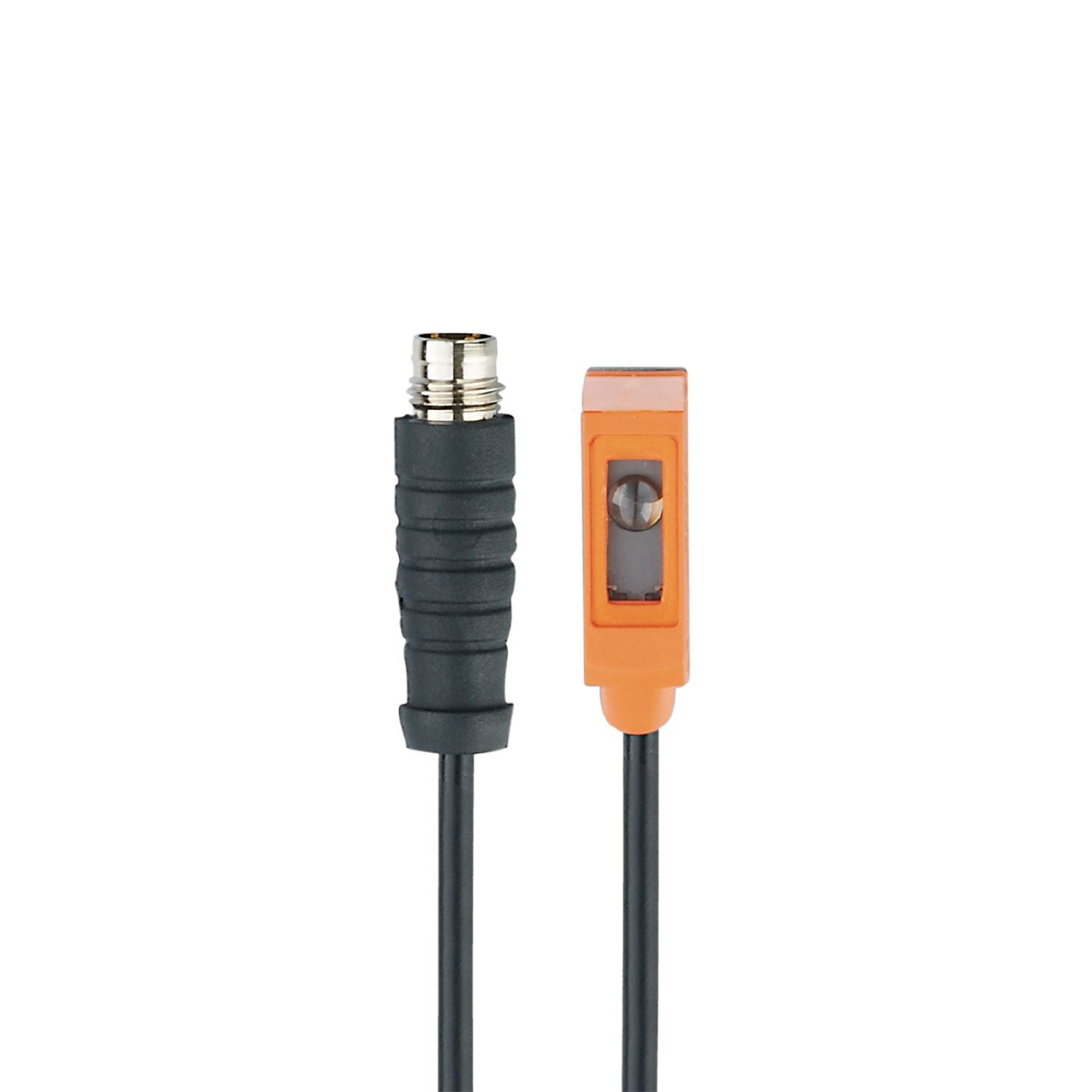

Particularly small housing for use where space is restricted. For the reliable position detection in feeding and handling technology. Small light spot and narrow light cone for detecting of small objects. Ready for operation immediately thanks to fixed setting. Simple alignment due to visible red light
Type of light
red light
Housing
rectangular
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
12;((24 V))
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
633
Detection zone
Transmitter / receiver
transmitter
Range [m]
< 3
Max. light spot diameter [mm]
200
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
2942
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL Approval no.
E026
File number UL
E174191
Weight [g]
20.9
Housing
rectangular
Dimensions [mm]
28.1 x 8.1 x 14.4
Materials
housing: ABS; stainless steel (1.4404 / 316L)
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 0.3 m, PVC, black, Ø 2.9 mm; 2 x 0.08 mm²
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
x:
distance [mm]
y:
excess gain factor
