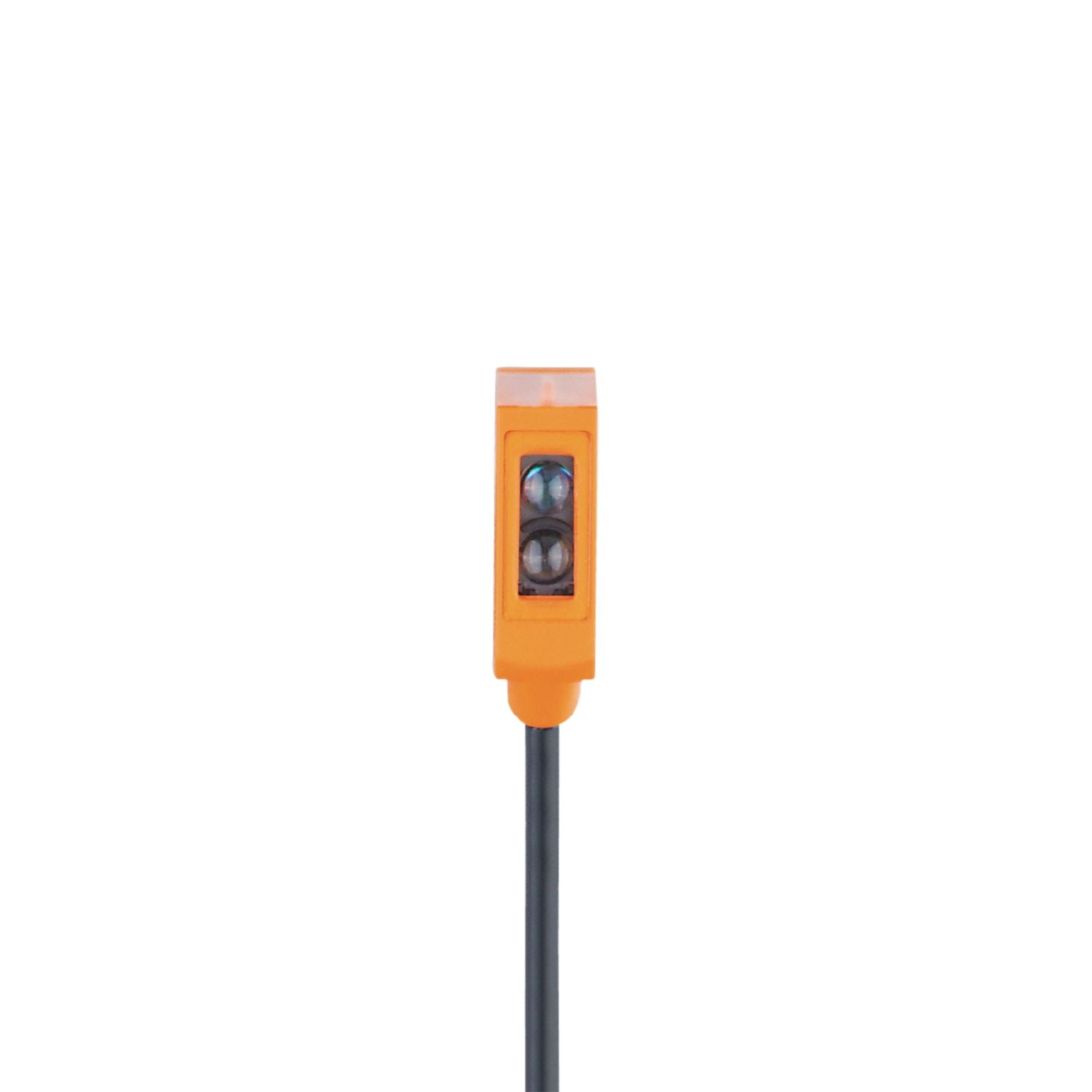

Particularly small housing for use where space is restricted. For the reliable position detection in feeding and handling technology. Precise detection of very small, very flat or highly reflective components. Ready for operation immediately thanks to fixed setting. Very long range
Type of light
red light
Housing
rectangular
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
20;((24 V))
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
633
Outputs
Electrical design
NPN
Output function
light-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Detection zone
Range [mm]
0...180;(white paper 200 x 200 mm)
Max. light spot diameter [mm]
18
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
1067
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL Approval no.
E014
File number UL
E174191
Weight [g]
40
Housing
rectangular
Dimensions [mm]
28.1 x 8.1 x 14.4
Materials
housing: ABS; stainless steel (1.4404 / 316L)
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
Diagrams and graphs
excess gain graph
x:
distance [mm]
y:
excess gain factor
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O8T201-00 — 13.04.2023 —
