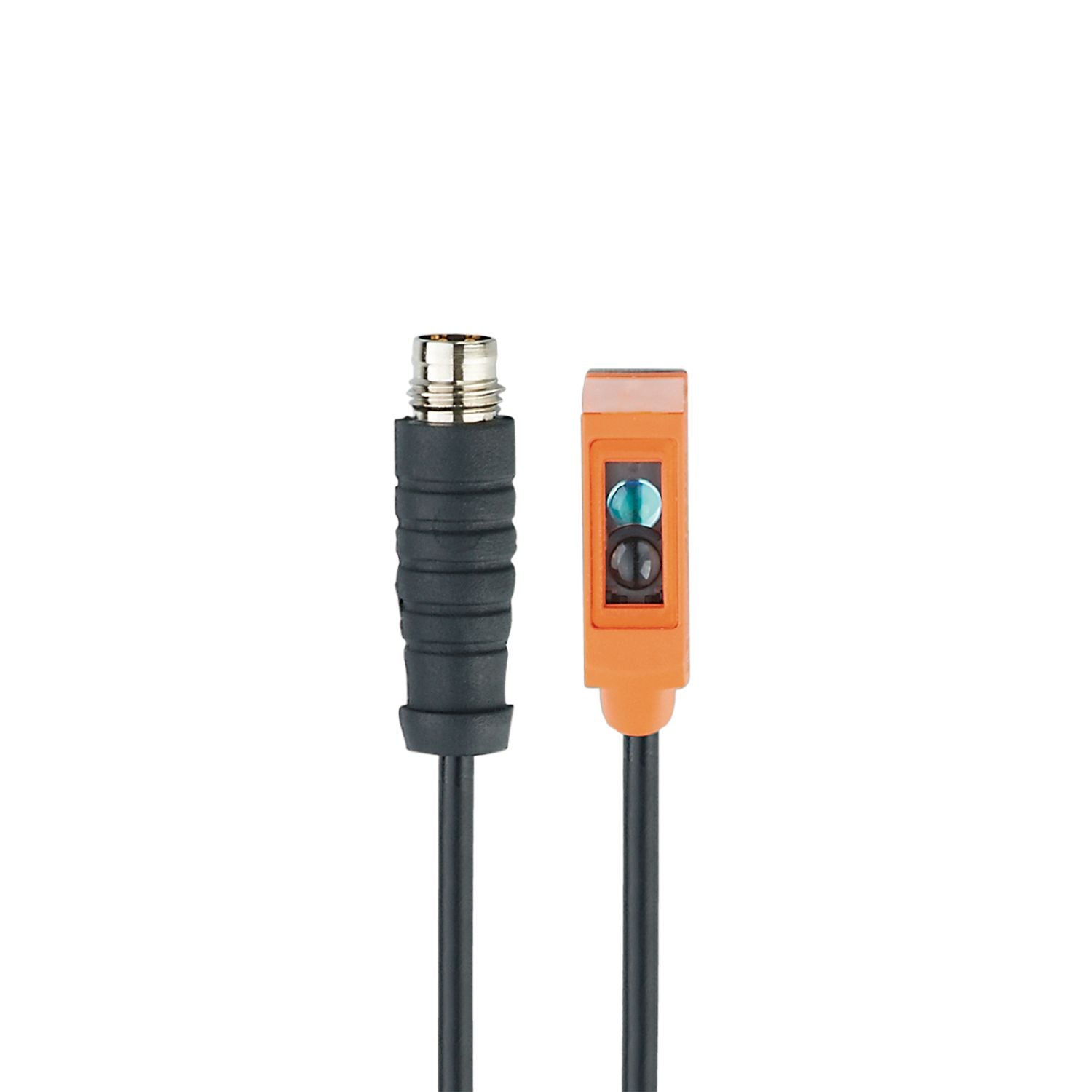

IFM O8T204 - Diffuse reflection sensor O8T-FPKG/IO-Link/0,30M/AS/4P

Particularly small housing for use where space is restricted.
For the reliable position detection in feeding and handling technology.
Precise detection of very small, very flat or highly reflective components.
Very long range

Type of light	red light
Housing	rectangular

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	20;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	0...180;(white paper 200 x 200 mm)
Max. light spot diameter [mm]	18
Light spot dimensions refer to	at maximum range

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	2.5
IO-Link process data (cyclical)	function bit length process value 8 device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 788

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1067
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. E017 File number UL E174191

Weight [g]	21.1
Housing	rectangular
Dimensions [mm]	28.1 x 8.1 x 14.4
Materials	housing: ABS; stainless steel (1.4404 / 316L)
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor
