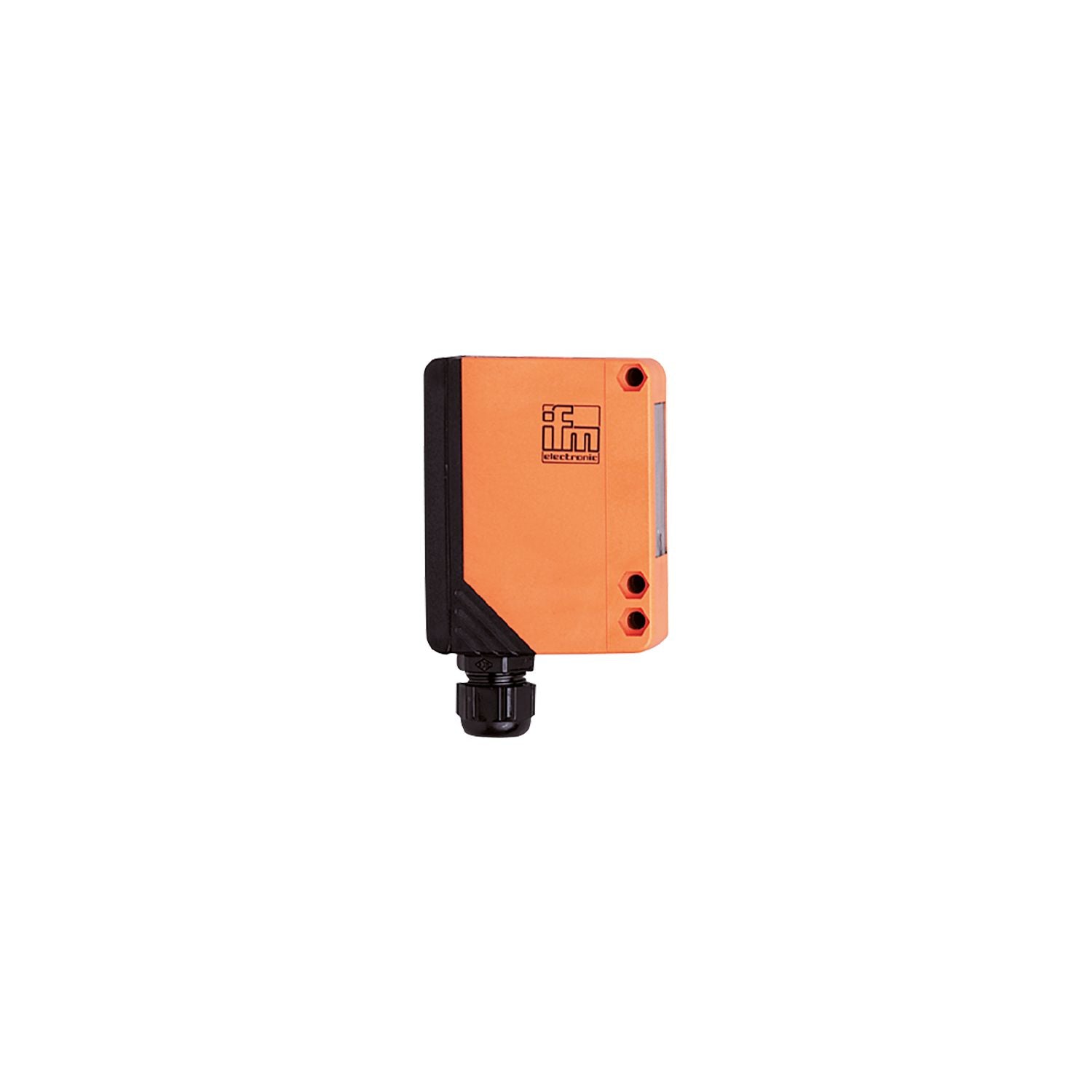

IFM OA0101 - Through-beam sensor transmitter OAS-OOOA

Very long range.
With combined AC/DC output stage.
Large AC/DC operating voltage range.
Robust housing for use in harsh industrial environments.
LED display to check the operating status

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Max. power consumption [VA]	3.5
Protection class	II
Type of light	infrared light
Wave length [nm]	880

Outputs

Short-circuit protection	no
Overload protection	no

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 50
Range adjustable	no
Max. light spot diameter [mm]	1500
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	393

Weight [g]	278
Housing	rectangular
Dimensions [mm]	90 x 30 x 70
Materials	PPO modified
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	Angle bracket: 1, E20514 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
