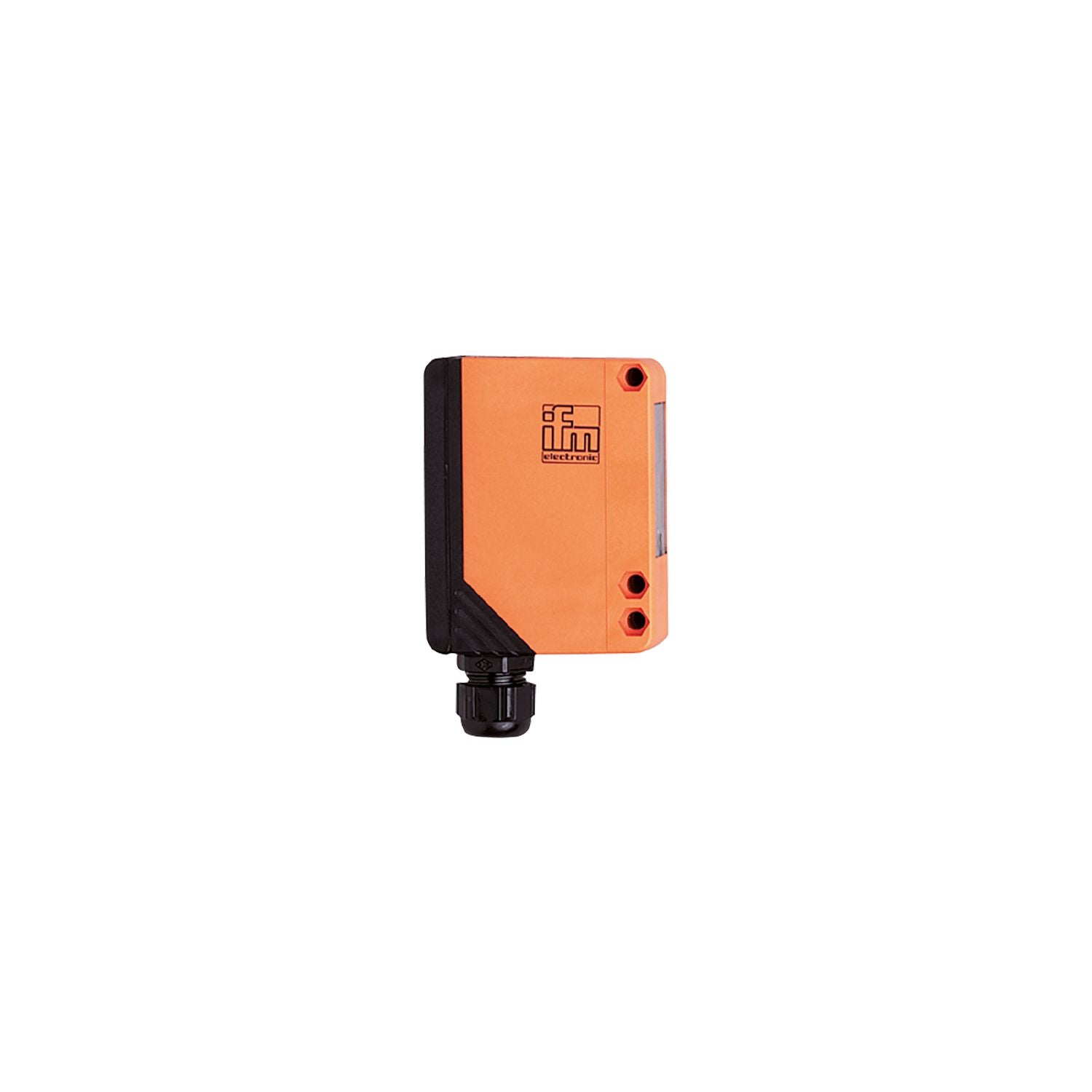

IFM OA5104 - Retro-reflective sensor OAR-FCKG

Very long range.
Intuitive setting of sensitivity and duration of switching delay.
Programmable light-on/dark-on mode.
With function check output to signal soiling or maladjustment.
LED display to check operation, switching status and function

Type of light	infrared light
Housing	rectangular

Special feature	Function check output
Function principle	Retro-reflective sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 50
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP/NPN
Output function	light-on/dark-on mode;(programmable)
Function check output	yes
Max. current load for function check output [mA]	10
Permanent current rating of switching output DC [mA]	250
Max. current load in dual output mode [mA]	100
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range referred to prismatic reflector [m]	0.25...10;(Prismatic reflector Ø 80 E20005)
Range adjustable	yes
Max. light spot diameter [mm]	350
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	402

Weight [g]	284.5
Housing	rectangular
Dimensions [mm]	90 x 30 x 70
Materials	PPO modified
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red

Accessories

Items supplied	Angle bracket: 1, E20514 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

Diagrams and graphs

excess gain graph
