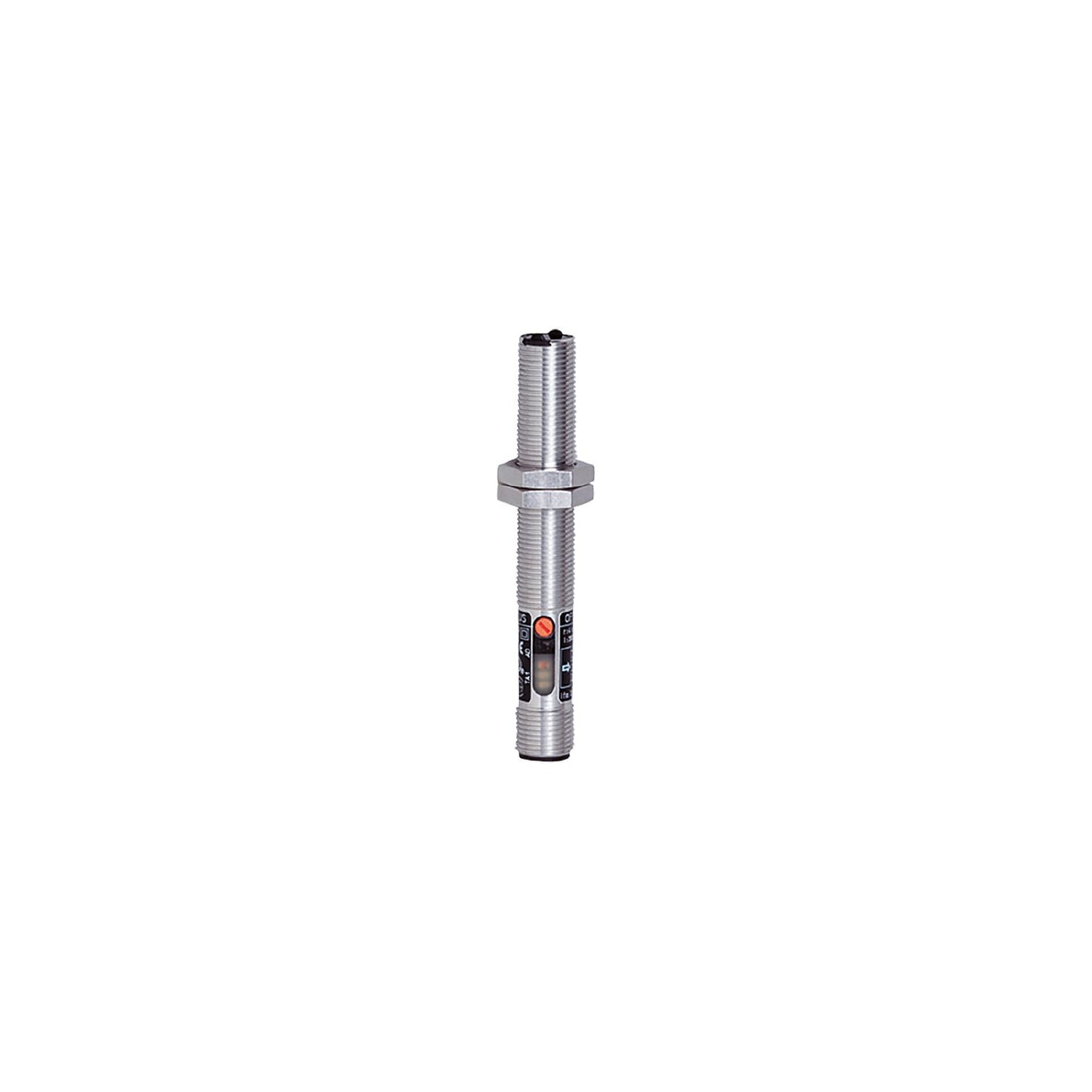

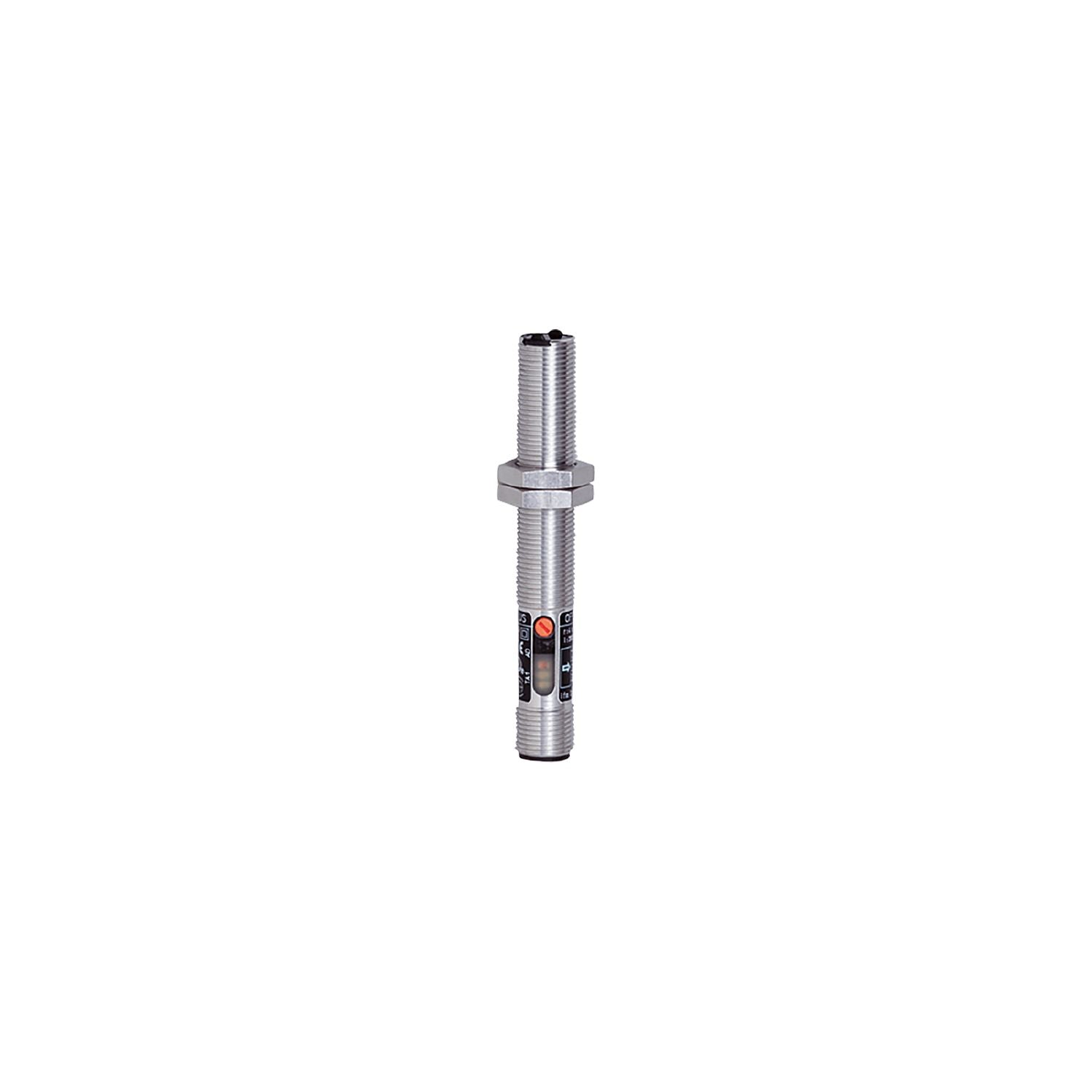

IFM OF5016 - Retro-reflective sensor OFR-FPKG/US-100

Intuitive setting of the sensitivity via potentiometer.
With function check output to signal soiling or maladjustment.
Robust metal housing for use in harsh industrial environments.
Programmable light-on/dark-on mode.
LED display to check operation, switching status and function

Type of light	infrared light
Housing	threaded type

Special feature	Function check output
Function principle	Retro-reflective sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 35
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Function check output	yes
Max. voltage drop of function check output [V]	3.5
Max. current load for function check output [mA]	10
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	320
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range referred to prismatic reflector [m]	0.05...2;(Prismatic reflector Ø 80 E20005)
Range adjustable	yes
Max. light spot diameter [mm]	140
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	607

Weight [g]	41
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 74
Thread designation	M12 x 1
Materials	brass nickel-plated
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red

Accessories

Items supplied	lock nuts: 2 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OF5016-01 — 13.04.2023 —
