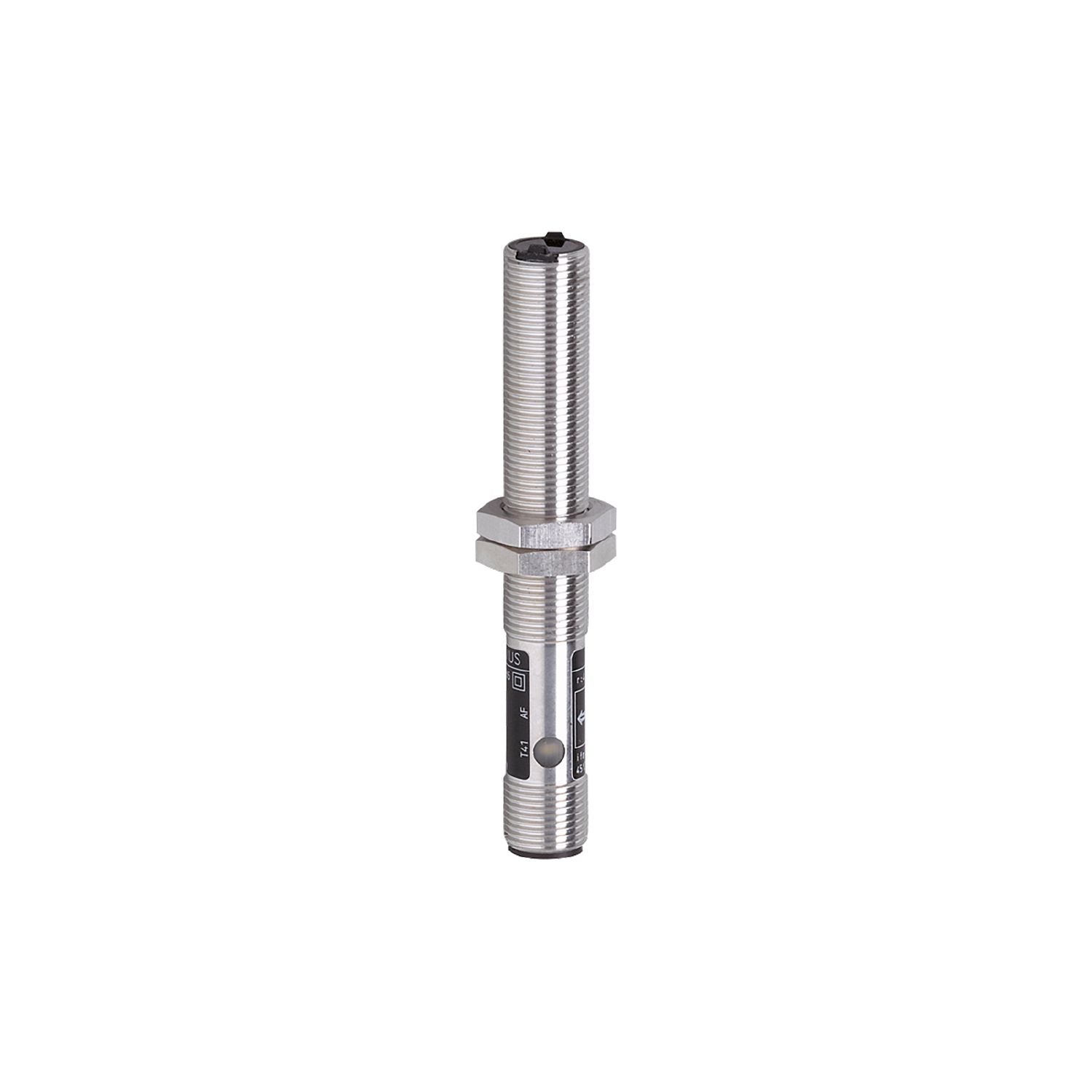

IFM OF5021 - Through-beam sensor transmitter OFS-OOKG/US-100

Robust metal housing for use in harsh industrial environments.
Long range.
LED display to check the operating status

Type of light	infrared light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 25
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 4
Range adjustable	no
Max. light spot diameter [mm]	700
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1597

Weight [g]	35.5
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 74
Thread designation	M12 x 1
Materials	housing: brass white bronze coated
Lens material	PMMA

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
