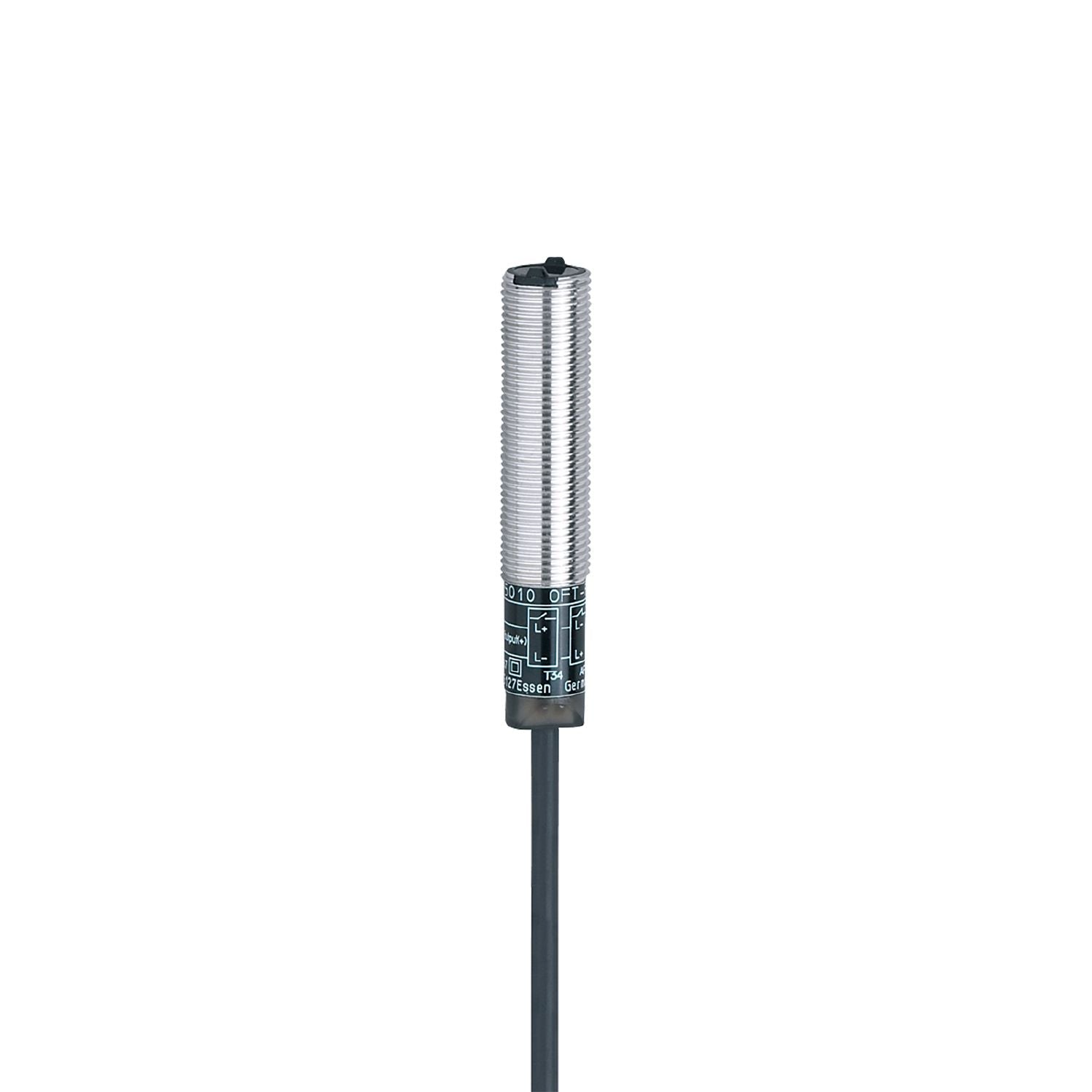

IFM OF5026 - Diffuse reflection sensor OFB-FPKG

Compact housing for use where space is restricted.
Robust metal housing for use in harsh industrial environments.
Programmable light-on/dark-on mode.
LED display to check operation, switching status and function.
With very focussed light beam

Type of light	infrared light
Housing	threaded type

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 30
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	320
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	1...400;(white paper 200 x 200 mm)
Max. light spot diameter [mm]	185
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	891

Weight [g]	92
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 60
Thread designation	M12 x 1
Materials	brass nickel-plated
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²

Diagrams and graphs

excess gain graph
