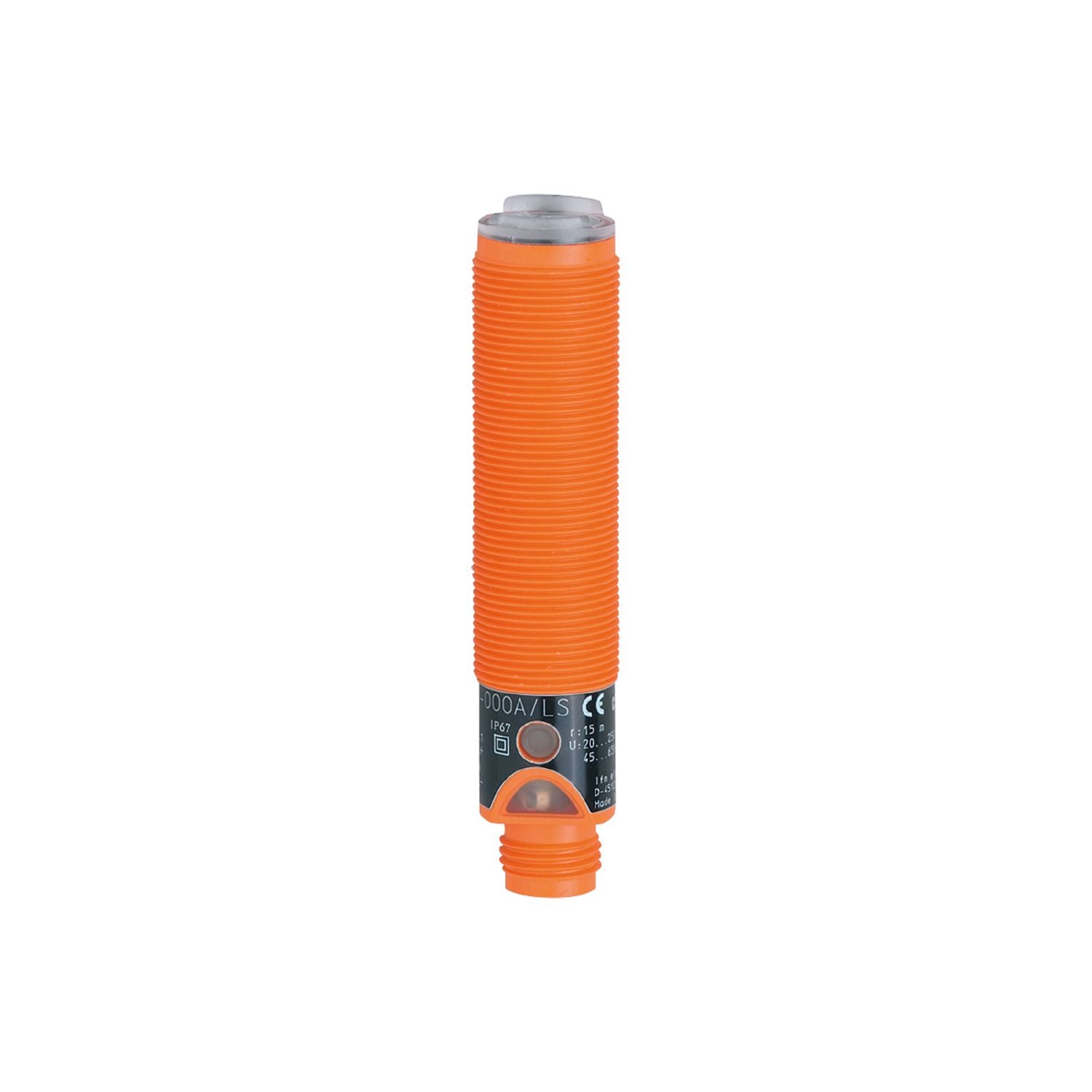

IFM OG0030 - Through-beam sensor transmitter OGS-OOOA/LS-100-AK

Very long range.
Large AC/DC operating voltage range.
Robust housing for use in harsh industrial environments.
LED display to check the operating status

Type of light	infrared light
Housing	threaded type

Function principle	Through-beam sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Current consumption [mA]	< 5
Protection class	II
Type of light	infrared light
Wave length [nm]	880

Outputs

Short-circuit protection	no
Overload protection	no

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 15
Range adjustable	no
Max. light spot diameter [mm]	2000
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1662

Weight [g]	38
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 76
Thread designation	M18 x 1
Materials	PBT
Lens material	PMMA

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x 1/2"; coding: C
