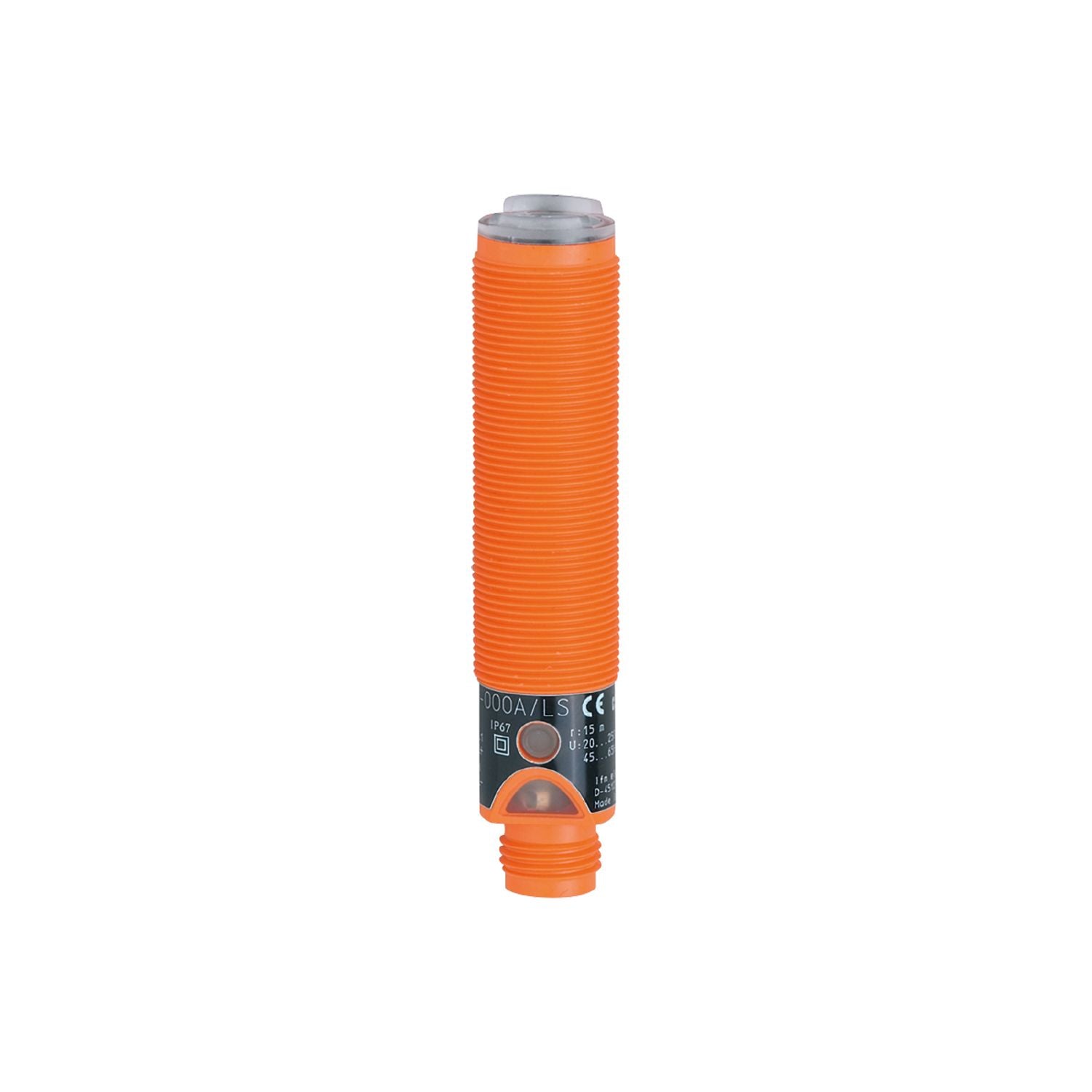

IFM OG0033 - Retro-reflective sensor OGP-DBOA/LS-100-AK

Long range.
Intuitive setting of the sensitivity via pushbutton.
LED display to check switching status and function.
With combined AC/DC output stage.
Robust housing for use in harsh industrial environments

Type of light	red light
Housing	threaded type

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Protection class	II
Reverse polarity protection	no
Type of light	red light
Wave length [nm]	660

Outputs

Output function	dark-on mode
Max. voltage drop switching output DC [V]	8
Max. voltage drop switching output AC [V]	8
Minimum load current [mA]	5
Max. leakage current [mA]	1.7
Permanent current rating of switching output AC [mA]	90;(180 (...40 °C))
Permanent current rating of switching output DC [mA]	90;(180 (...40 °C))
Short-time current rating of switching output [mA]	600;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	25
Short-circuit proof	no
Overload protection	no

Detection zone

Range referred to prismatic reflector [m]	3;(Prismatic reflector Ø 80 E20005)
Range adjustable	yes
Max. light spot diameter [mm]	262
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	339

Weight [g]	39.2
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 76
Thread designation	M18 x 1
Materials	PBT
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, red function 1 x LED, red flashing

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied	lock nuts: 2

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x 1/2"; coding: C

Diagrams and graphs

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OG0033-00 — 13.04.2023 —
