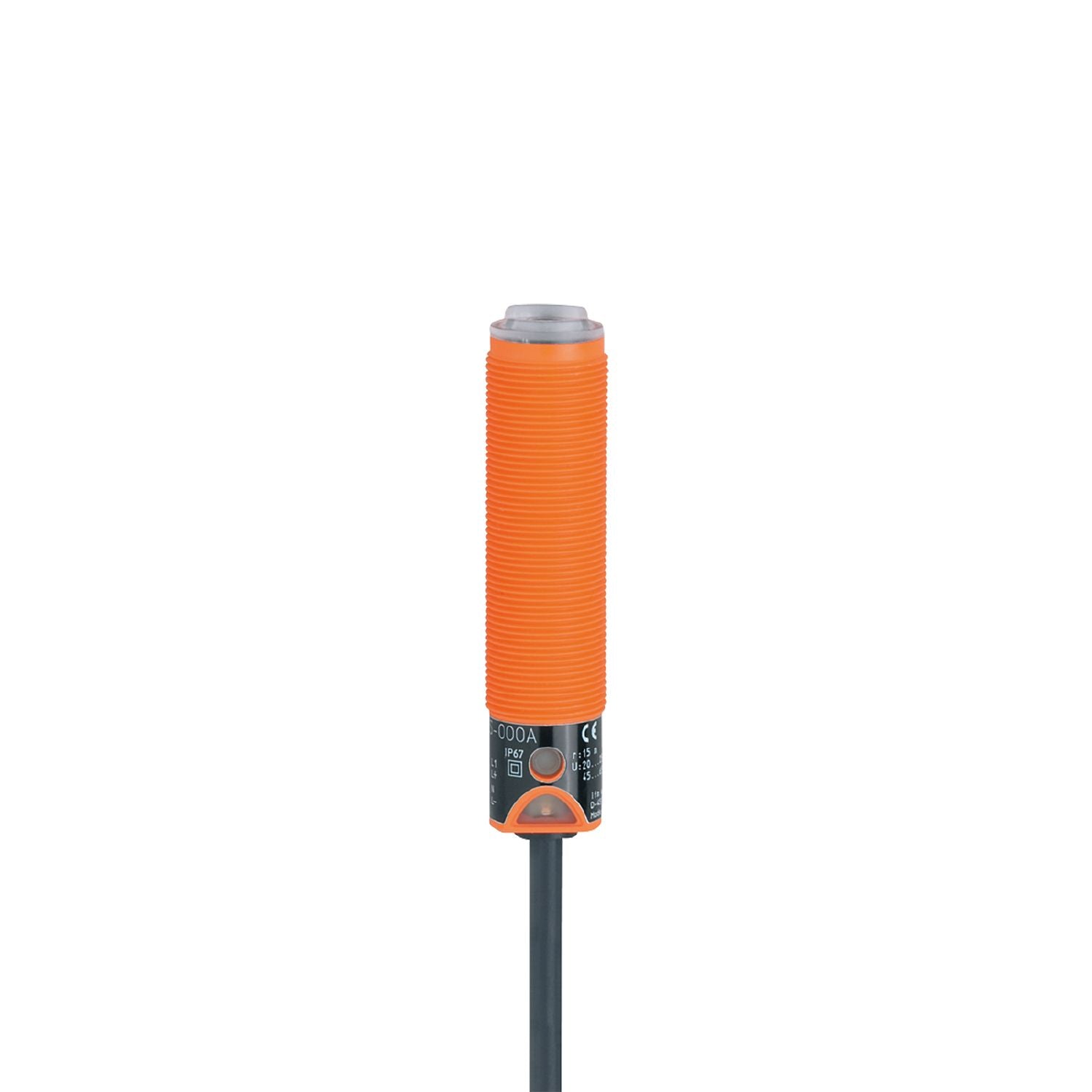

Intuitive setting of the sensitivity via pushbutton. LED display to check switching status and function. With combined AC/DC output stage. Robust housing for use in harsh industrial environments
Type of light
infrared light
Housing
threaded type
Function principle
Diffuse reflection sensor
Frequency AC [Hz]
47...63
Operating voltage [V]
20...250 AC/DC
Protection class
II
Reverse polarity protection
no
Type of light
infrared light
Wave length [nm]
880
Outputs
Output function
light-on mode
Max. voltage drop switching output DC [V]
8
Max. voltage drop switching output AC [V]
8
Minimum load current [mA]
5
Max. leakage current [mA]
1.7
Permanent current rating of switching output AC [mA]
90;(180 (...40 °C))
Permanent current rating of switching output DC [mA]
90;(180 (...40 °C))
Short-time current rating of switching output [mA]
600;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
25
Short-circuit proof
no
Overload protection
no
Detection zone
Range [mm]
1...600;(white paper 200 x 200 mm 90% remission)
Max. light spot diameter [mm]
169
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
338
Weight [g]
52.1
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 78.5
Thread designation
M18 x 1
Materials
PBT
Lens material
PMMA
Displays / operating elements
Display
switching status
1 x LED, red
function
1 x LED, red flashing
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nuts: 2
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 0.377 m, PVC; 2 x 0.5 mm²
Diagrams and graphs
excess gain graph
