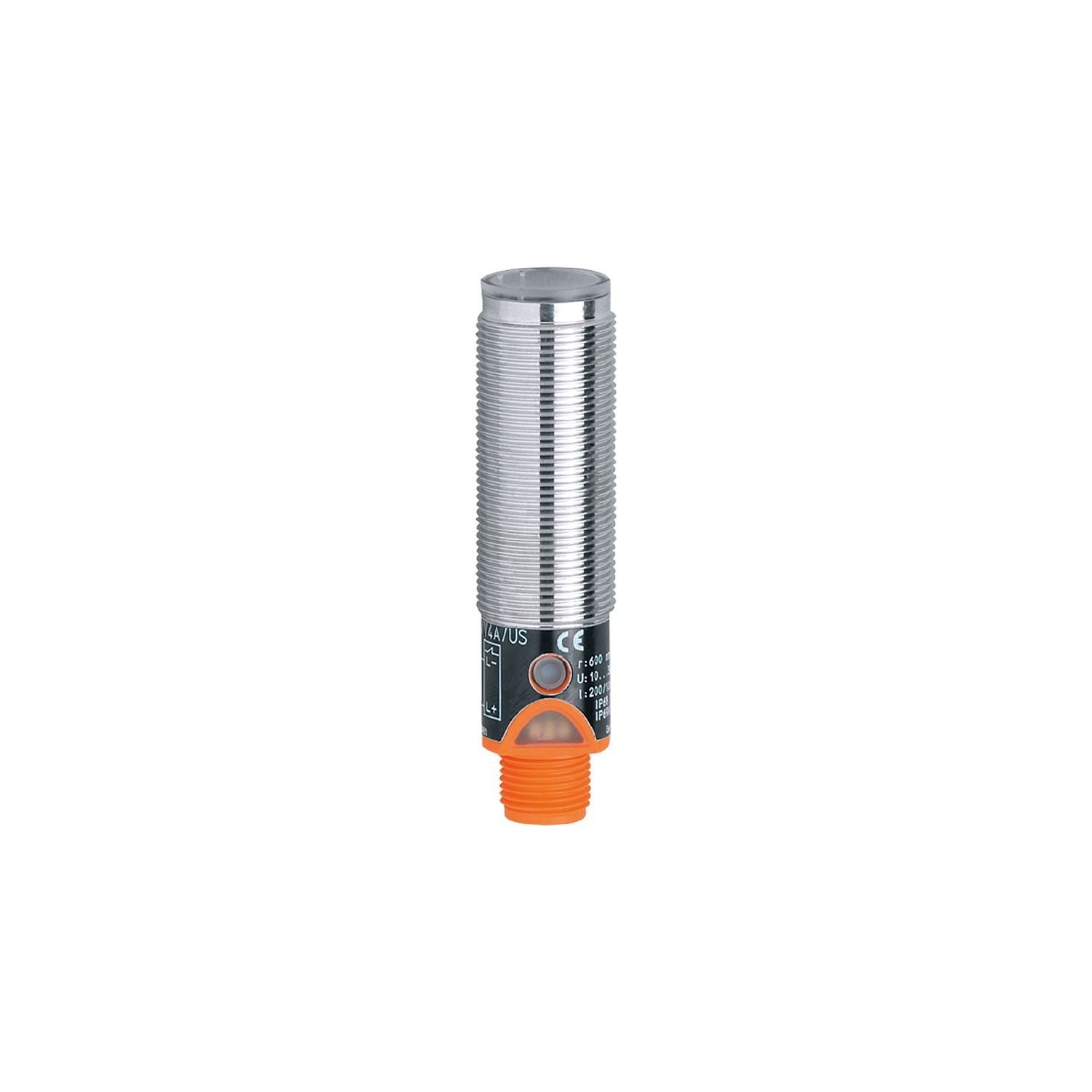

Robust stainless steel housing for use in harsh industrial environments. Precise background suppression. Intuitive setting of the sensitivity via pushbutton. Programmable light-on/dark-on mode. LED display to check operation, switching status and function
Type of light
red light
Housing
threaded type
Special feature
Gold-plated contacts; Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...36 DC
Current consumption [mA]
< 40
Protection class
II
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
660
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
150;(200 (...60 °C))
Switching frequency DC [Hz]
250
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [mm]
30...130;(white paper 200 x 200 mm 90% remission)
Range adjustable
yes
Max. light spot diameter [mm]
12
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Operating conditions
Ambient temperature [°C]
-20...80
Protection
IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
521
Weight [g]
60
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 70.5
Thread designation
M18 x 1
Materials
stainless steel (1.4404 / 316L); PBT
Lens material
PMMA
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Accessories
Items supplied
lock nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
Note : range % = setting in % of the range
