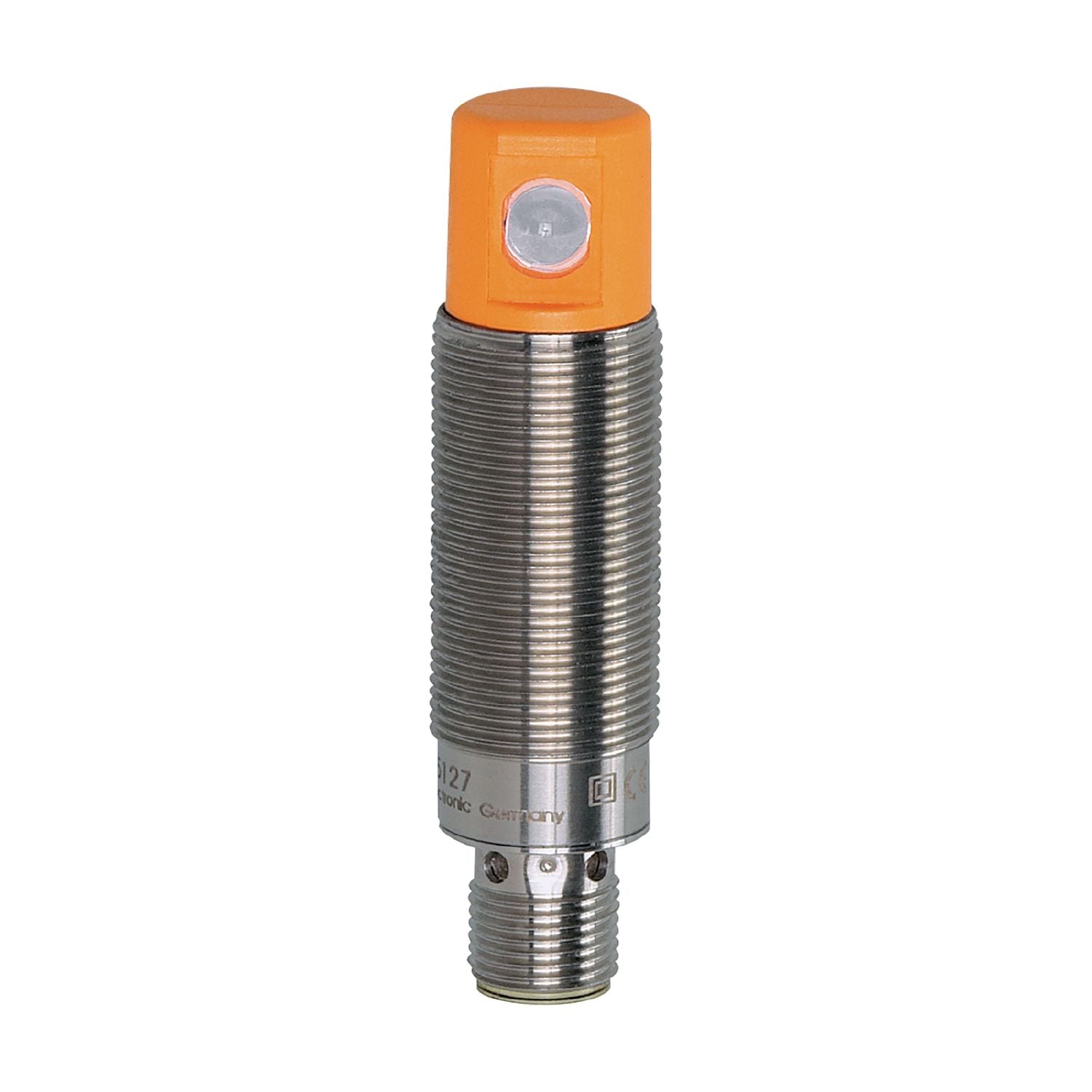

IFM OG5128 - Through-beam sensor receiver OGE-DPKG/US/90°

Particularly space-saving design with light emission on the side.
For use where space is restricted.
Ready for operation immediately thanks to fixed setting.
Robust housing for use in harsh industrial environments.
Very long range

Type of light	red light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 12
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 9
Range adjustable	no

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 68

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	953

Weight [g]	58.4
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 59.3
Thread designation	M18 x 1
Materials	stainless steel; ABS
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	Nuts: 2 lock washers: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
