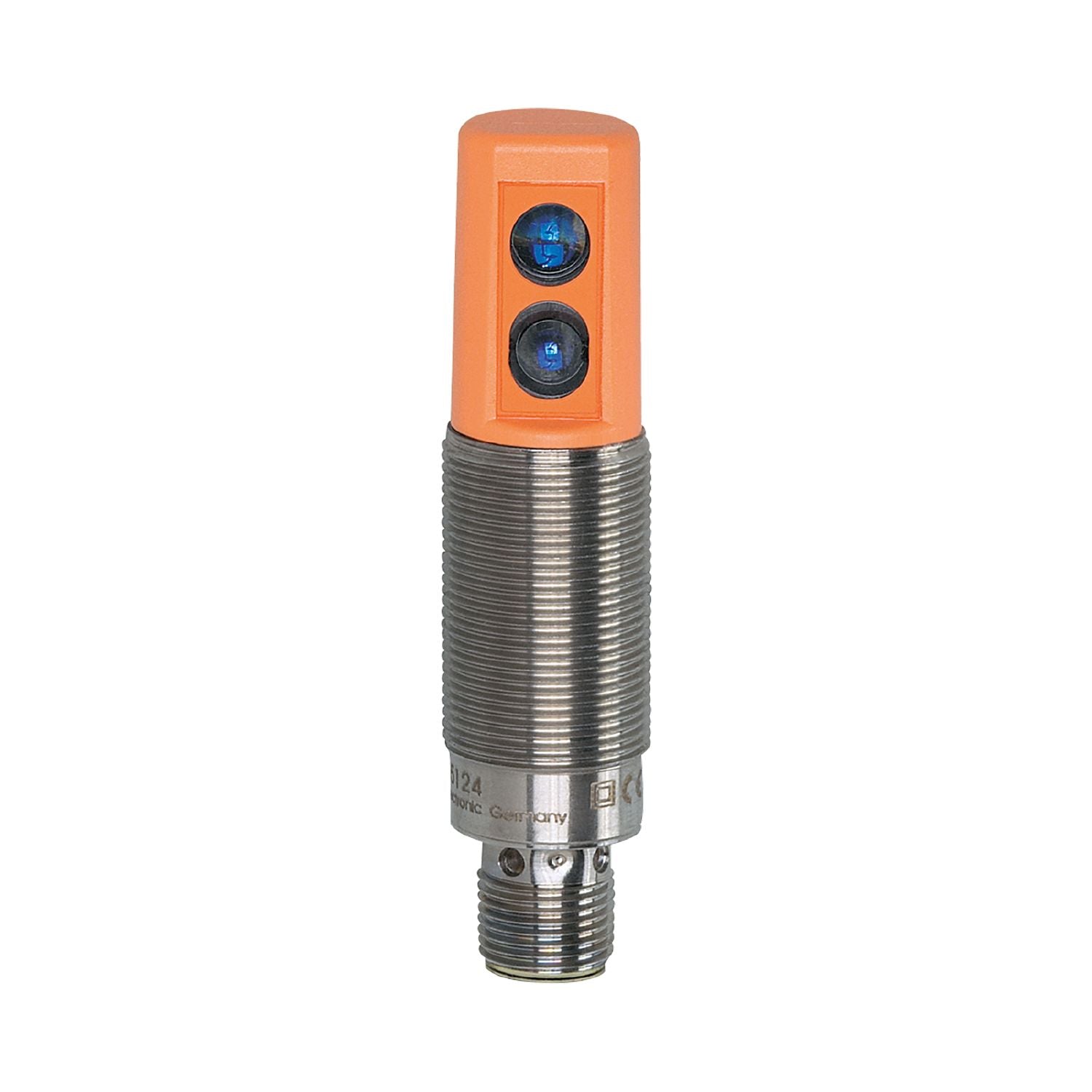

IFM OG5130 - Diffuse reflection sensor with background suppression OGH-CPKG/US/90°/70MM

Particularly space-saving design with light emission on the side.
For use where space is restricted.
Ready for operation immediately thanks to fixed setting.
Simple alignment due to visible red light.
Precise background suppression

Type of light	red light
Housing	threaded type

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	25
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	625

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	< 70;(white paper 200 x 200 mm 90% remission)
Range adjustable	no
Max. light spot diameter [mm]	16
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 68

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	492

Weight [g]	51.2
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 65
Thread designation	M18 x 1
Materials	stainless steel; ABS
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	Nuts: 2 lock washers: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
