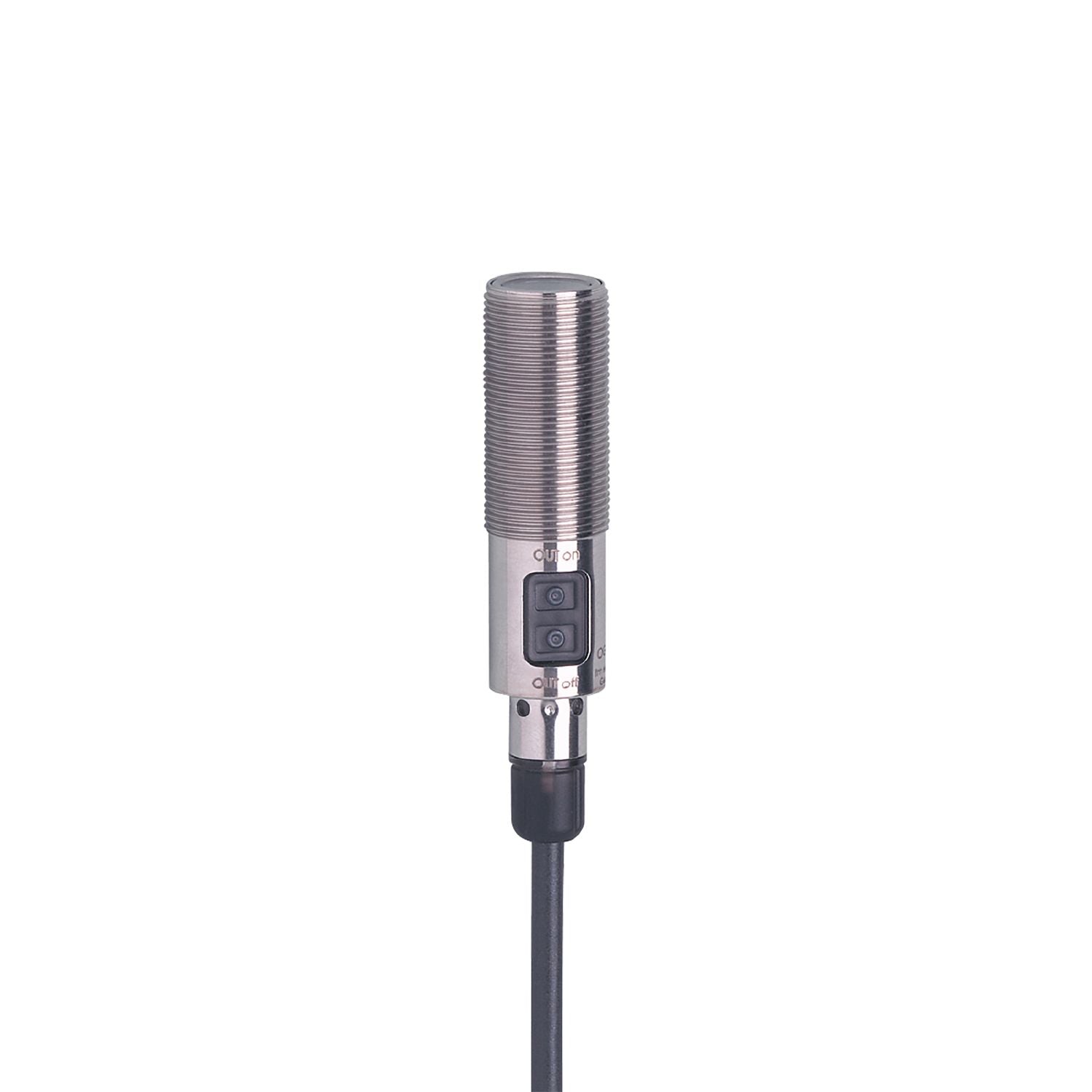

IFM OGE502 - Through-beam sensor receiver OGE-FPKG/2M

Robust stainless steel housing for use in harsh industrial environments.
Very long range.
Intuitive setting of sensitivity and output function via pushbutton.
Wide range of fixing components for quick and easy mounting.
Excellent price/performance ratio

Type of light	red light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	11
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150;(200 (...60 °C))
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 25
Factory setting	dark-on mode
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	786

Weight [g]	124.7
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 80.4
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²
