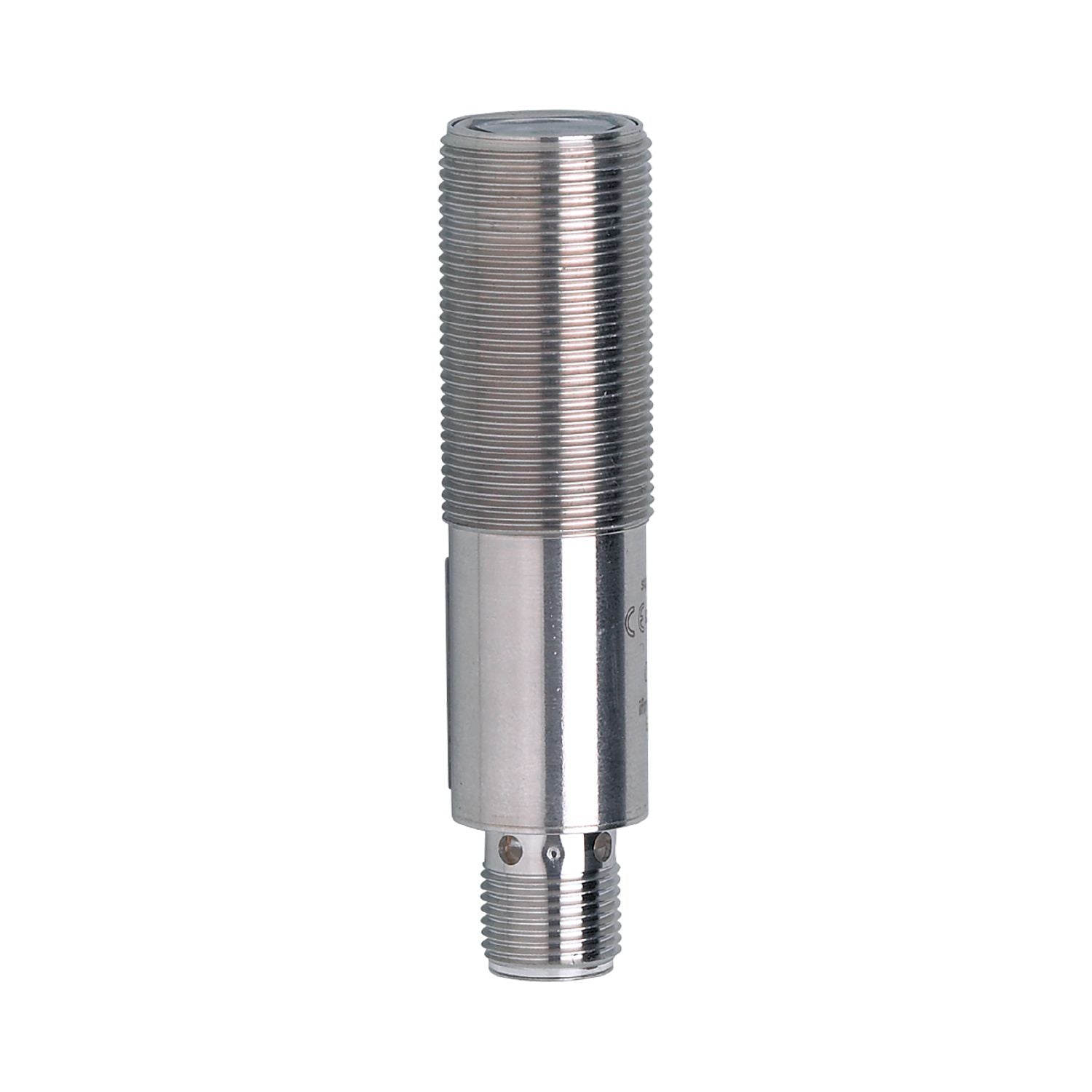

IFM OGE702 - Through-beam laser sensor receiver OGELDPKG/US100

Reliable detection of tiny objects.
Robust stainless steel housing for use in harsh industrial environments.
Very long range.
Intuitive setting of sensitivity and output function via pushbutton.
Excellent price/performance ratio

Type of light	red light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	11
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Typ. lifetime [h]	50000

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 60
Range adjustable	yes
Diameter of the smallest detectable object [mm]	3;(60 m)

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	786

Weight [g]	62.8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 72
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); PA; Sealing: EPDM
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
