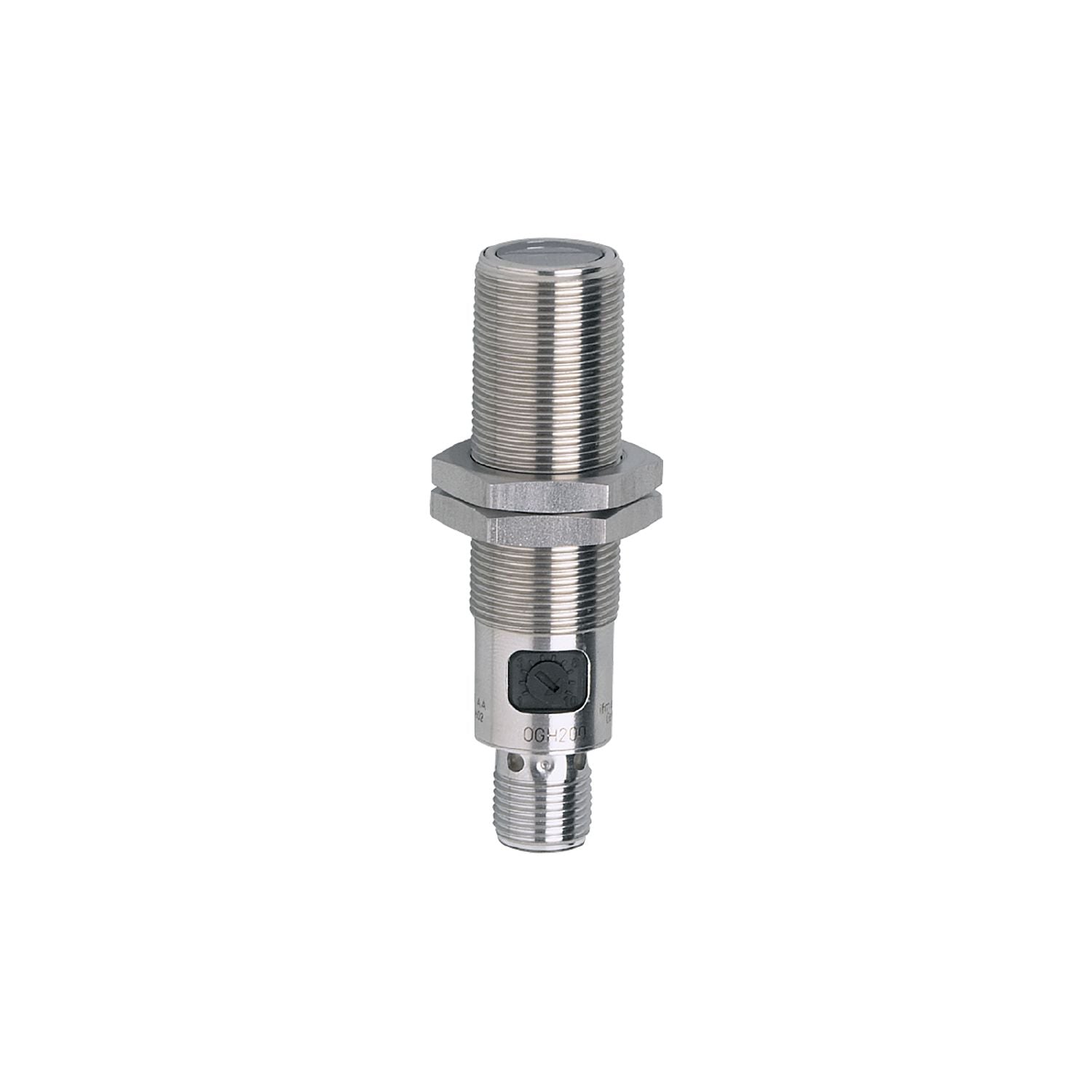

Robust stainless steel housing for use in harsh industrial environments. Precise background suppression. Intuitive setting of the sensitivity via potentiometer. Wide range of fixing components for quick and easy mounting. Excellent price/performance ratio
Type of light
red light
Housing
threaded type
Special feature
Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...36 DC
Current consumption [mA]
25
Protection class
II
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
624
Outputs
Electrical design
PNP
Output function
light-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [mm]
15...250;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]
15...250
Range on grey object (18 % remission) [mm]
15...230
Range on black object (6 % remission) [mm]
15...160
Range adjustable
yes
Max. light spot diameter [mm]
21
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
339
Weight [g]
53.1
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 72
Thread designation
M18 x 1
Materials
housing: stainless steel; operator interface: TPE
Lens material
PMMA
Displays / operating elements
Display
switching status
1 x LED, yellow
Operating elements
potentiometer
Accessories
Items supplied
lock nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH200-01 — 13.04.2023 —
