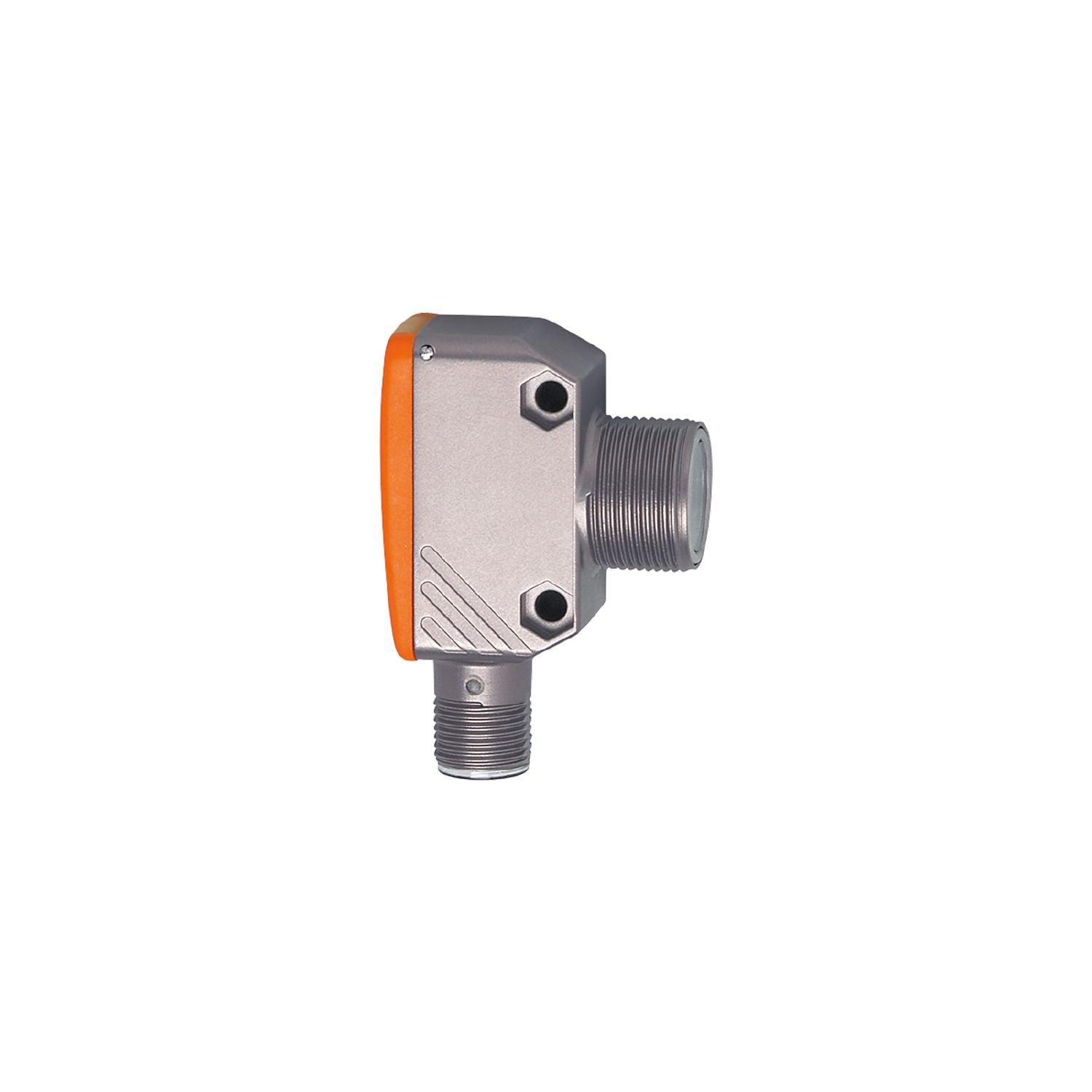

IFM OGH280 - Diffuse reflection sensor with background suppression OGH-HPKG/US/CUBE/100MM

Robust rectangular metal housing with M18 thread on the side.
Particularly space-saving design for use where space is restricted.
Precise background suppression.
Ready for operation immediately thanks to fixed setting.
Excellent price/performance ratio

Type of light	red light
Housing	rectangular with M18 thread

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Rated insulation voltage [V]	32
Current consumption [mA]	25
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300
Type of light	red light
Wave length [nm]	645

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	< 100;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]	< 100
Range on grey object (18 % remission) [mm]	< 100
Range on black object (6 % remission) [mm]	< 100
Range adjustable	no
Max. light spot diameter [mm]	7
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	10
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 1131
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	782
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	59.5
Housing	rectangular with M18 thread
Dimensions [mm]	52.6 x 19.1 x 35.9
Thread designation	M18 x 1
Materials	diecast zinc; PEI
Lens material	PEI
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	lock nut: 1

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
