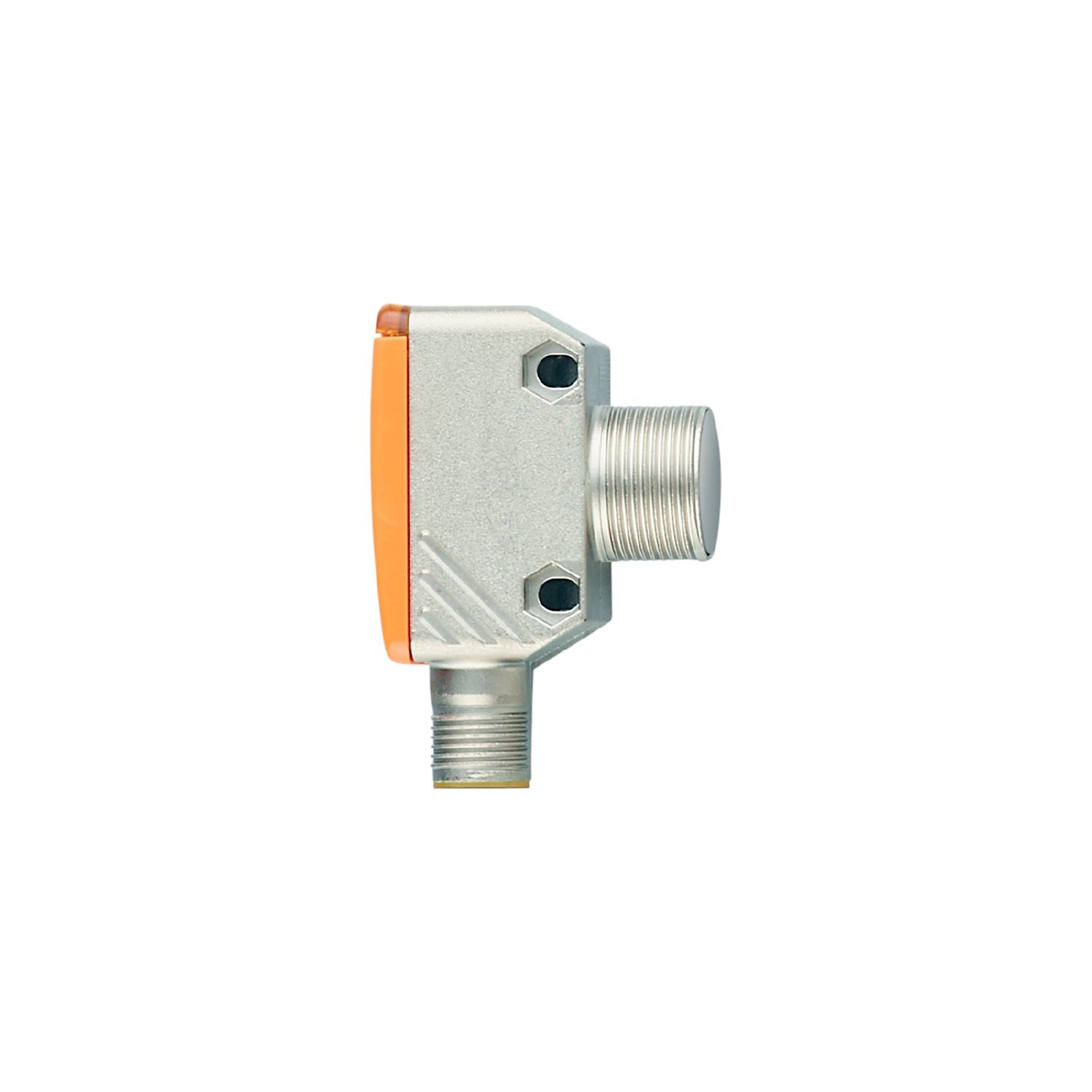

IFM OGH283 - Diffuse reflection sensor with background suppression OGH-HNKG/US/CUBE/200MM

IFM OGH283 - Diffuse reflection sensor with background suppression OGH-HNKG/US/CUBE/200MM

€173,12
€173,12
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: OGH283

Robust rectangular metal housing with M18 thread on the side.
Particularly space-saving design for use where space is restricted.
Precise background suppression.
Ready for operation immediately thanks to fixed setting.
Excellent price/performance ratio
Type of light red light
Housing rectangular with M18 thread
Special feature Background suppression
Function principle Diffuse reflection sensor
Operating voltage [V] 10...30 DC
Current consumption [mA] 25
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 645
Outputs
Electrical design NPN
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] < 200;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm] < 200
Range on grey object (18 % remission) [mm] < 200
Range on black object (6 % remission) [mm] < 190
Range adjustable no
Max. light spot diameter [mm] 13
Light spot dimensions refer to at maximum range
Background suppression available yes
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode yes
Required master port type A
Min. process cycle time [ms] 10
IO-Link process data (cyclical)
function bit length
process value 16
device status 4
binary switching information 1
IO-Link functions (acyclical) application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operation DeviceID
default 1139
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -40...60
Protection IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 782
UL approval
Ta -25...60 °C
Enclosure type Type 1
power supply Class 2
File number UL E174191
Weight [g] 58
Housing rectangular with M18 thread
Dimensions [mm] 52.6 x 19.1 x 35.9
Thread designation M18 x 1
Materials diecast zinc; PEI
Lens material
PEI
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Accessories
Items supplied
lock nut: 1
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Other data
Repeatability / precision: 6 σ
repeatability of the measured values
Abstand white (90 % remission) black (6 %...90 % remission)
20 mm 0.5 mm 1.0 mm
50 mm 0.8 mm 2.0 mm
100 mm 1.5 mm 4.5 mm
150 mm 3.0 mm 9.0 mm
200 mm 6.0 mm 20.0 mm
accuracy
Abstand white (90 % remission) black (6 %...90 % remission)
20 mm ± 2.0 mm ± 2.5 mm
50 mm ± 3.5 mm ± 4.5 mm
100 mm ± 6.0 mm ± 7.5 mm
150 mm ± 7.5 mm ± 11.0 mm
200 mm ± 10.0 mm ± 17.0 mm
The values apply at
Extraneous light on the object < 10 klx
constant ambient conditions 23 °C / 960 hPa
minimum power-on time in minutes 10
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH283-04 — 13.04.2023 —
