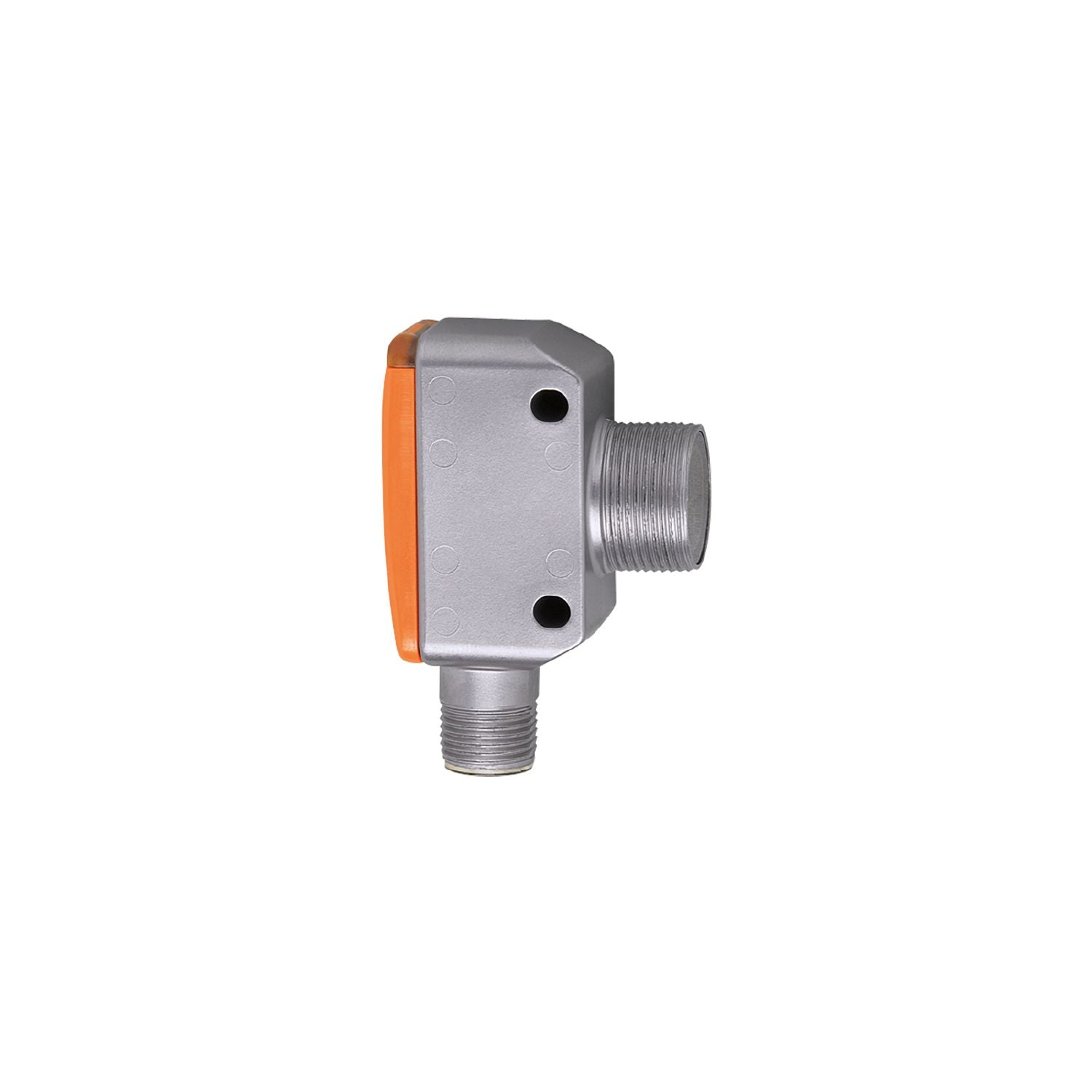

IFM OGH383 - Diffuse reflection sensor with background suppression OGH-HNKG/US/V4A/CUBE/200MM

IFM OGH383 - Diffuse reflection sensor with background suppression OGH-HNKG/US/V4A/CUBE/200MM

€179,69
€179,69
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: OGH383

Robust rectangular stainless steel housing with M18 thread on the side.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High protection rating for the requirements of the food and beverage industry.
Ready for operation immediately thanks to fixed setting.
Precise background suppression
Type of light red light
Housing rectangular with M18 thread
Special feature Background suppression
Function principle Diffuse reflection sensor
Operating voltage [V] 10...30 DC
Current consumption [mA] 25
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 645
Outputs
Electrical design NPN
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] < 200;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm] < 200
Range on grey object (18 % remission) [mm] < 200
Range on black object (6 % remission) [mm] < 190
Range adjustable no
Max. light spot diameter [mm] 13
Light spot dimensions refer to at maximum range
Background suppression available yes
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel
SIO mode yes
Required master port type A
Min. process cycle time [ms] 10
IO-Link process data (cyclical)
function bit length
process value 16
device status 4
binary switching information 1
IO-Link functions (acyclical) application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operation DeviceID
default 1139
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...80
Protection IP 65; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 782
UL approval
Ta -25...80 °C
Enclosure type Type 1
power supply Class 2
File number UL E174191
Weight [g] 74.5
Housing rectangular with M18 thread
Dimensions [mm] 52.9 x 20 x 35.9
Thread designation M18 x 1
Materials 1.4542 (17-4 PH / 630); PEI
Lens material
PEI
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Accessories
Items supplied
lock nut: 1, stainless steel
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Other data
Repeatability / precision: 6 σ
repeatability of the measured values
Abstand white (90 % remission) black (6 %...90 % remission)
20 mm 0.5 mm 1.0 mm
50 mm 0.8 mm 2.0 mm
100 mm 1.5 mm 4.5 mm
150 mm 3.0 mm 9.0 mm
200 mm 6.0 mm 20.0 mm
accuracy
Abstand white (90 % remission) black (6 %...90 % remission)
20 mm ± 2.0 mm ± 2.5 mm
50 mm ± 3.5 mm ± 4.5 mm
100 mm ± 6.0 mm ± 7.5 mm
150 mm ± 7.5 mm ± 11.0 mm
200 mm ± 10.0 mm ± 17.0 mm
The values apply at
Extraneous light on the object < 10 klx
constant ambient conditions 23 °C / 960 hPa
minimum power-on time in minutes 10
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH383-01 — 13.04.2023 —
