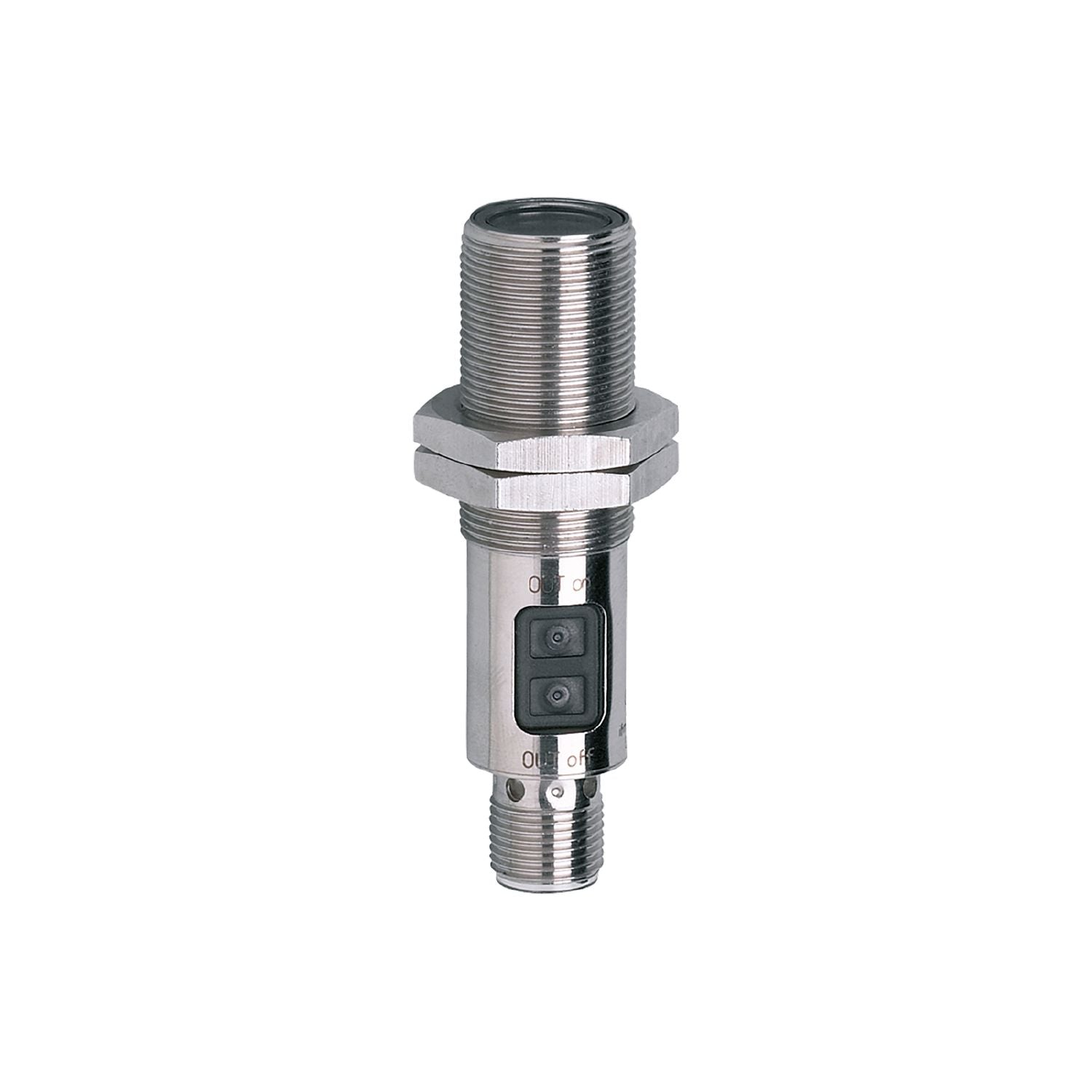

IFM OGH503 - Diffuse reflection sensor with background suppression OGH-FPKG/US100

Robust stainless steel housing for use in harsh industrial environments.
Precise background suppression.
Intuitive setting of the sensitivity via pushbutton.
Programmable light-on/dark-on mode.
Wide range of fixing components for quick and easy mounting

Type of light	red light
Housing	threaded type

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	25
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150;(200 (...60 °C))
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	15...300;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]	15...300
Range on grey object (18 % remission) [mm]	15...290
Range on black object (6 % remission) [mm]	15...190
Factory setting	light-on mode
Range adjustable	yes
Max. light spot diameter [mm]	25
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	362

Weight [g]	61.6
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 72
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; LCP; FKM; TPU
Lens material	glass

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

accuracy graph	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , background white (90 % remission) 2 = object grey (18 % remission) ,background white (90 % remission) 3 = object white (90 % remission) ,background white (90 % remission)
