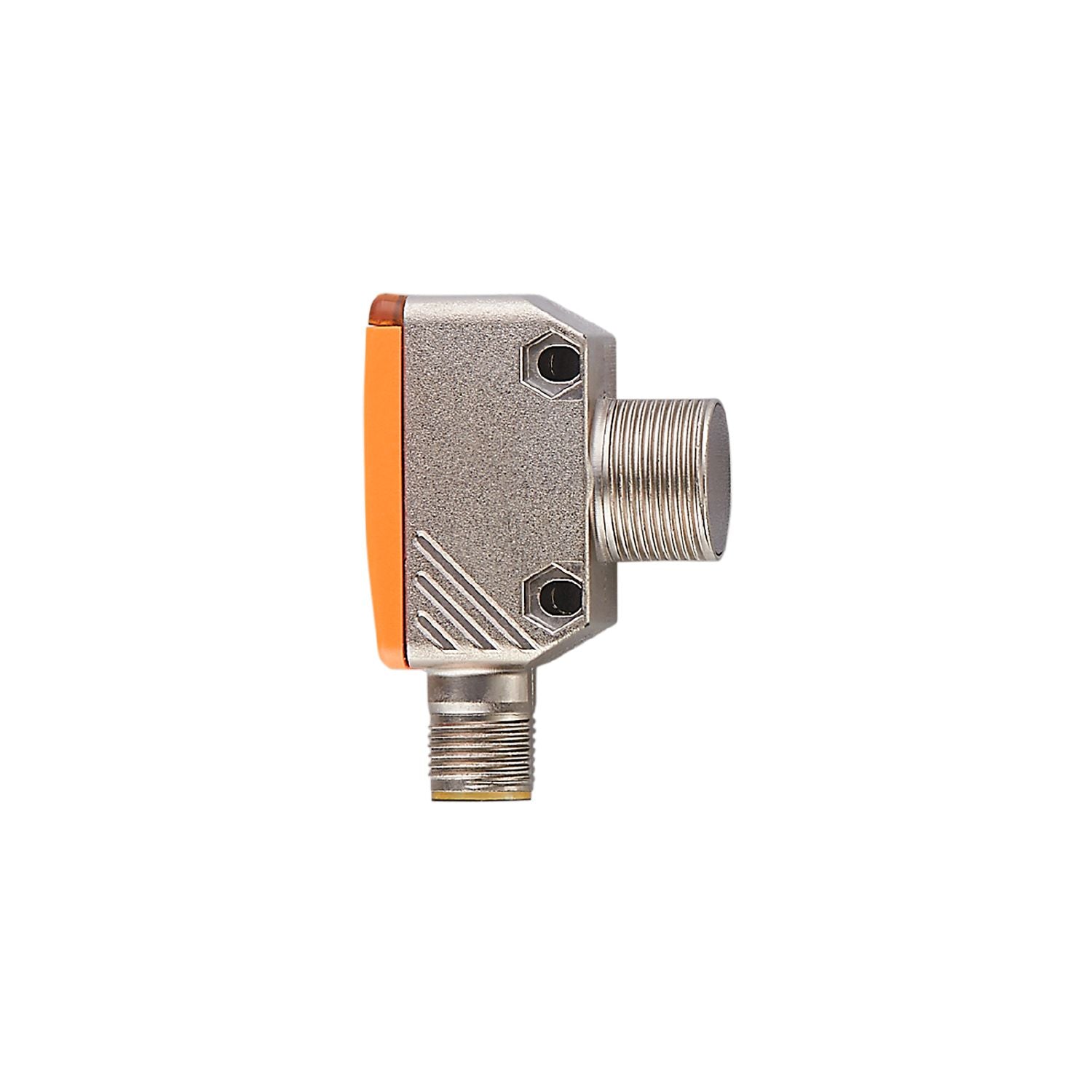

Robust rectangular metal housing with M18 thread on the side. Particularly space-saving design for use where space is restricted. Precise background suppression. Programmable light-on/dark-on mode. Intuitive setting of the sensitivity via pushbutton
Type of light
red light
Housing
rectangular with M18 thread
Special feature
Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
25
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
645
Outputs
Electrical design
NPN
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [mm]
15...200;(white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]
15...200
Range on grey object (18 % remission) [mm]
15...200
Range on black object (6 % remission) [mm]
15...200
Range adjustable
yes
Max. light spot diameter [mm]
13
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
10
IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
1
IO-Link functions (acyclical)
application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operation
DeviceID
default
1165
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-25...60
Storage temperature [°C]
-40...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
782
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
power supply
Class 2
File number UL
E174191
Weight [g]
60
Housing
rectangular with M18 thread
Dimensions [mm]
52.6 x 19 x 35.6
Thread designation
M18 x 1
Materials
diecast zinc; PEI
Lens material
PEI
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Accessories
Items supplied
lock nut: 1
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
Other data
Repeatability / precision: 6 σ
repeatability of the measured values
Abstand
white (90 % remission)
black (6 %...90 % remission)
20 mm
0.5 mm
1.0 mm
50 mm
0.8 mm
2.0 mm
100 mm
1.5 mm
4.5 mm
150 mm
3.0 mm
9.0 mm
200 mm
6.0 mm
20.0 mm
accuracy
Abstand
white (90 % remission)
black (6 %...90 % remission)
20 mm
± 2.0 mm
± 2.5 mm
50 mm
± 3.5 mm
± 4.5 mm
100 mm
± 6.0 mm
± 7.5 mm
150 mm
± 7.5 mm
± 11.0 mm
200 mm
± 10.0 mm
± 17.0 mm
The values apply at
Extraneous light on the object
< 10 klx
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
10
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH581-02 — 13.04.2023 —
