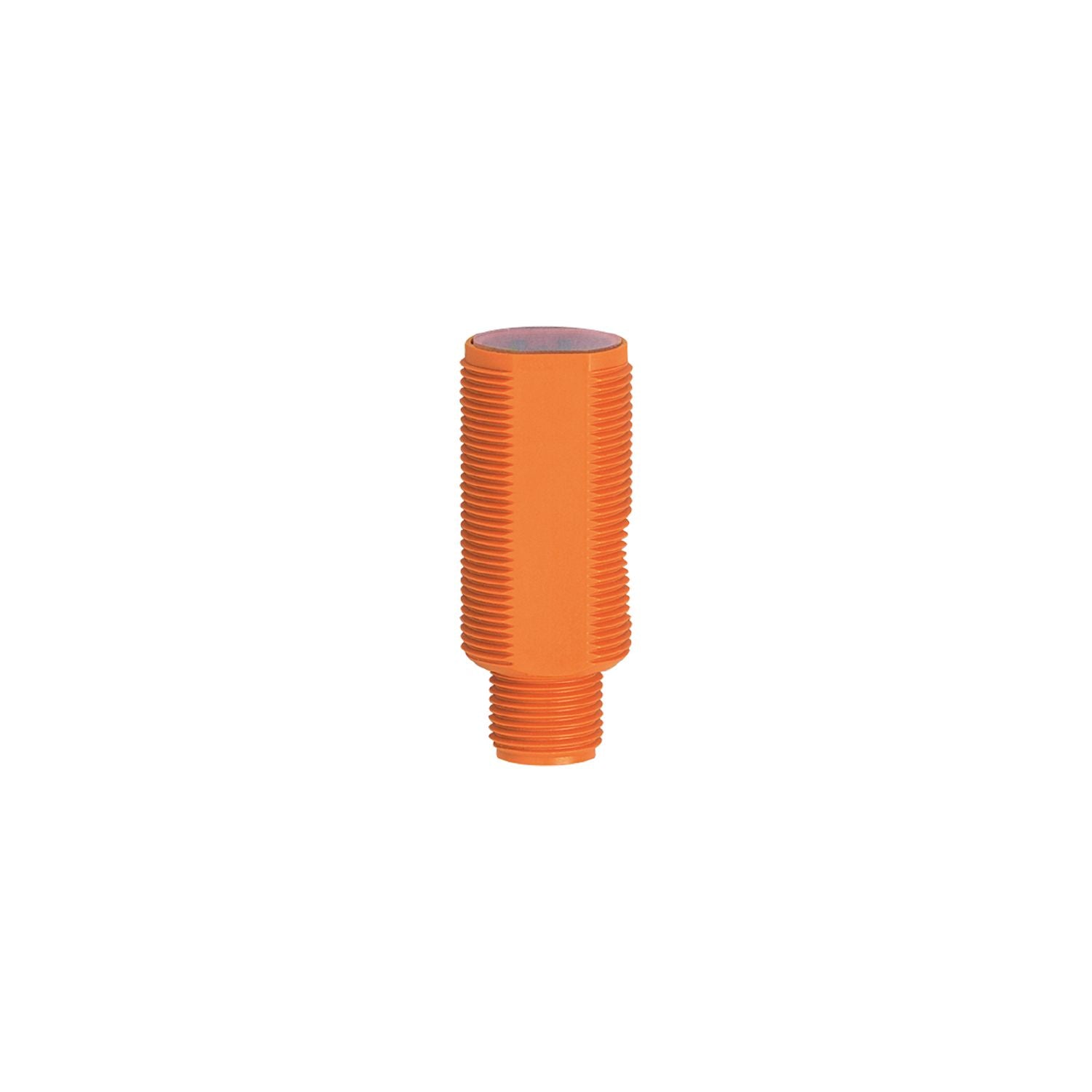

IFM OGP101 - Retro-reflective sensor OGP-HPKG/US

Very long range.
For use in conveying and materials handling.
Ready for operation immediately thanks to fixed setting.
Excellent price/performance ratio.
Low-cost alternative to units with metal housing

Type of light	red light
Housing	threaded type

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	20
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	645

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Range referred to prismatic reflector [m]	0.05...2.5;(Prismatic reflector Ø 80 E20005)
Range adjustable	no
Max. light spot diameter [mm]	200
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67;(in conjunction with a corresponding connector)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1173

Weight [g]	14.6
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 44
Thread designation	M18 x 1
Materials	housing: ABS
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph	x: distance [mm] y: excess gain factor
