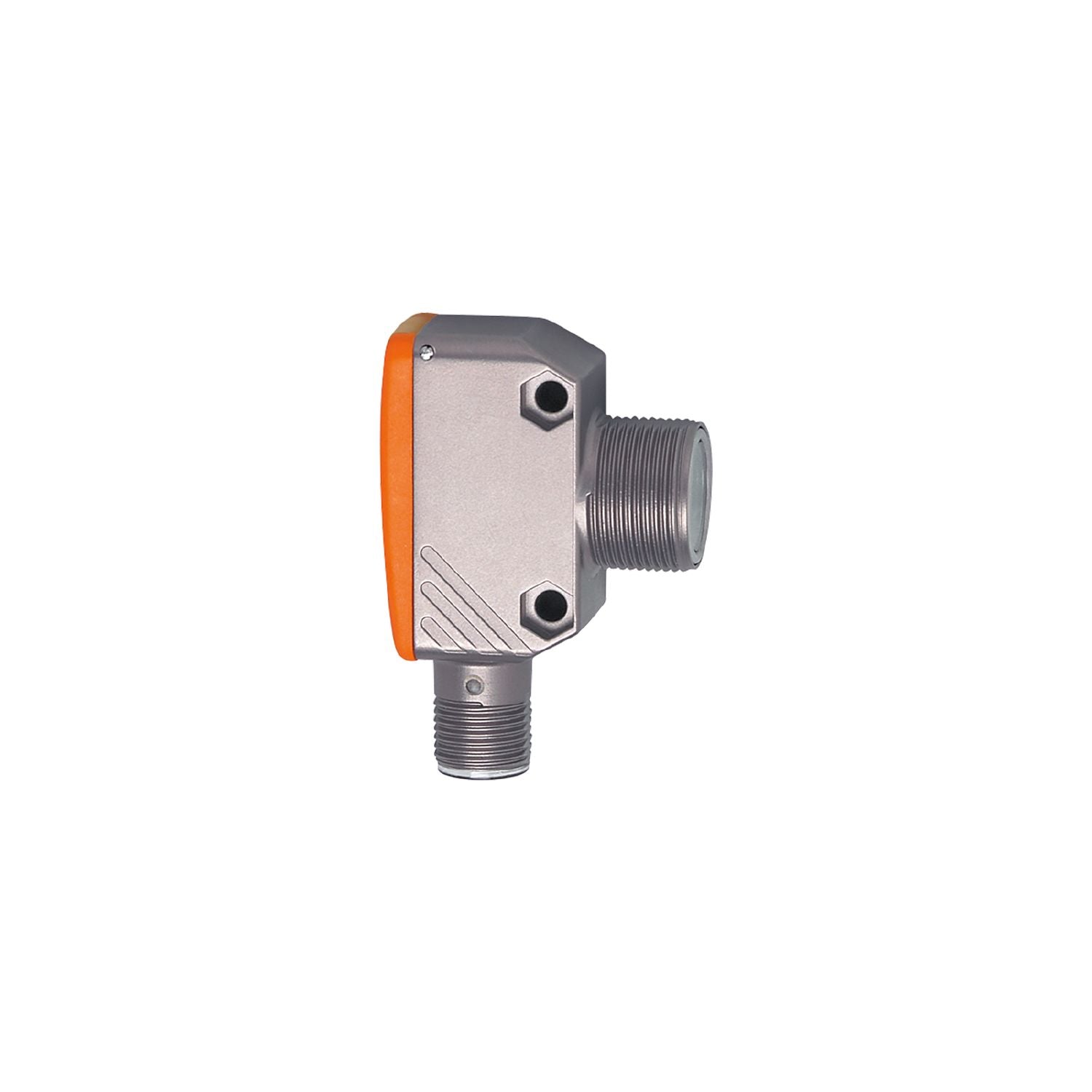

IFM OGP280 - Retro-reflective sensor OGP-DPKG/US/CUBE

Robust rectangular metal housing with M18 thread on the side.
Particularly space-saving design for use where space is restricted.
Very long range.
Ready for operation immediately thanks to fixed setting.
Clearly visible LEDs for indicating operation and switching status

Type of light	red light
Housing	rectangular with M18 thread

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Rated insulation voltage [V]	32
Current consumption [mA]	21
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300
Type of light	red light
Wave length [nm]	662

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range referred to prismatic reflector [m]	0.1...4;(Prismatic reflector Ø 80 E20005)
Max. light spot diameter [mm]	160
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	2.5
IO-Link process data (cyclical)	function bit length device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 1134
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	905
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	58.5
Housing	rectangular with M18 thread
Dimensions [mm]	52.6 x 19 x 36
Thread designation	M18 x 1
Materials	diecast zinc; PEI
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	lock nut: 1

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
