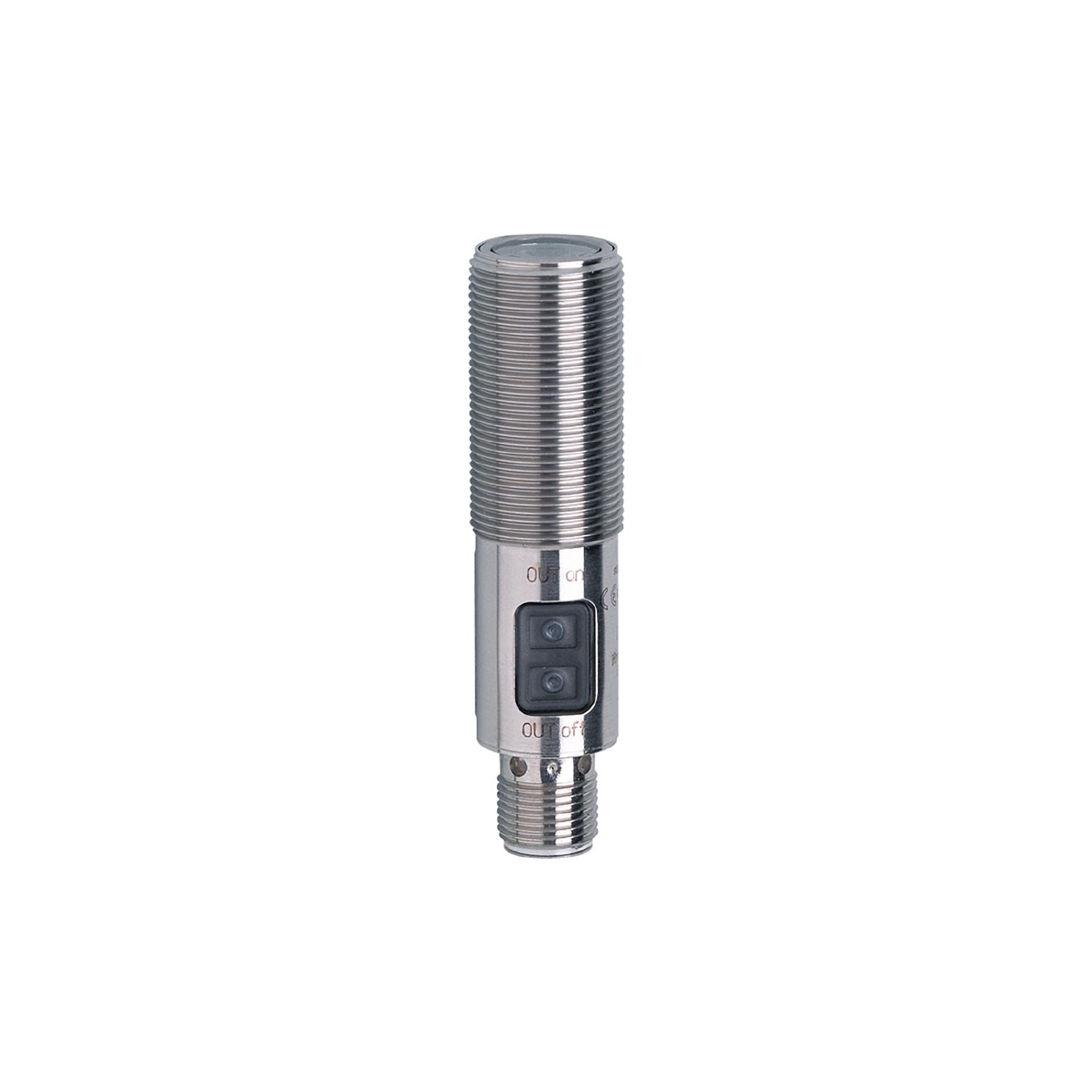

Reliable detection of tiny objects. Robust stainless steel housing for use in harsh industrial environments. Laser protection class 1 for the requirements of the automotive industry. Simple alignment due to visible laser light spot. Excellent price/performance ratio
Type of light
red light
Laser protection class
1
Housing
threaded type
Special feature
polarisation filter
Function principle
Retro-reflective sensor
Operating voltage [V]
10...36 DC
Current consumption [mA]
15
Protection class
II
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
655
Typ. lifetime [h]
50000
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range referred to prismatic reflector [m]
0.2...2;(Prismatic reflector Ø 80 E20005)
Factory setting
dark-on mode
Range adjustable
yes
Diameter of the smallest detectable object [mm]
1.5;(1 m; 2 m: 2)
Max. light spot diameter [mm]
5
Light spot dimensions refer to
at maximum range
Polarisation filter available
yes
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
x:
Abstand [mm]
y:
Funktionsreservefaktor
