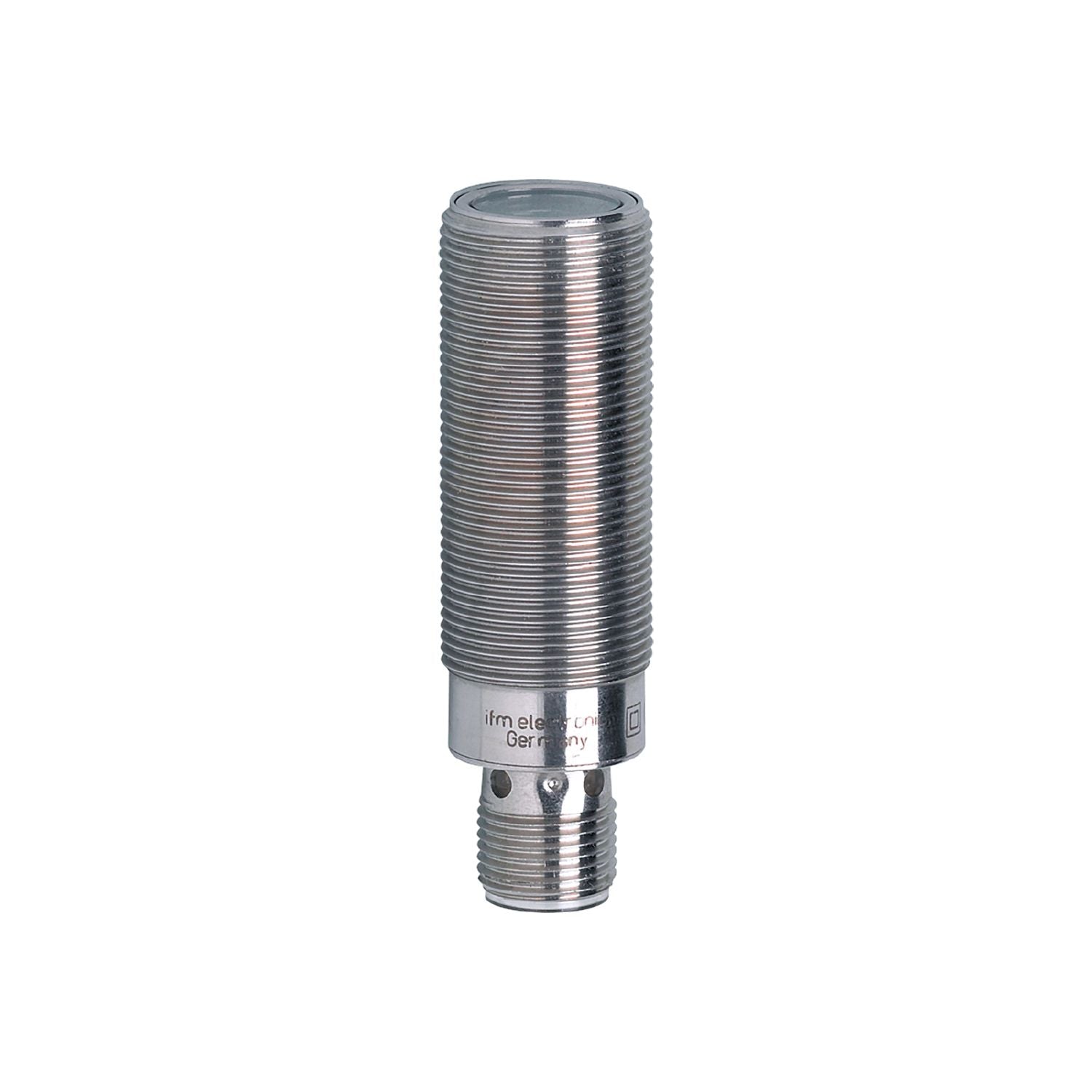

IFM OGS200 - Through-beam sensor transmitter OGS-OOKG/US100

Robust stainless steel housing for use in harsh industrial environments.
Very long range.
Ready for operation immediately thanks to fixed setting.
Wide range of fixing components for quick and easy mounting.
Excellent price/performance ratio

Type of light	red light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	15
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 20
Range adjustable	no
Max. light spot diameter [mm]	800
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	755

Weight [g]	49.1
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L)
Lens material	PMMA

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
