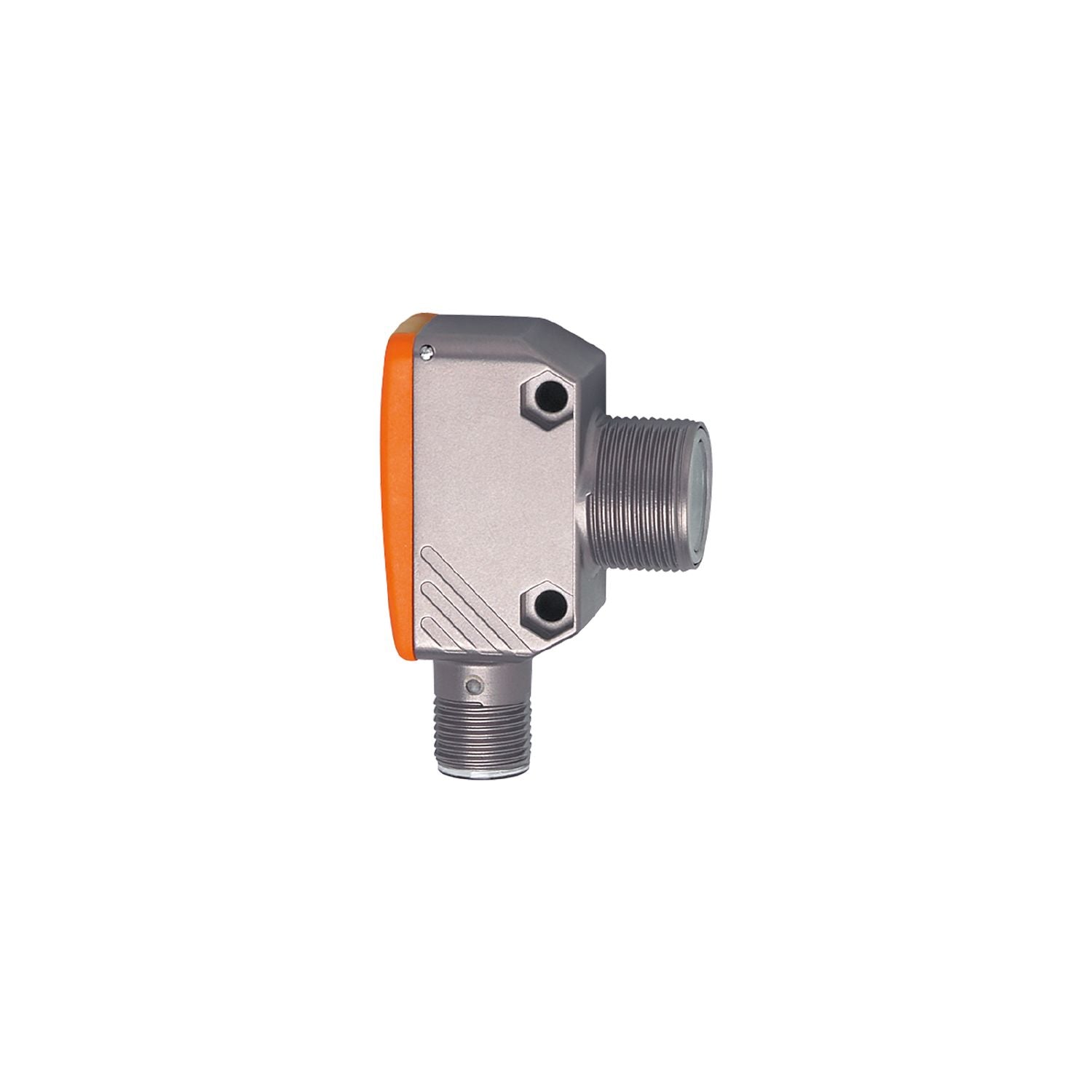

IFM OGS280 - Through-beam sensor transmitter OGS-OOKG/US/CUBE

Robust rectangular metal housing with M18 thread on the side.
Particularly space-saving design for use where space is restricted.
Very long range.
Ready for operation immediately thanks to fixed setting.
Clearly visible LED for indicating the readiness for operation

Type of light	red light
Housing	rectangular with M18 thread

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Voltage rating [V]	32
Current consumption [mA]	17
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300
Type of light	red light
Wave length [nm]	662

Detection zone

Transmitter / receiver	transmitter
Range [m]	20
Max. light spot diameter [mm]	800
Light spot dimensions refer to	at maximum range

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification, Device Diagnosis
SIO mode	no
Required master port type	A
Min. process cycle time [ms]	2.5
IO-Link process data (cyclical)	function bit length device status 4
IO-Link functions (acyclical)	application specific tag; operating hours counter
Supported DeviceIDs	Type of operation DeviceID default 1135
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...60
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1011
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	59.5
Housing	rectangular with M18 thread
Dimensions [mm]	52.6 x 19 x 36
Thread designation	M18 x 1
Materials	diecast zinc; PEI
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nut: 1

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
